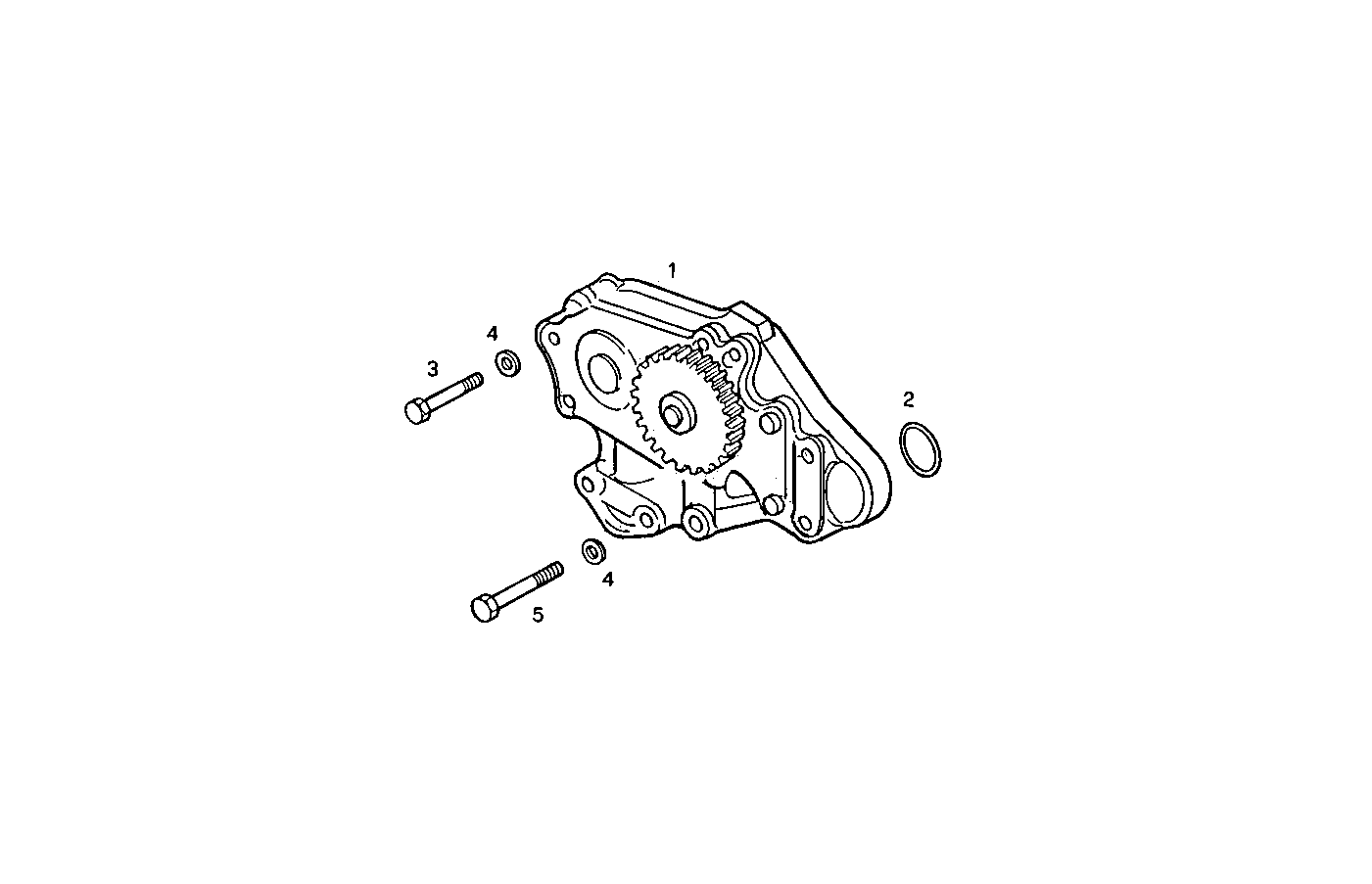

OIL PUMP
Assembly ID: 3000.023
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 61319221 | LUBE OIL PUMP | 1 | ||
| 2 | 17288981 | O-RING | 1 | ||
| 3 | 11288024 | HEXAGON BOLT | 2 | ||
| 4 | 11198374 | SPRING WASHER | 3 | ||
| 5 | 11307024 | SCREW | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8460SRC21.20 | 8460SRC21 | view |
| 8460SRC21.20A001 | 8460SRC21 | view |
| 8460SRC22.00 | 8460SRC22 | view |
| 8460SRC20.00 | 8460SRC20 | view |
| 8460SRC20.10 | 8460SRC20 | view |
| 8460SRC20.20 | 8460SRC20 | view |
| 8460SRC21.00 | 8460SRC21 | view |
| 8460SRC21.10 | 8460SRC21 | view |
| 8460SRC21.20A002 | 8460SRC21 | view |
| 8460SRi10.00 | 8460SRi10 | view |
| 8460SRi11.00 | 8460SRi11 | view |
| 8460SRi11.00A004 | 8460SRi11 | view |
| 8460SRi10.00A016 | 8460SRi10 | view |
| 8460SRE10.00 | 8460SRE10 | view |
| 8460SRE12.00 | 8460SRE12 | view |
| 8460SRi10.00A020 | 8460SRi10 | view |
| 8460M15.12 | 8460M15 | view |
| 8460SM19.12 | 8460SM19 | view |
| 8460SM22.12 | 8460SM22 | view |
| 8460SRM28.12 | 8460SRM28 | view |
| 8460SRE10.00A003 | 8460SRE10 | view |
