OIL PUMP
Assembly ID: 3000.030

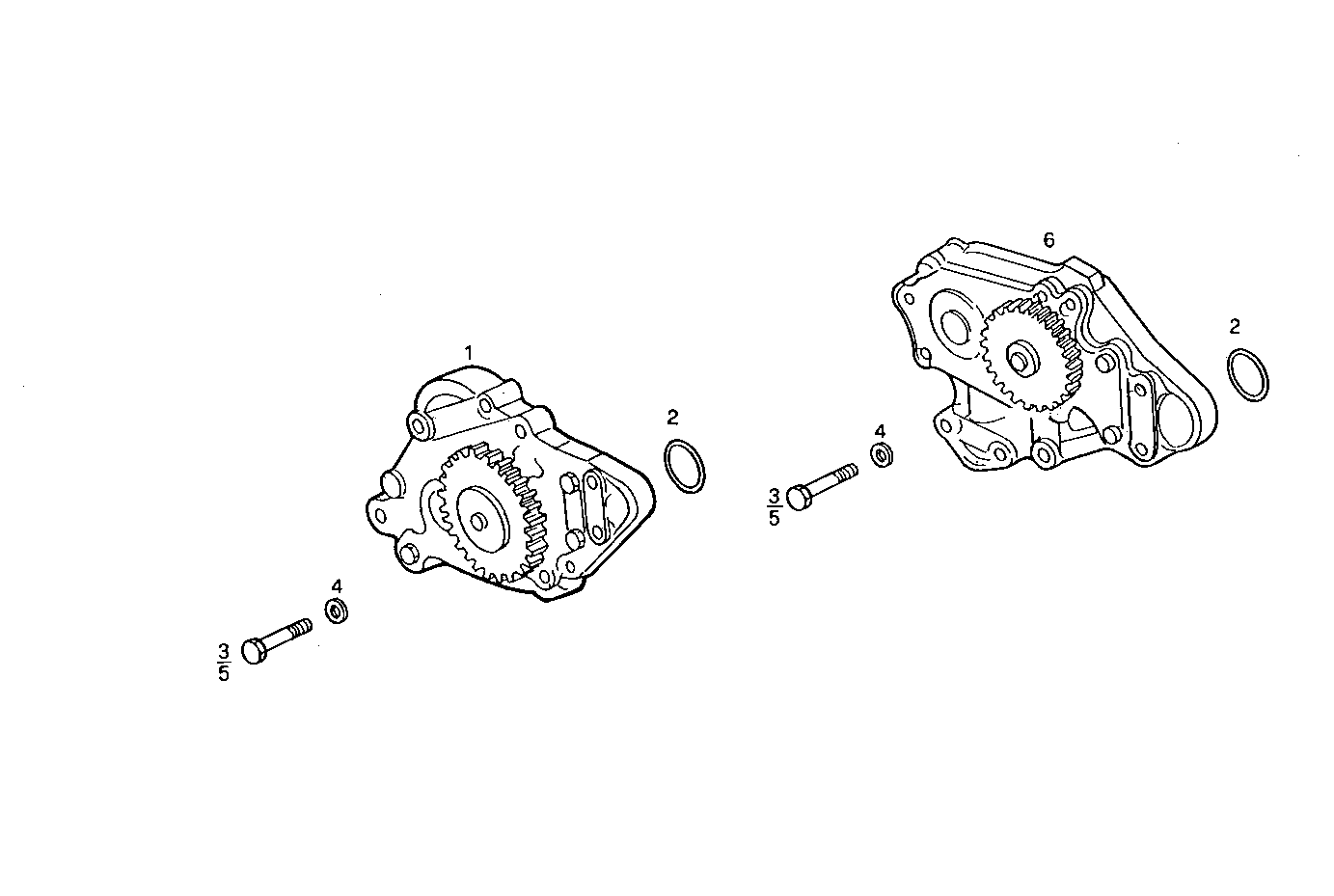

Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 61318396 | LUBE OIL PUMP | 1 | ||
| 2 | 17282381 | O-RING | 2 | ||
| 3 | 11288021 | HEXAGON BOLT | 4 | ||
| 4 | 17090274 | WASHER | 6 | ||
| 5 | 11307021 | HEXAGON BOLT | 2 | ||
| 6 | 61319221 | LUBE OIL PUMP | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8460SRi10.00 | 8460SRi10 | view |
| 8460SRi11.00 | 8460SRi11 | view |
| 8460SRi11.00A004 | 8460SRi11 | view |
| 8460SRi10.00A016 | 8460SRi10 | view |
| 8460M15.12 | 8460M15 | view |
| 8460SM19.12 | 8460SM19 | view |
| 8460SM22.12 | 8460SM22 | view |
| 8460SRM28.12 | 8460SRM28 | view |
| 8460SM19.13 | 8460SM19 | view |
| 8460SRM28.13 | 8460SRM28 | view |
| 8460SM19.13A001 | 8460SM19 | view |
