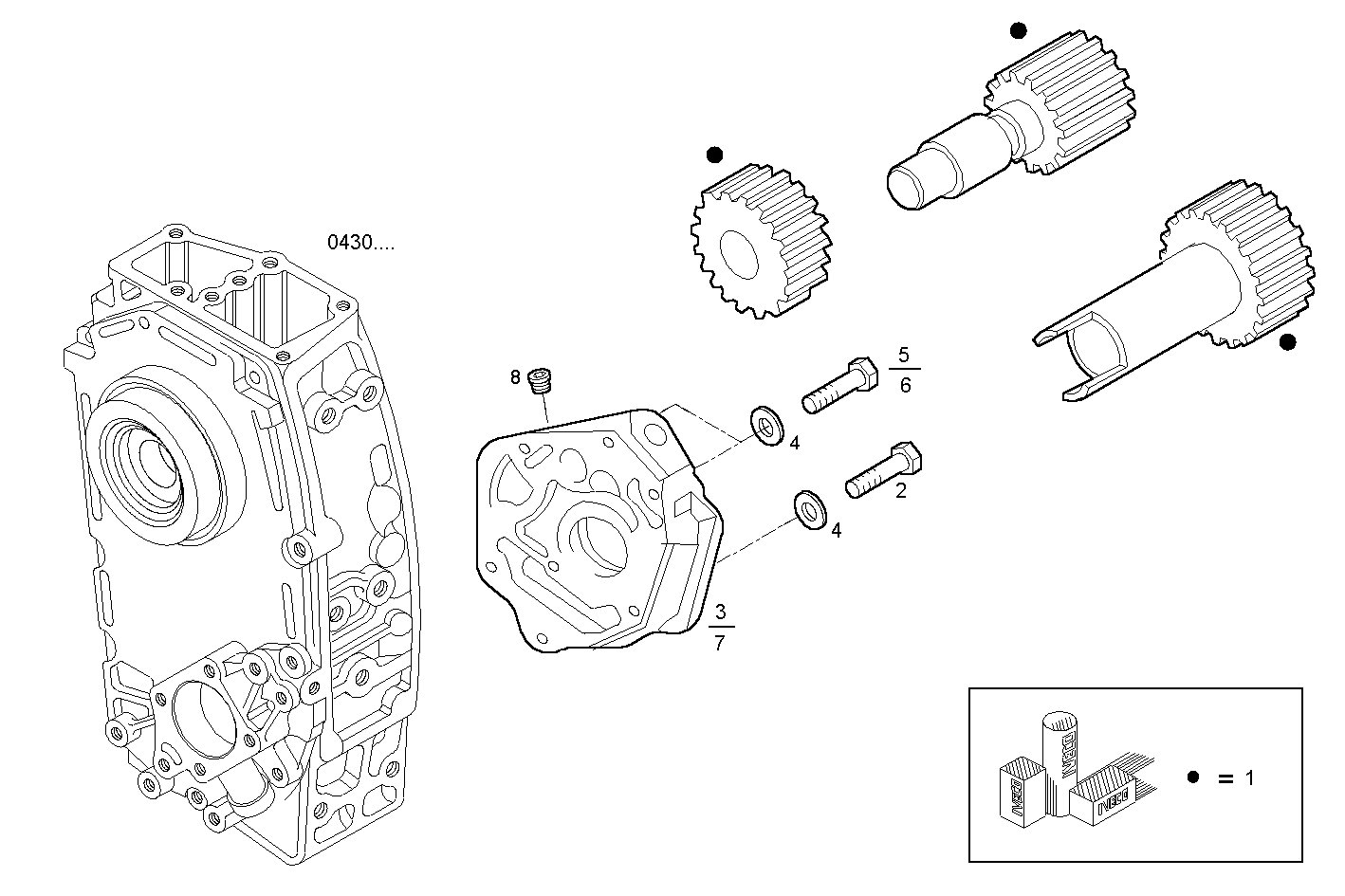

OIL PUMP
Assembly ID: 3000.043
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 2992322 | KIT-OIL PUMP GEARS | 1 | ||
| 2 | 16043724 | HEXAGON BOLT | 1 | ||
| 3 | 500376007 | COVER | 1 | ||
| 4 | 17089474 | SPRING WASHER | 7 | ||
| 5 | 16605934 | HEXAGON BOLT | 4 | ||
| 6 | 16606124 | HEXAGON BOLT | 2 | ||
| 7 | 500334155 | COVER | 1 | ||
| 8 | 14326001 | THREADED PLUG | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8140.43.3941 | 8140.43 | view |
| 8140SRC30.00 | 8140SRC30 | view |
| 8140SRC21.00 | 8140SRC21 | view |
| 8140SRM15.10 | 8140SRM15 | view |
| 8140SRM15.11 | 8140SRM15 | view |
| 8140.43C.3941 | 8140.43 | view |
| 8140.43P.3941 | 8140.43 | view |
| 8140.43C.2590 | 8140.43 | view |
| 8140.43F.3800 | 8140.43 | view |
| 8140SRC31.35 - 1C | 8140SRC31 | view |
| 8140SRC31.35A001- 1D | 8140SRC31 | view |
| 8140SRC31.35L002- 1D | 8140SRC31 | view |
| 8140.43P.3945 | 8140.43 | view |
| 8140.43E.4310 | 8140.43 | view |
| 8140SRC33.10A001 | 8140SRC33 | view |
