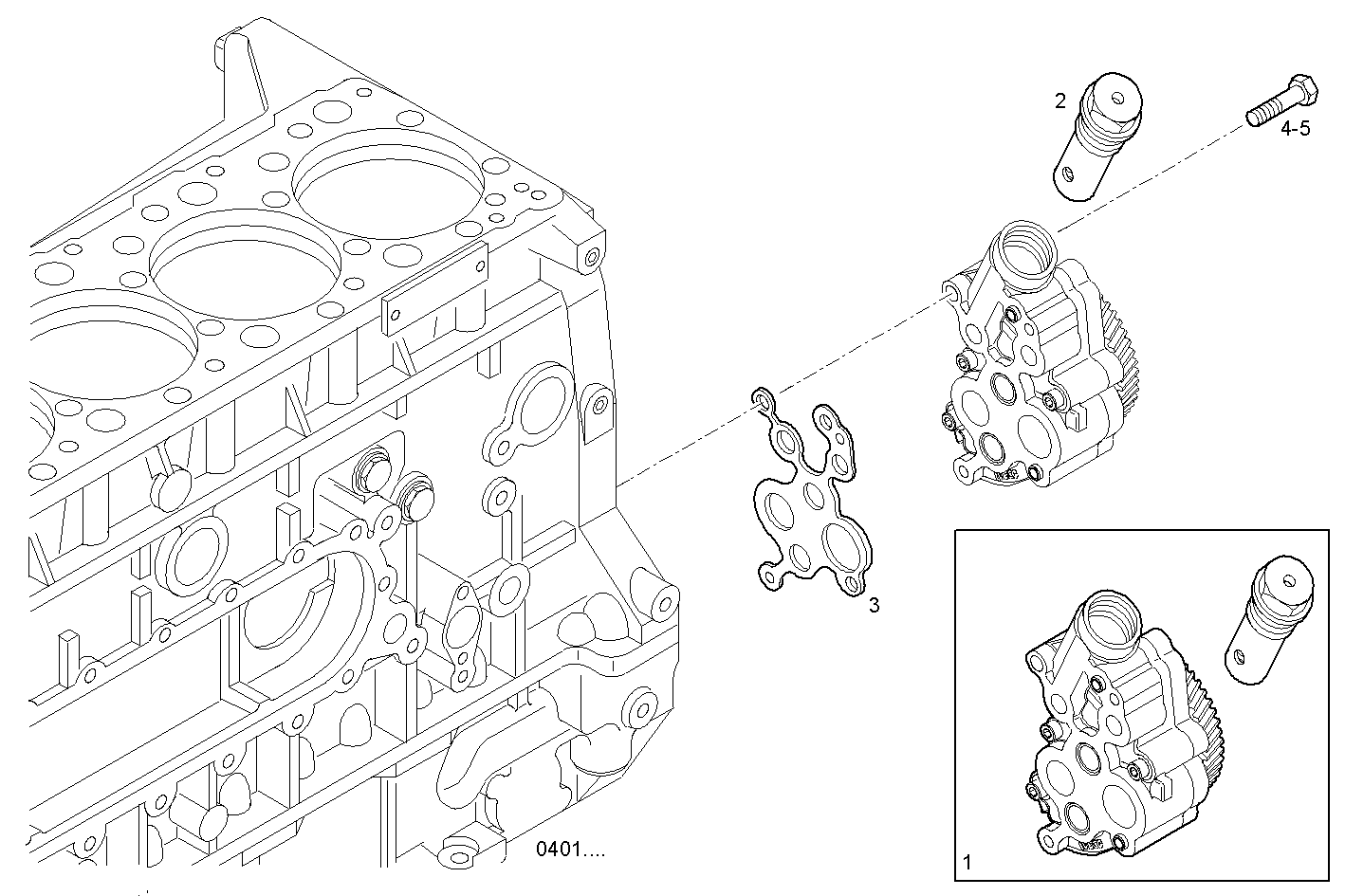

OIL PUMP
Assembly ID: 3001.018
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504332683 | LUBE OIL PUMP | 1 | ||
| 2 | 500359679 | OIL PUMP VALVE | 1 | ||
| 3 | 99452273 | FLAT ENGINE GASKET | 1 | ||
| 4 | 16592425 | HEXAGON BOLT | 3 | ||
| 5 | 16586625 | HEXAGON BOLT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3BE3681B*R401 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R402 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R403 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R404 | CURSOR 13 - EURO 4 | view |
