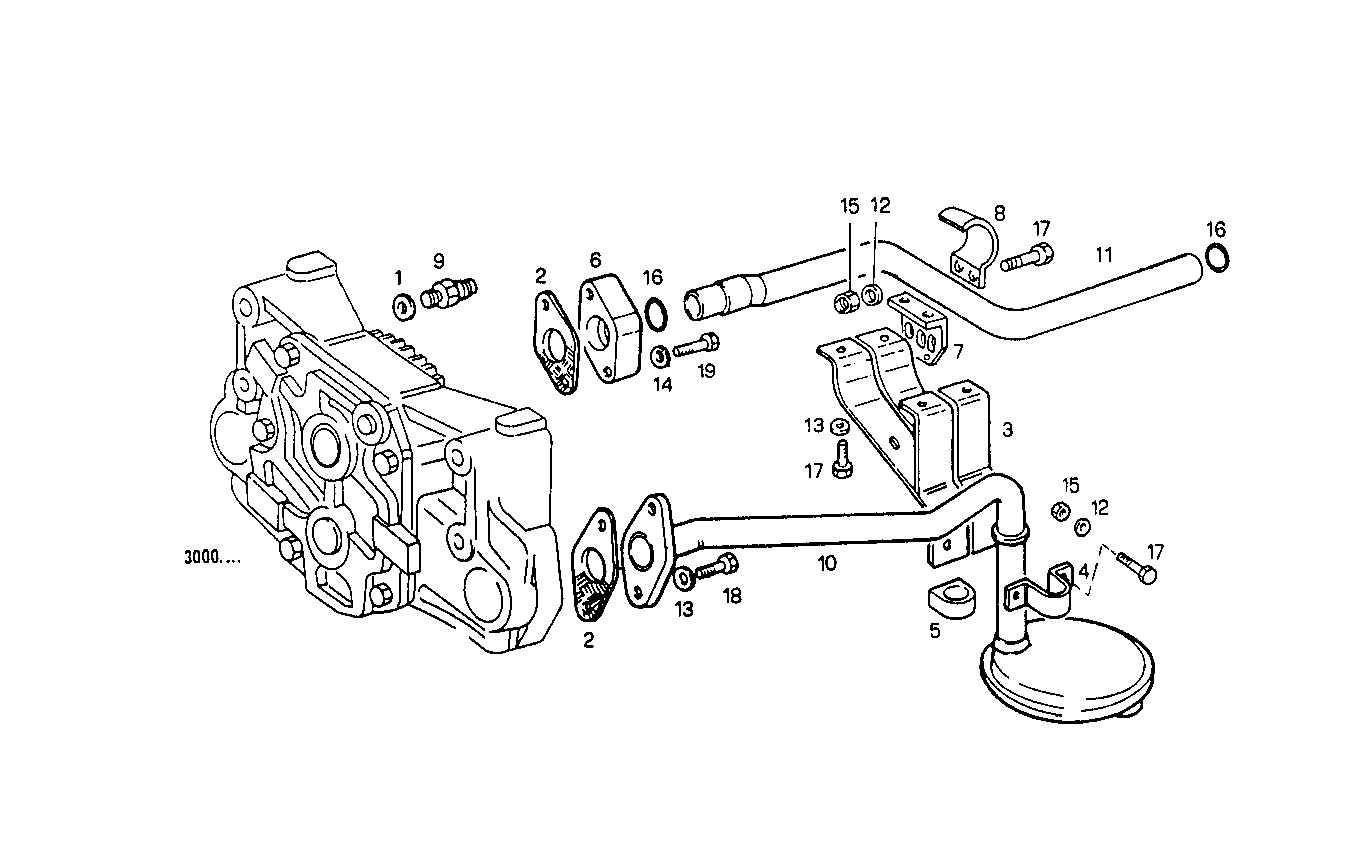

| 1 |
561293
|
O-RING
|
|
1
|
|
| 2 |
4852561
|
FLAT ENGINE GASKET
|
|
2
|
|
| 3 |
4739213
|
RETAINER
|
|
1
|
|
| 4 |
4719705
|
RETAINER
|
|
1
|
|
| 5 |
4719706
|
RUBBER PAD
|
|
1
|
|
| 6 |
4773265
|
FLANGED SOCKET
|
|
1
|
|
| 7 |
4775923
|
FASTENING BRACKET
|
|
1
|
|
| 8 |
4777690
|
CLIP
|
|
1
|
|
| 9 |
4785501
|
SCREW CONNECTOR
|
|
1
|
|
| 10 |
4810504
|
SUCTION STRAINER
|
|
1
|
|
| 11 |
4807944
|
OIL LINE
|
|
1
|
|
| 12 |
17094914
|
WASHER
|
|
4
|
|
| 13 |
17089471
|
SPRING WASHER
|
|
6
|
|
|
17089474 |
SPRING WASHER |
|
6 |
|
| 14 |
17090271
|
WASHER
|
|
2
|
|
|
17090274 |
WASHER |
|
2 |
|
| 15 |
17157021
|
NUT
|
|
4
|
|
|
17157025 |
NUT |
|
4 |
|
| 16 |
14457681
|
O-RING
|
|
4
|
|
| 17 |
16605424
|
SCREW
|
|
10
|
|
| 18 |
16043521
|
SCREW
|
|
2
|
|
| 19 |
16605824
|
HEXAGON BOLT
|
|
2
|
|
