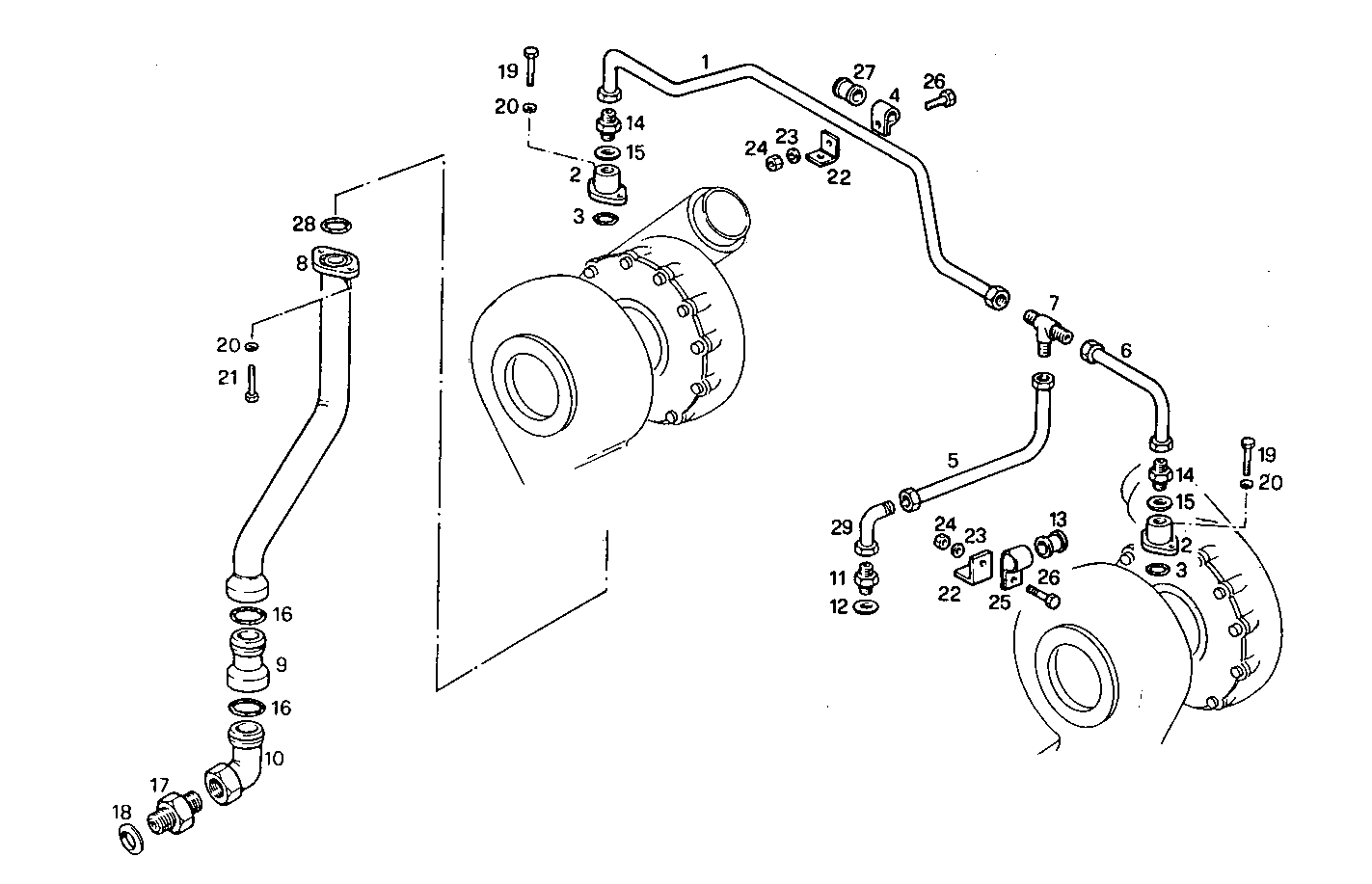

LUBE OIL LINES

Parts

#	Part number	Description	Quantity
1	8016111	OIL LINE	1
2	8011269	FLANGE	2
3	4859840	O-RING	2
	17288281	O-RING	2
4	4755963	FASTENING BRACKET	1
5	8010125	OIL LINE	1
6	8016110	OIL LINE	1
7	4741608	T-COUPLING	1
8	8016112	OIL LINE	2
9	8010542	PIPE SOCKET	2
10	8010543	PIPE SOCKET	2
11	8010546	PIPE SOCKET	1
12	4858610	WASHER	1
13	4757122	RUBBER PAD	1
14	16500311	PIPE SOCKET	2
	504081274	PIPE SOCKET	2
15	4858609	WASHER	2
16	17289081	O-RING	4
17	16527914	PIPE SOCKET	2
18	16528060	WASHER	2
19	16692124	CYLIND-HEAD SCREW	4
20	17090174	SPRING WASHER	4
21	16607624	SCREW	4
22	8100819	RETAINER	2
23	17089474	SPRING WASHER	2
24	17037931	HEXAGON NUT	2
25	4810595	FASTENING BRACKET	1
26	16605524	HEXAGON BOLT	2
27	4755964	RUBBER PAD	1
28	17288981	O-RING	2
29	16512111	PIPE SOCKET	1
	16512119	PIPE SOCKET	1
