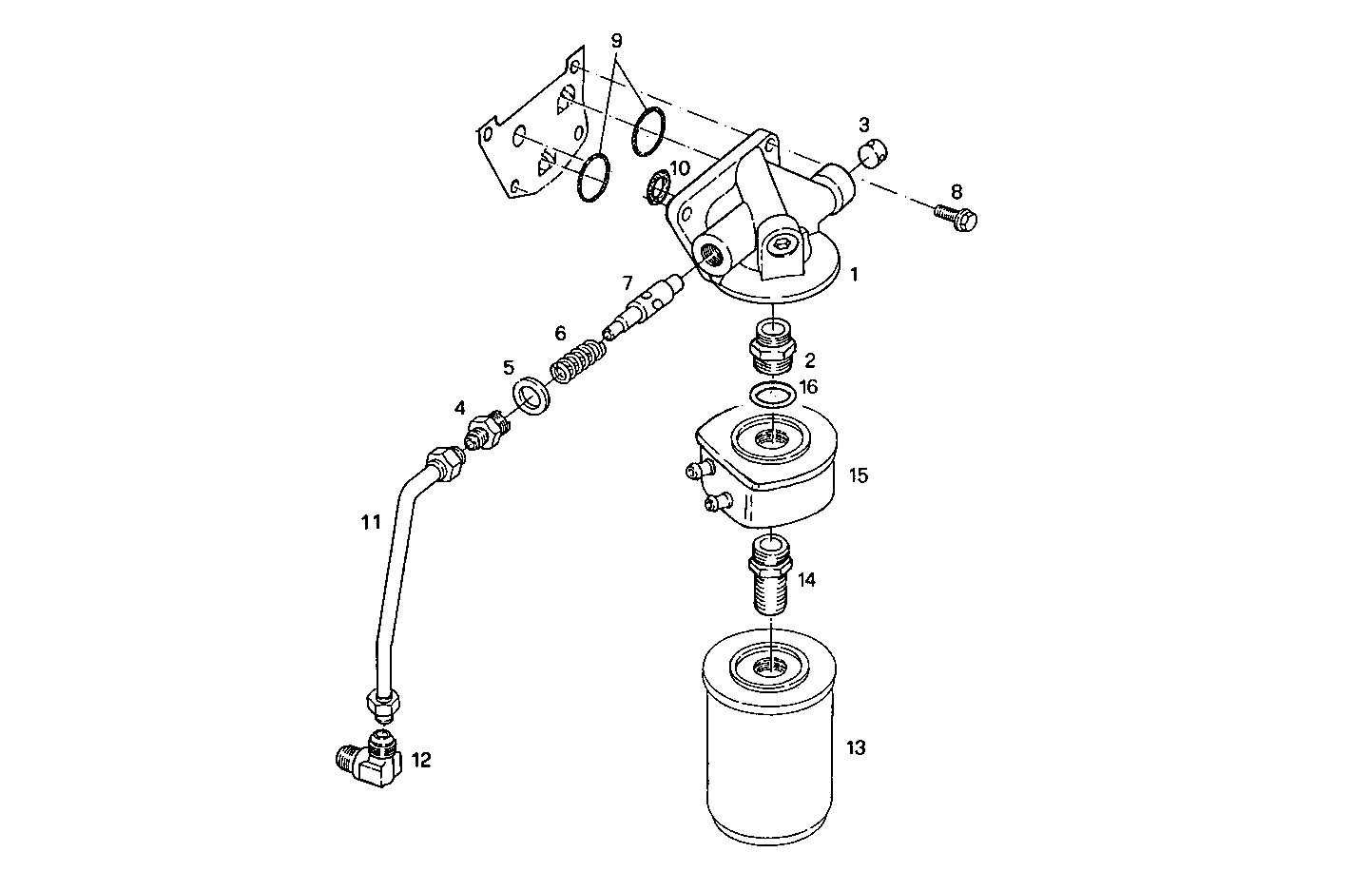

LUBE OIL LINES

Assembly ID: 3010.113

LUBE OIL LINES

Parts

# Part number Description Note Quantity
1 87802052 SUPPORT 1
2 8013049 PIPE SOCKET 1
3 82926938 PLUG 3
4 81869029 PIPE SOCKET 1
5 80167266 WASHER 1
6 81868595 SPRING 1
7 83999649 VALVE 1
8 83949104 SCREW 4
9 14463881 O-RING 2
10 83958249 O-RING 1
11 81869030 OIL LINE 1
12 81862801 PIPE SOCKET 1
13 1907570 OIL FILTER CARTRIDGE 1
14 8014672 PIPE SOCKET 1
15 8012973 OIL/WATER HEAT EXCHANGER 1
16 98429617 RUBBER RING 1

Applies to engines

Engine Family
GE7450G86.05A71E GE7450G86 view
GE7675G86.05A70E GE7675G86 view
GE7675G86.05A71E GE7675G86 view
GE7450G86.05A70E GE7450G86 view
7450G75.05C001 7450G75 view
7450G76.05C001 7450G76 view
7450G86.05C001 7450G86 view
7675G75.05C001 7675G75 view
7675G76.05C001 7675G76 view
7675G86.05C001 7675G86 view
7450G75.05A600 7450G75 view
7450G76.05A600 7450G76 view
7675G75.05A600 7675G75 view
7675G76.05A600 7675G76 view
7450G86.05A502 7450G86 view
7675G86.05A502 7675G86 view
