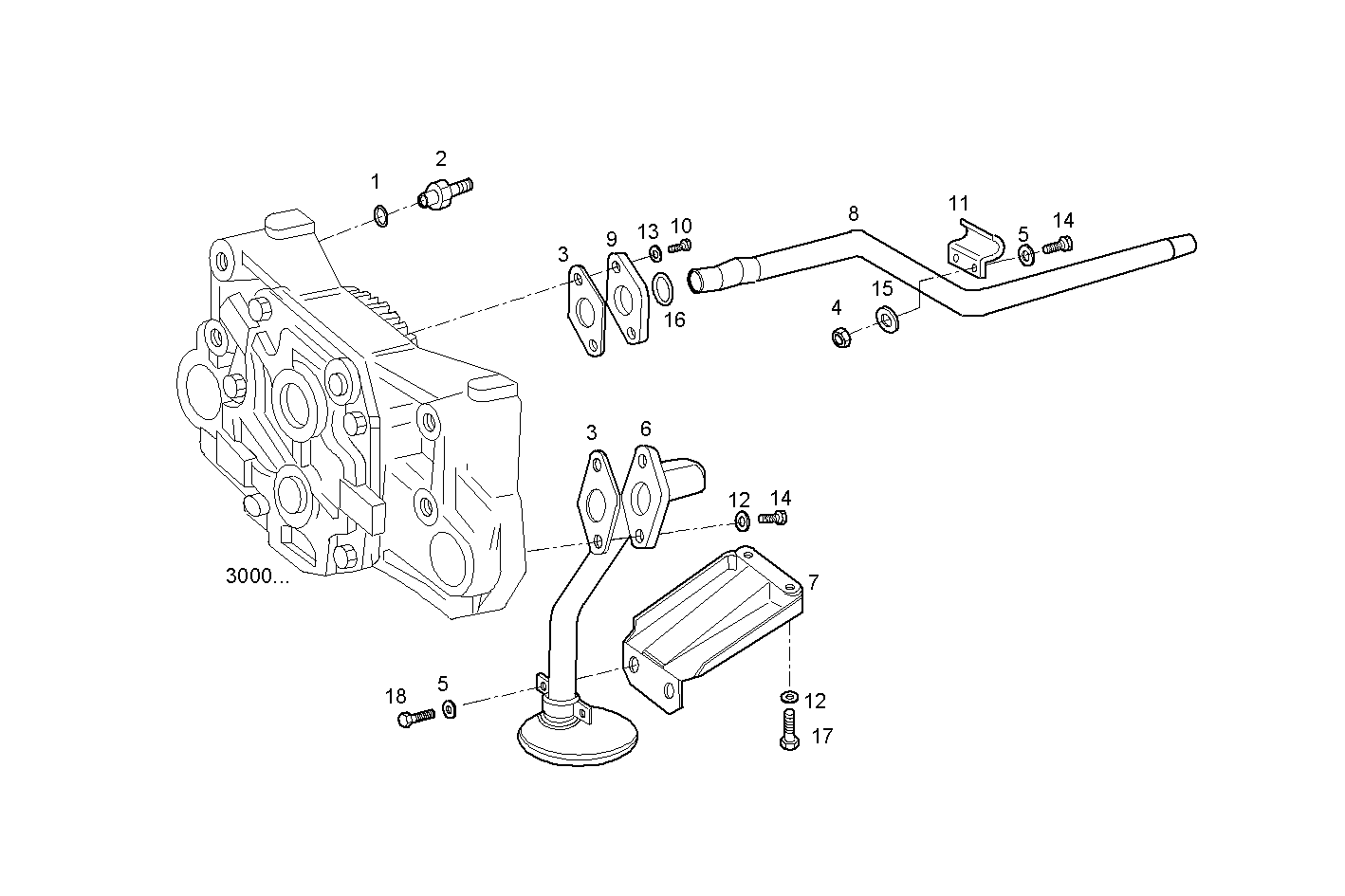

LUBE OIL LINES

Assembly ID: 3010.131

Parts

#	Part number	Description	Quantity
1	561293	O-RING	1
2	4785501	SCREW CONNECTOR	1
3	4852561	FLAT ENGINE GASKET	2
4	17094914	WASHER	4
5	12646704	WASHER	4
	16889624	WASHER	4
6	98492959	SUCTION STRAINER	1
7	4817571	RETAINER	1
8	4848968	OIL LINE	1
9	4773265	FLANGED SOCKET	1
10	16605824	HEXAGON BOLT	2
11	4777690	CLIP	1
12	17089474	SPRING WASHER	4
13	17090174	SPRING WASHER	2
14	16605524	HEXAGON BOLT	4
15	17157025	NUT	4
16	17282181	O-RING	4
17	16043524	SCREW	2
18	16605424	SCREW	2

Applies to engines

Engine	Family
GE8061i06.05A905	GE8061i06	view
GE8061Si06.05A955	GE8061Si06	view
GE8061Si06.05A956	GE8061Si06	view
GE8061SRi27.05A955	GE8061SRi27	view
GE8061SRi27.05A956	GE8061SRi27	view
GE8061Si07.05A955	GE8061Si07	view
GE8061Si07.05A956	GE8061Si07	view
GE8061SRi26.05A955	GE8061SRi26	view
GE8061SRi26.05A956	GE8061SRi26	view
GE8061i06.05A955	GE8061i06	view
GS8061i06.05A612	GS8061i06	view
GS8061i06.05A614	GS8061i06	view
GS8061Si06.05A662	GS8061Si06	view
GS8061Si06.05A664	GS8061Si06	view
GS8061Si07.05A662	GS8061Si07	view
GS8061Si07.05A664	GS8061Si07	view
GS8061SRi26.05A662	GS8061SRi26	view
GS8061SRi26.05A664	GS8061SRi26	view
GS8061SRi27.05A662	GS8061SRi27	view
GS8061SRi27.05A664	GS8061SRi27	view
8061i40.05	8061i40	view
8065SU07.05	8065SU07	view
8065U06.05	8065U06	view
8065SRU26.05	8065SRU26	view
8061i06.05	8061i06	view
8061i06.05A520	8061i06	view
8061Si06.05	8061Si06	view
8061Si06.05A580	8061Si06	view
8061Si06.05A552	8061Si06	view
8061Si06.05A582	8061Si06	view
8061Si07.05	8061Si07	view
8061Si07.05A580	8061Si07	view
8061Si07.05A552	8061Si07	view
8061Si07.05A582	8061Si07	view
8061SRi26.05	8061SRi26	view
8061SRi26.05A580	8061SRi26	view
8061SRi26.05A552	8061SRi26	view
8061SRi26.05A582	8061SRi26	view
8061SRi27.05	8061SRi27	view
8061SRi27.05A580	8061SRi27	view
8061SRi27.05A552	8061SRi27	view
8061SRi27.05A582	8061SRi27	view
8061SRU26.05	8061SRU26	view
8061M12.43	8061M12	view
8061Si06.05A550	8061Si06	view
8061Si06.05A580	8061Si06	view
8061Si07.05A550	8061Si07	view
8061Si07.05A580	8061Si07	view
8061SRi26.05A550	8061SRi26	view
8061SRi26.05A580	8061SRi26	view
8061SRi27.05A550	8061SRi27	view
8061SRi27.05A580	8061SRi27	view
8061i06.05A500	8061i06	view
8061i06.05A520	8061i06	view
8061Si06.05A552	8061Si06	view
8061Si06.05A582	8061Si06	view
8061Si07.05A552	8061Si07	view
8061Si07.05A582	8061Si07	view
8061SRi26.05A552	8061SRi26	view
8061SRi26.05A582	8061SRi26	view
8061SRi27.05A552	8061SRi27	view
8061SRi27.05A582	8061SRi27	view
8065U06.05A580	8065U06	view
8065SU07.05A580	8065SU07	view
8065SRU26.05A580	8065SRU26	view
8061i06.05A501	8061i06	view
8061i06.05A550	8061i06	view
8061SRU26.05A580	8061SRU26	view
8061i06.05A521	8061i06	view
GE8061i06.05N900	GE8061i06	view
GE8061i06.05N920	GE8061i06	view
GE8061i06.05R900	GE8061i06	view
GE8061i06.05R920	GE8061i06	view
GE8061Si06.05N950	GE8061Si06	view
GE8061Si06.05N970	GE8061Si06	view
GE8061Si06.05R950	GE8061Si06	view
GE8061Si06.05R970	GE8061Si06	view
GE8061Si07.05N950	GE8061Si07	view
GE8061Si07.05N970	GE8061Si07	view
GE8061Si07.05R950	GE8061Si07	view
GE8061Si07.05R970	GE8061Si07	view
GE8061SRi26.05N950	GE8061SRi26	view
GE8061SRi26.05N970	GE8061SRi26	view
GE8061SRi26.05R950	GE8061SRi26	view
GE8061SRi26.05R970	GE8061SRi26	view
GE8061SRi27.05N950	GE8061SRi27	view
GE8061SRi27.05N970	GE8061SRi27	view
GE8061SRi27.05R950	GE8061SRi27	view
GE8061SRi27.05R970	GE8061SRi27	view
GE8061Si06.05A71M	GE8061Si06	view
8061SRI26.05A554	8061SRi26	view
8061SRI27.05A555	8061SRi27	view
8061SI07.05A556	8061Si07	view
8061.25.462	8061.25	view
8061SRi26.06	8061SRi26	view
8061SRi27.06	8061SRi27	view
8061SRU26.06	8061SRU26	view
