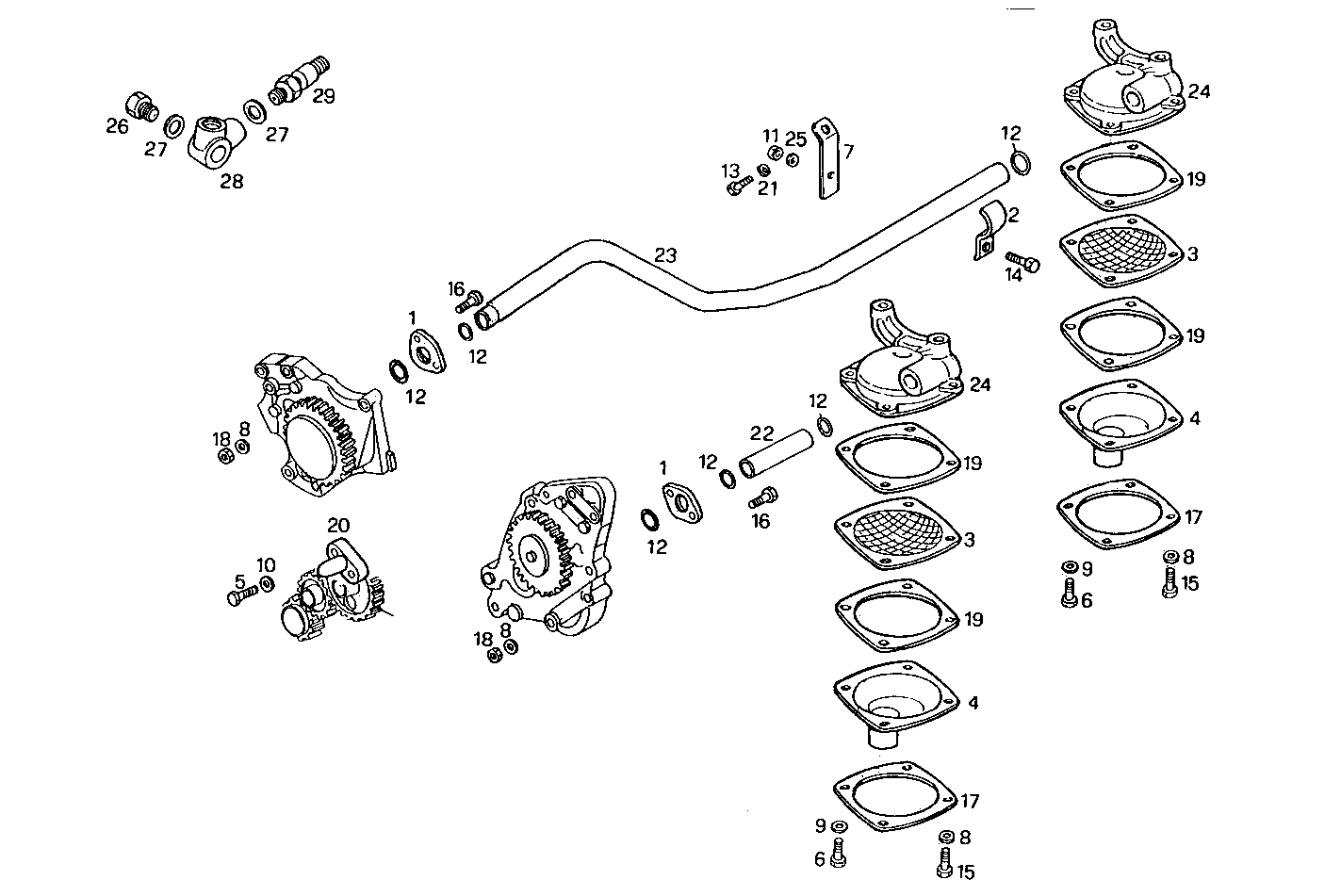

| 1 |
61317784
|
FLANGE
|
|
2
|
|
| 2 |
61316171
|
CLIP
|
|
1
|
|
| 3 |
4673581
|
FILTER
|
|
2
|
|
| 4 |
61316169
|
OIL FILTER COVER
|
|
2
|
|
| 5 |
16603724
|
HEXAGON BOLT
|
|
2
|
|
| 6 |
16603824
|
SCREW
|
|
2
|
|
| 7 |
61316170
|
FASTENING BRACKET
|
|
1
|
|
| 8 |
11194074
|
WASHER
|
|
6
|
|
| 9 |
11194874
|
SPRING WASHER
|
|
2
|
|
| 10 |
17799374
|
SPRING WASHER
|
|
2
|
|
| 11 |
13680011
|
NUT
|
|
1
|
|
| 12 |
17288981
|
O-RING
|
|
6
|
|
| 13 |
16043124
|
SCREW
|
|
1
|
|
| 14 |
16043521
|
SCREW
|
|
1
|
|
| 15 |
16605624
|
HEXAGON BOLT
|
|
6
|
|
|
16605635 |
HEXAGON BOLT |
|
6 |
|
| 16 |
16606424
|
HEXAGON BOLT
|
|
4
|
|
| 17 |
4673582
|
FASTENING RING
|
|
2
|
|
| 18 |
17037931
|
HEXAGON NUT
|
|
4
|
|
| 19 |
61319056
|
FLAT ENGINE GASKET
|
|
4
|
|
| 20 |
61586093
|
OIL NOZZLE
|
|
1
|
|
| 21 |
17089574
|
WASHER
|
|
1
|
|
|
17089575 |
WASHER |
|
1 |
|
| 22 |
61321607
|
OIL LINE
|
|
1
|
|
| 23 |
61321608
|
OIL LINE
|
|
1
|
|
| 24 |
61316168
|
SUCTION STRAINER
|
|
2
|
|
| 25 |
17094914
|
WASHER
|
|
1
|
|
| 26 |
16992311
|
LOCK PLUG
|
|
2
|
|
|
16992315 |
LOCK PLUG |
|
2 |
|
| 27 |
4858608
|
SEAL GASKET
|
|
2
|
|
| 28 |
61319226
|
BANJO COUPLING
|
|
1
|
|
| 29 |
61319225
|
SCREW CONNECTOR
|
|
1
|
|
