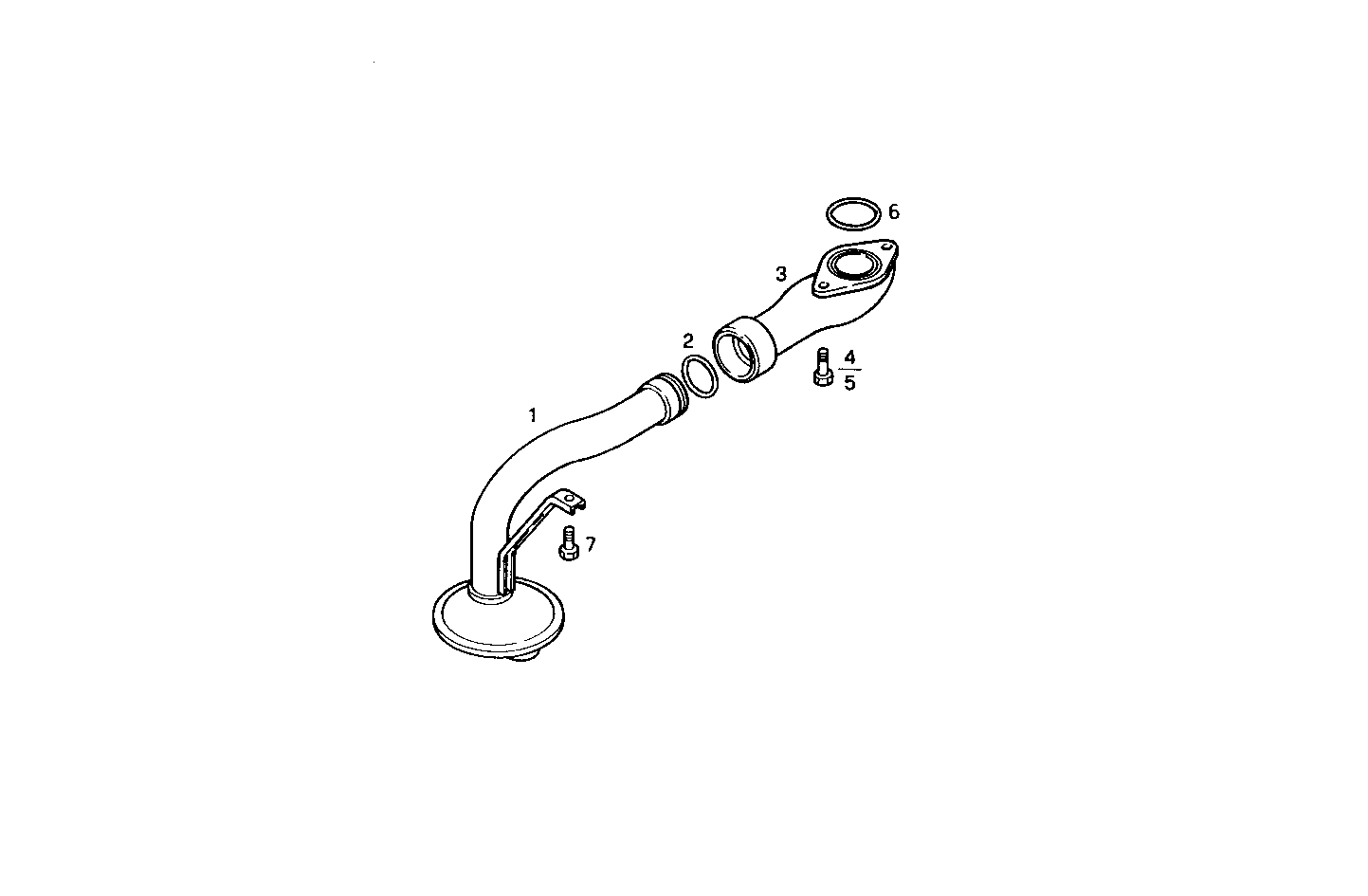

LUBE OIL LINES
Assembly ID: 3010.181
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8030224 | SUCTION STRAINER | 1 | ||
| 2 | 17282981 | O-RING | 1 | ||
| 3 | 98474898 | INTAKE ELBOW | 1 | ||
| 4 | 16586724 | SCREW | 1 | ||
| 5 | 16592224 | HEXAGON BOLT | 1 | ||
| 6 | 99477046 | O-RING | 1 | ||
| 7 | 16586224 | HEXAGON BOLT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C78ENTM50.10 | CURSOR 8 | view |
| C78ENTM30.10-C 12/03 | CURSOR 8 | view |
