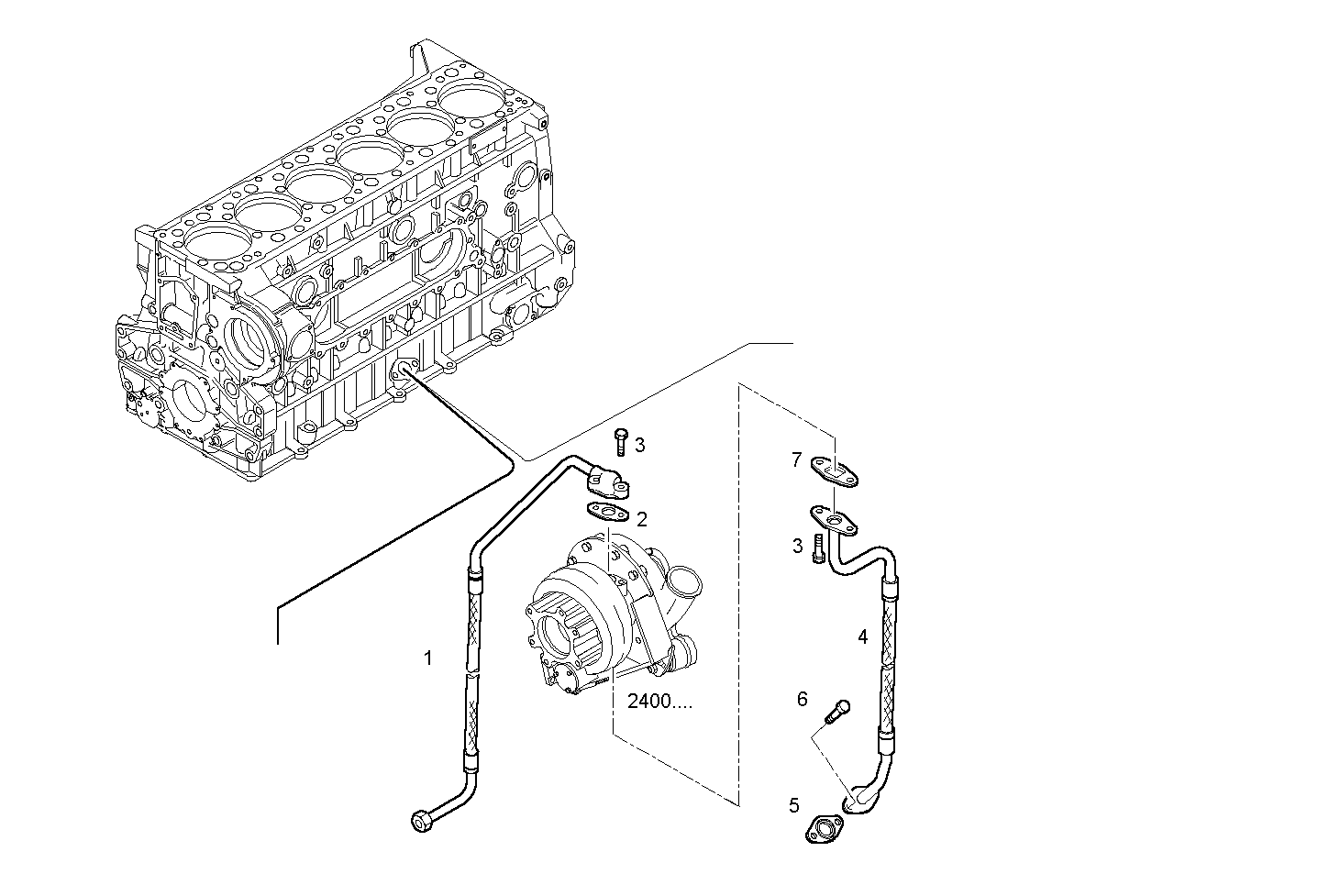

LUBE OIL LINES
Assembly ID: 3010.188
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504050605 | OIL LINE | 1 | ||
| 2 | 61318303 | GASKET | 1 | ||
| 3 | 16586624 | HEXAGON BOLT | 4 | ||
| 4 | 504050612 | OIL LINE | 1 | ||
| 5 | 99475979 | FLAT ENGINE GASKET | 1 | ||
| 6 | 16586324 | HEXAGON BOLT | 2 | ||
| 7 | 98412509 | FLAT ENGINE GASKET | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3AE0684E*B002 | CURSOR 10 - TIER 2 | view |
