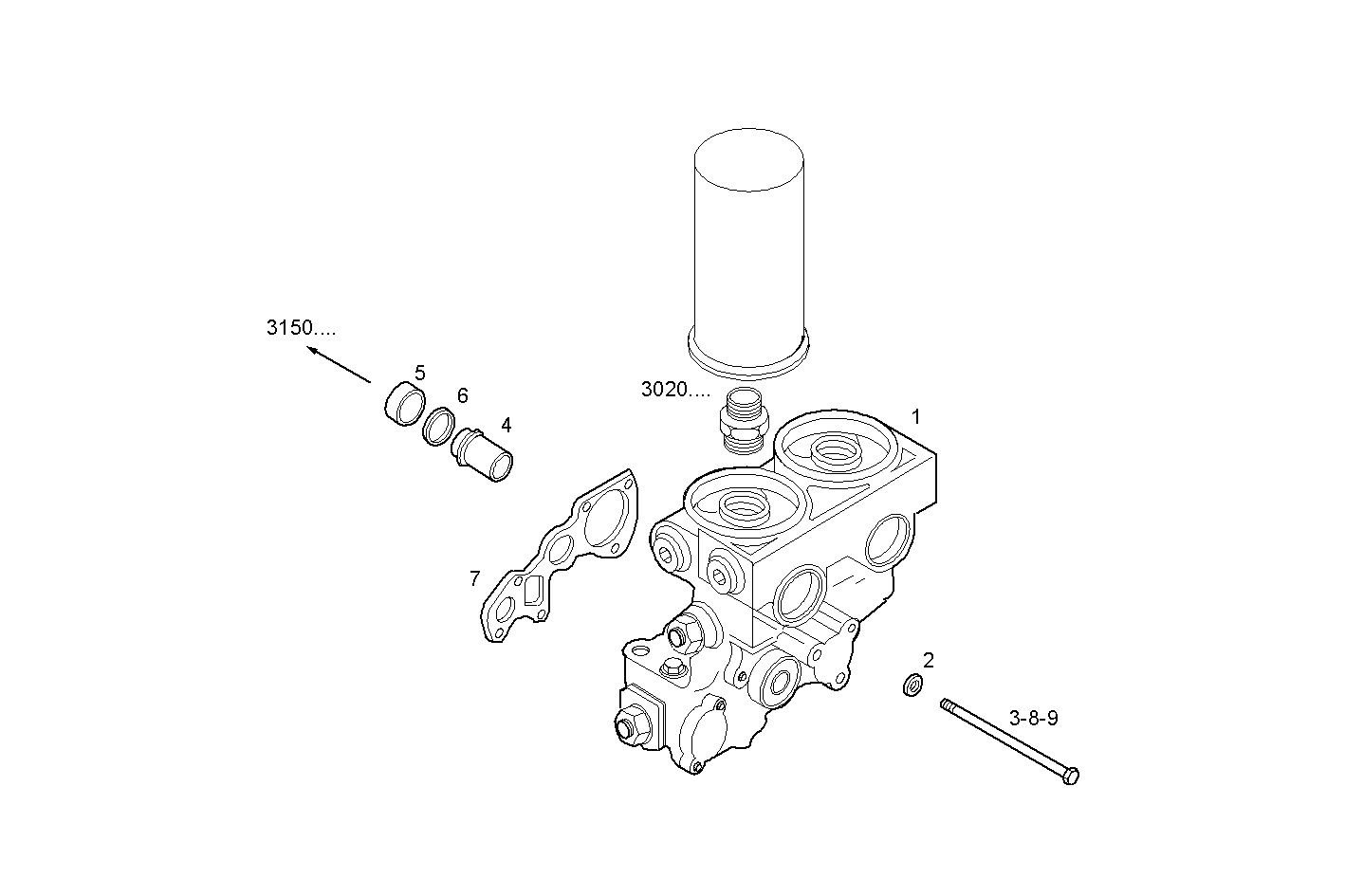

HOUSING OIL
Assembly ID: 3022.001
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8030491 | OIL FILTER SUPPORT | 1 | ||
| 2 | 17089474 | SPRING WASHER | 7 | ||
| 3 | 16607324 | HEXAGON BOLT | 2 | ||
| 4 | 98498322 | VALVE | 1 | ||
| 5 | 99433798 | SPACING BAR | 1 | ||
| 6 | 98494952 | GASKET | 1 | ||
| 7 | 504013562 | GASKET | 1 | ||
| 8 | 16046221 | HEXAGON BOLT | 3 | ||
| 9 | 8030913 | SCREW | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C78ENTM50.10 | CURSOR 8 | view |
| C78ENTM50.11 | CURSOR 8 | view |
| C78ENTM50.11A001 | CURSOR 8 | view |
| C78ENTM30.10-D 01/04 | CURSOR 8 | view |
| C78ENTM30.10A002 | CURSOR 8 | view |
| C13ENTM50.10 | CURSOR 13 | view |
| C13ENSM33.10 | CURSOR 13 | view |
| C78ENSM20.10 | CURSOR 8 | view |
| C78ENAM12.00 | CURSOR 8 | view |
| C13ENAM19.00 | CURSOR 13 | view |
| C78ENSM20.30 | CURSOR 8 | view |
| C13ENTM50.30 | CURSOR 13 | view |
