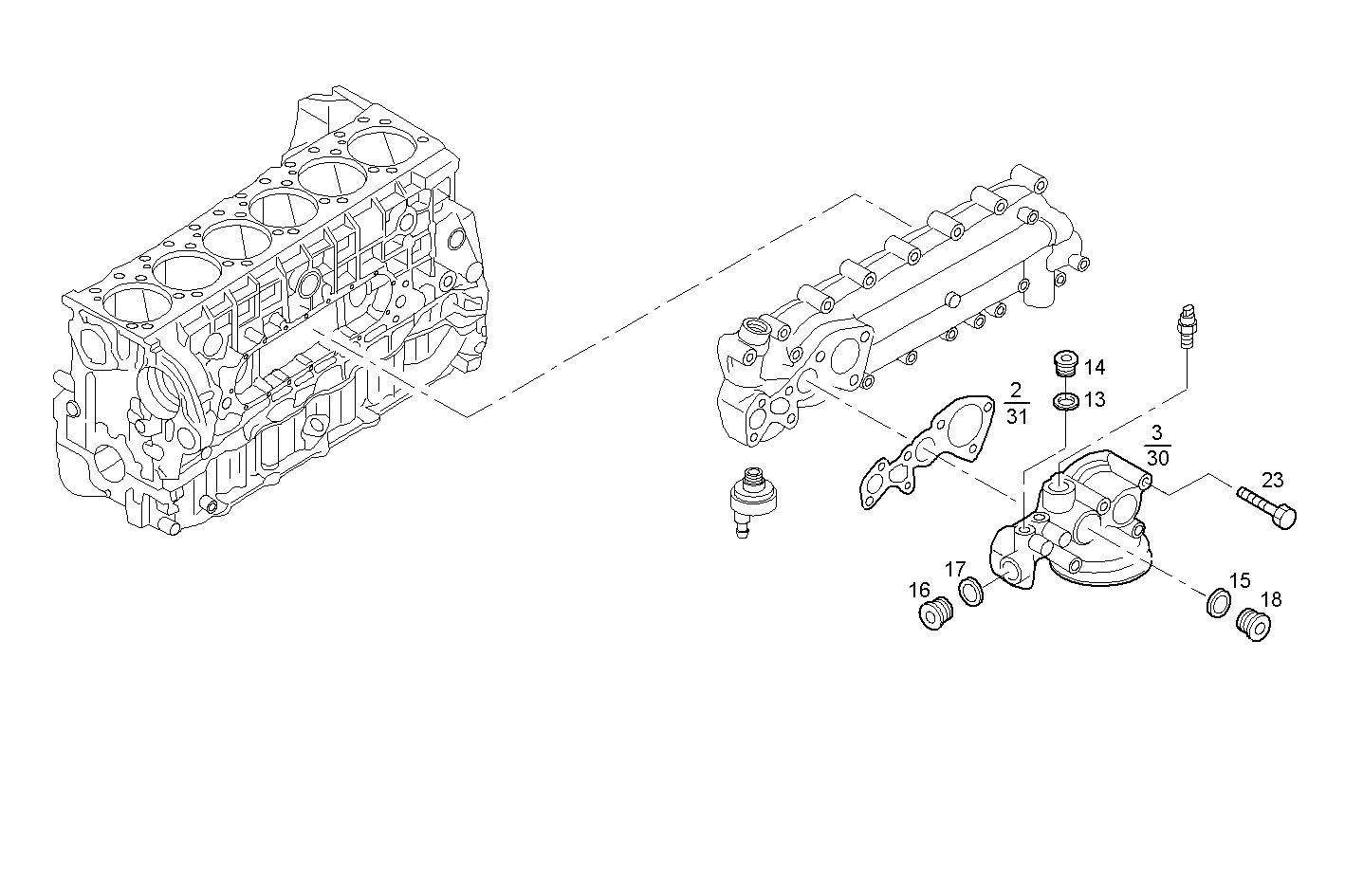

HOUSING OIL
Assembly ID: 3022.003
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 2 | 99442502 | FLAT ENGINE GASKET | 1 | ||
| 3 | 500354237 | OIL FILTER SUPPORT | 1 | ||
| 13 | 99489019 | WASHER | 1 | ||
| 14 | 16992415 | THREADED PLUG | 1 | ||
| 15 | 99469380 | SEAL GASKET | 1 | ||
| 16 | 16993511 | LOCK PLUG | 1 | ||
| 17 | 99432291 | SEAL GASKET | 1 | ||
| 18 | 16993711 | THREADED PLUG | 1 | ||
| 23 | 16598224 | HEXAGON BOLT | 5 | ||
| 30 | 504013552 | OIL FILTER SUPPORT | 1 | ||
| 31 | 504013562 | GASKET | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F2BE0684A*B002 | CURSOR 8 - TIER 2 | view |
| C78ENTD20.00 | CURSOR 8 - TIER 2 | view |
| F2BE0684A*B001 | CURSOR 8 - TIER 2 | view |
| F3AE0684J*B902 | CURSOR 10 - TIER 2 | view |
| F3AE0684M*B903 | CURSOR 10 - TIER 2 | view |
| C78ENTE20.00 | CURSOR 8 - TIER 2 | view |
| F2BE0687A*B301 | CURSOR 8 - TIER 2 | view |
| F2BE0687B*B301 | CURSOR 8 - TIER 2 | view |
| F2BE0687C*B301 | CURSOR 8 - TIER 2 | view |
| F2BE0684A*B003 | CURSOR 8 - TIER 2 | view |
| C78ENTE20.00A001 | CURSOR 8 - TIER 2 | view |
| F2BE0685A*B301 | CURSOR 8 - TIER 2 | view |
| C78ENTE60.00 | CURSOR 8 - TIER 2 | view |
| C78ENTE20.00A002 | CURSOR 8 - TIER 2 | view |
| CURSOR78TE2.A001 | CURSOR 8 - TIER 2 | view |
| CURSOR78TE2.A002 | CURSOR 8 - TIER 2 | view |
| CURSOR78TE2.A850 | CURSOR 8 - TIER 2 | view |
| GECURSOR250E.R990 | GECURSOR 8 - TIER 2 | view |
| F2BE0685A*B302 | CURSOR 8 - TIER 2 | view |
| C78ENTE60.10 | CURSOR 8 - TIER 2 | view |
| GECURSOR250E.1R990 | GECURSOR 8 - TIER 2 | view |
| CURSOR78TE2.1A001 | CURSOR 8 - TIER 2 | view |
| CURSOR78TE2.1A002 | CURSOR 8 - TIER 2 | view |
| F3AE0684P*E904 | CURSOR 10 - TIER 3 | view |
| C78ENTD20.00A800 | CURSOR 8 - TIER 2 | view |
| CURSOR78TE2.1A559 | CURSOR 8 - TIER 2 | view |
| GECURSOR250E.1A551 | GECURSOR 8 - TIER 2 | view |
| GECURSOR250E.1A71M | GECURSOR 8 - TIER 2 | view |
| F2BE0642A*A002 | CURSOR 8 CNG | view |
| F2BE0642A*A003 | CURSOR 8 CNG | view |
| F2BE0682F*B403 | CURSOR 8 - EURO 3 | view |
| PUC78ENTD20.00A100 | CURSOR 8 - TIER 2 | view |
| C78ENTC25.00A003 | CURSOR 8 - EURO 3 | view |
| F2BE0642B*A001 | CURSOR 8 CNG | view |
| F3BE0684N*E903 | CURSOR 13 - TIER 3 | view |
| GECURSOR250ES.R990 | GECURSOR 8 - 2002/88/CE | view |
| GECURSOR250ES.A001 | GECURSOR 8 - 2002/88/CE | view |
| GECURSOR250ES.A551 | GECURSOR 8 - 2002/88/CE | view |
| GECURSOR250ES.A71M | GECURSOR 8 - 2002/88/CE | view |
| CURSOR78TE2S.A001 | CURSOR 8 - 2002/88/CE | view |
| CURSOR78TE2S.A002 | CURSOR 8 - 2002/88/CE | view |
| CURSOR78TE2S.A559 | CURSOR 8 - 2002/88/CE | view |
| F3AE0684K*E904 | CURSOR 10 - TIER 3 | view |
| CURSOR78TE2S.S550 | CURSOR 8 - 2002/88/CE | view |
| C78ENTF40.00 | CURSOR 8 - TIER 2 | view |
| C78ENTF41.00 | CURSOR 8 - TIER 2 | view |
| F2BE0642F*B007 | CURSOR 8 CNG | view |
| F2BE0687A*B302 | CURSOR 8 - TIER 2 | view |
| C78ENTD20.20 | CURSOR 8 - TIER 2 | view |
| PUC78ENTD20.20A100 | CURSOR 8 - TIER 2 | view |
| F2BE0642A*A009 | CURSOR 8 CNG | view |
| C78ENTG20.00A001 | CURSOR 8 CNG | view |
