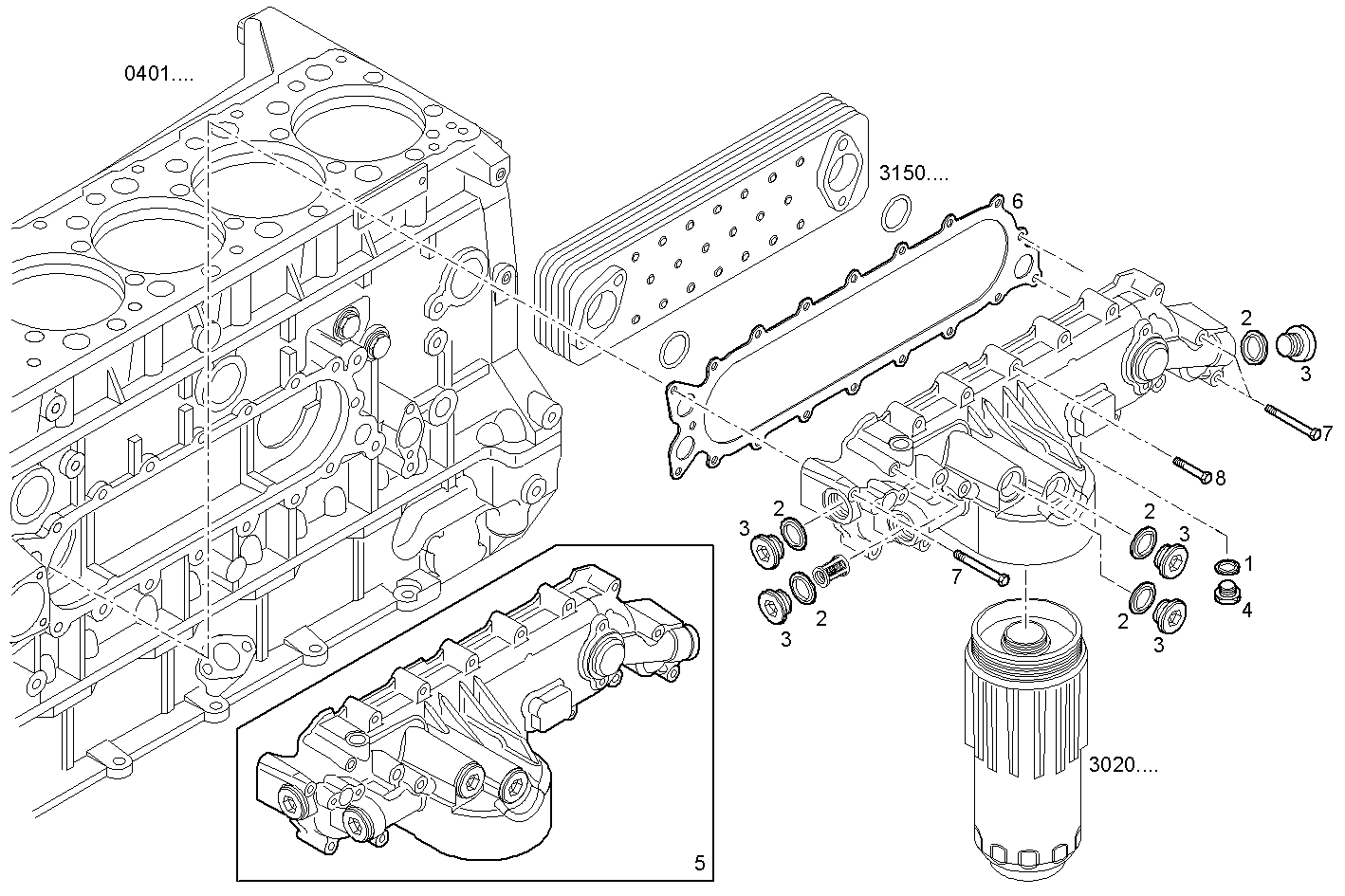

HOUSING OIL
Assembly ID: 3022.010
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 99489019 | WASHER | 1 | ||
| 2 | 99432291 | SEAL GASKET | 5 | ||
| 3 | 16993511 | LOCK PLUG | 5 | ||
| 4 | 16992415 | THREADED PLUG | 1 | ||
| 5 | 504236007 | HEAT EXCHANGER | 1 | ||
| 6 | 504045796 | FLAT ENGINE GASKET | 1 | ||
| 7 | 16592625 | HEXAGON BOLT | 4 | ||
| 8 | 16586925 | HEXAGON BOLT | 14 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3AE0684N*E907 | CURSOR 10 - TIER 3 | view |
| F3BE0684N*E906 | CURSOR 13 - TIER 3 | view |
| F3AE0684P*E909 | CURSOR 10 - TIER 3 | view |
| F3BE3681B*R401 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R402 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R403 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R404 | CURSOR 13 - EURO 4 | view |
