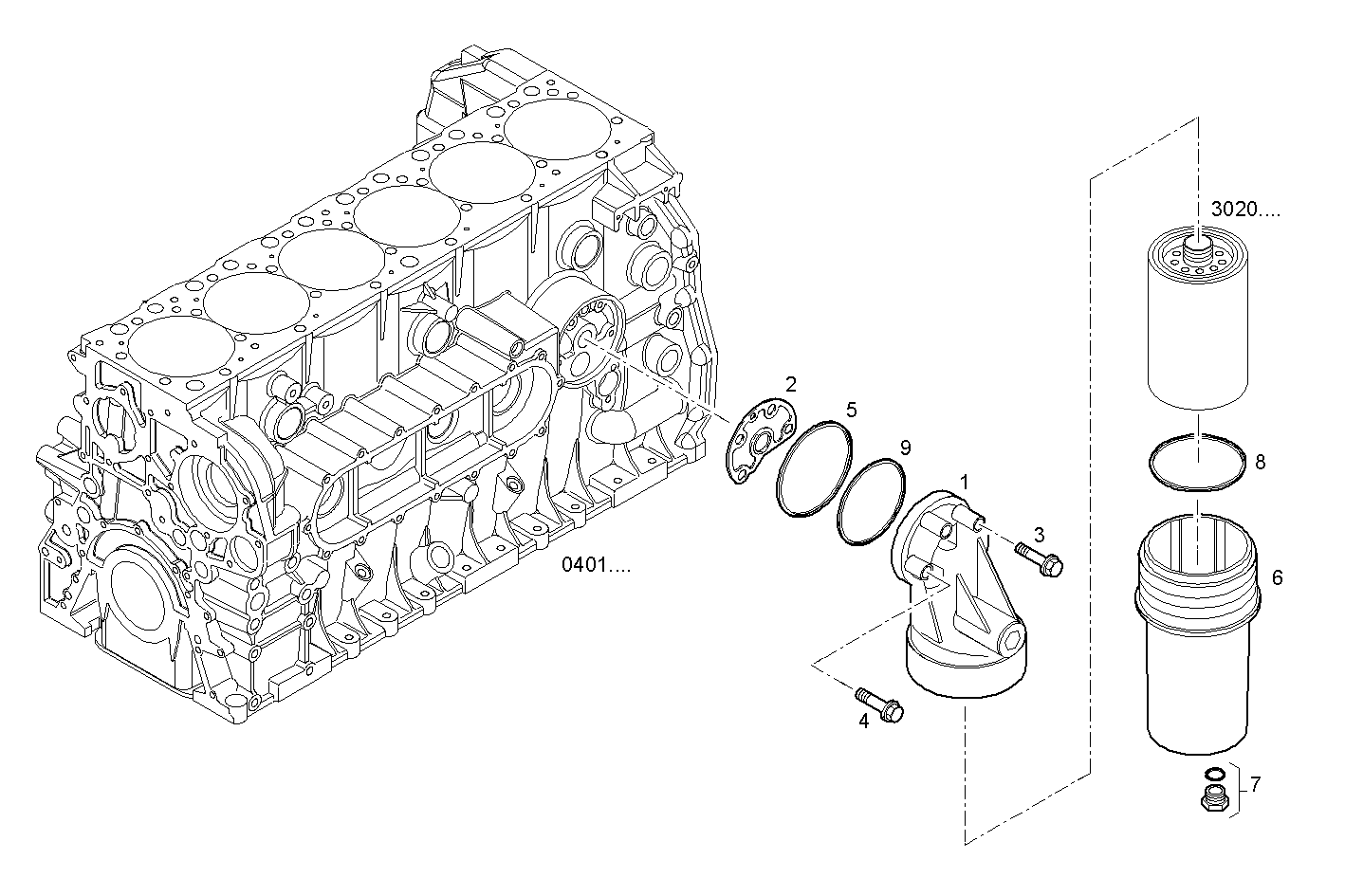

HOUSING OIL
Assembly ID: 3022.012
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 42559551 | OIL FILTER SUPPORT | 1 | ||
| 2 | 504147366 | FLAT ENGINE GASKET | 1 | ||
| 3 | 16592325 | HEXAGON BOLT | 1 | ||
| 4 | 16598224 | HEXAGON BOLT | 1 | ||
| 5 | 17291881 | O-RING | 1 | ||
| 6 | 42559548 | COVER | 1 | ||
| 7 | 42559549 | THREADED PLUG | 1 | ||
| 8 | 42559550 | O-RING | 1 | ||
| 9 | 42559552 | O-RING | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F2CE0681B*B200 | CURSOR 9 - EURO 3 | view |
| F2CE0681B*B201 | CURSOR 9 - EURO 3 | view |
