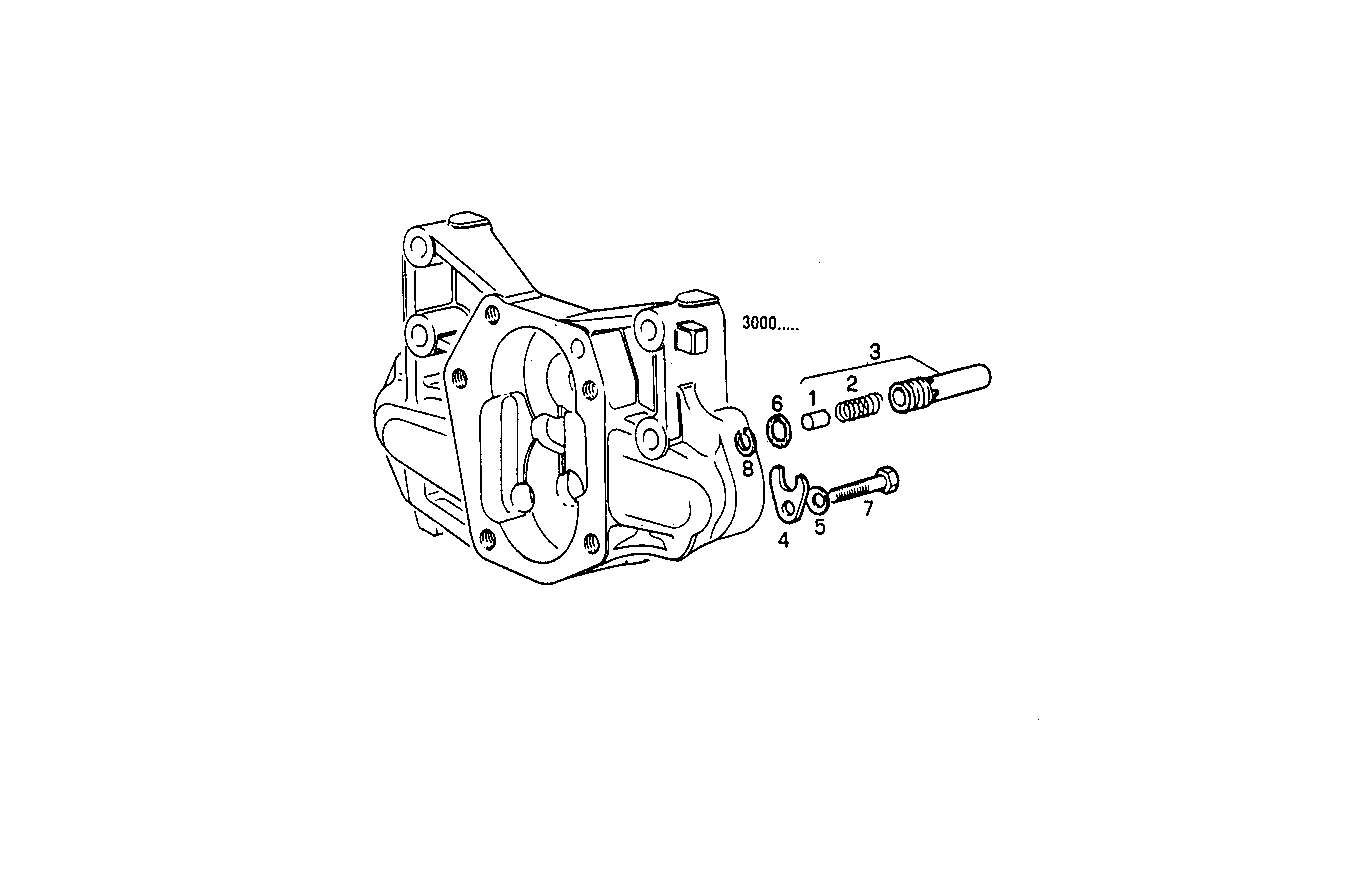

OIL PRESSURE VALVE
Assembly ID: 3030.005
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4672842 | VALVE | 1 | ||
| 2 | 4802613 | SPRING | 1 | ||
| 3 | 4802611 | OIL PUMP VALVE | 1 | ||
| 4 | 4613353 | CLEVIS | 1 | ||
| 5 | 17089574 | WASHER | 1 | ||
| 6 | 17281781 | O-RING | 1 | ||
| 7 | 16605534 | HEXAGON BOLT | 1 | ||
| 8 | 11057576 | CIRCLIP | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8061SRM25.10 | 8061SRM25 | view |
| 8061SRM30.10 | 8061SRM30 | view |
| 8061SM20.30 | 8061SM20 | view |
| 8041SRM15.10 | 8041SRM15 | view |
| 8061SM20.12 | 8061SM20 | view |
| 8061SM20.32 | 8061SM20 | view |
| 8061SM20.42 | 8061SM20 | view |
| 8061SRM25.12 | 8061SRM25 | view |
| 8061SRM25.42 | 8061SRM25 | view |
| 8061SRM33.10 | 8061SRM33 | view |
| 8061SRM33.40 | 8061SRM33 | view |
| 8061SM16.11 | 8061SM16 | view |
| 8061SRM25.13 | 8061SRM25 | view |
| 8061SRM25.33 | 8061SRM25 | view |
| 8061SRM33.12 | 8061SRM33 | view |
| 8061SRM33.42 | 8061SRM33 | view |
| 8060SRM33.10 | 8060SRM33 | view |
| 8060SRM33.10A001 | 8060SRM33 | view |
| 8060SRM33.10A002 | 8060SRM33 | view |
