OIL PRESSURE VALVE

Assembly ID: 3030.016

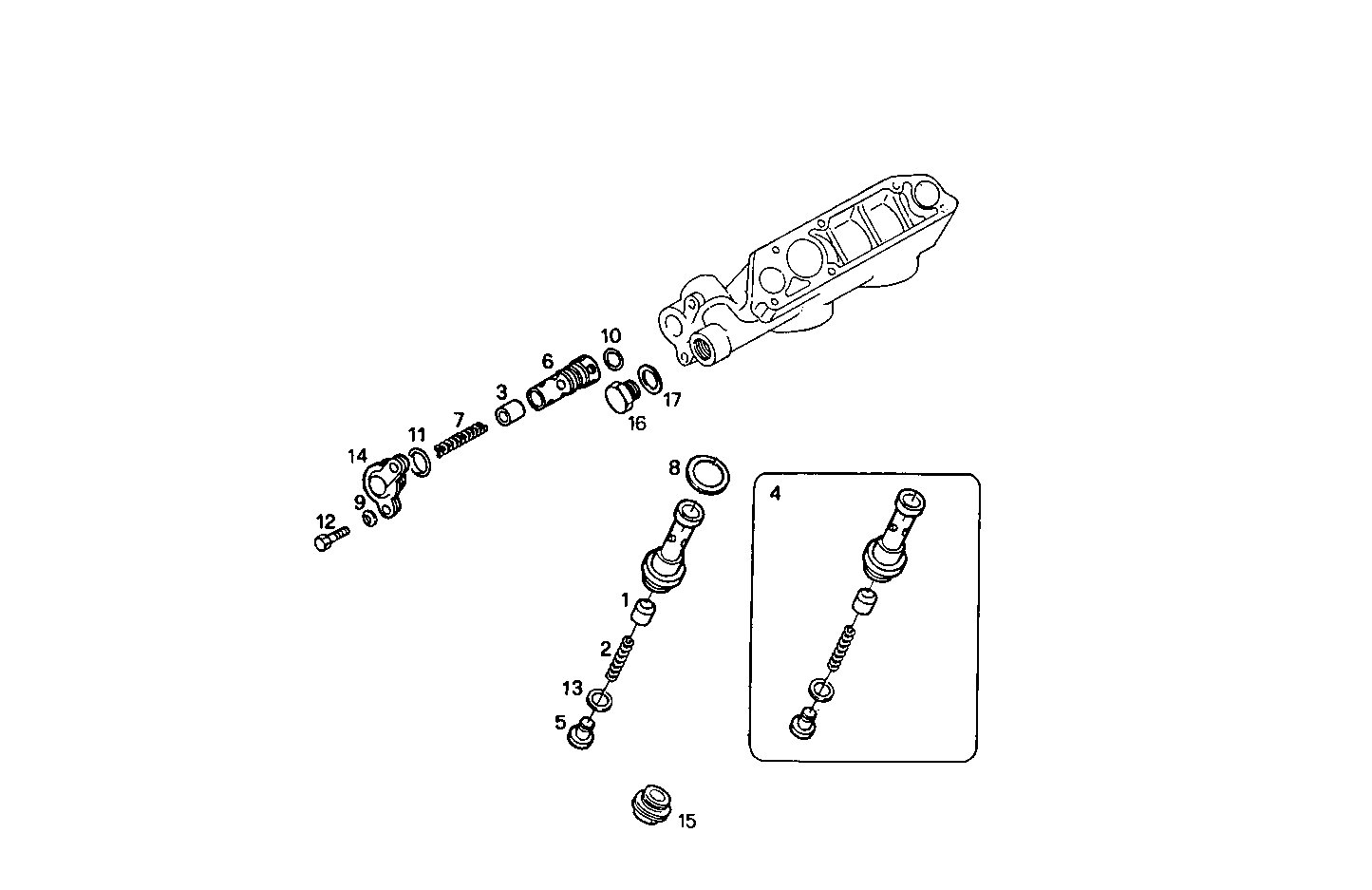

OIL PRESSURE VALVE

Parts

# Part number Description Note Quantity
1 564432 OIL PUMP VALVE 1
2 4750282 SPRING 1
3 4672842 VALVE 1
4 4752720 BYPASS VALVE 1
5 4750297 PLUG 1
6 4824764 VALVE HOUSING 1
7 4677094 SPRING 1
8 10265160 SEAL GASKET 1
9 17089874 WASHER 2
10 17282281 O-RING 1
11 17282581 O-RING 2
12 16605624 HEXAGON BOLT 2
13 10257460 SEAL GASKET 1
14 4676507 COVER 1
15 10278301 LOCK PLUG 1
16 16993511 LOCK PLUG 2
17 10296260 SEAL GASKET 2

Applies to engines

Engine Family
8281SRi26.02A560 8281SRi26 view
GE8281SRi26.01A955 GE8281SRi26 view
GE8281SRi26.02A955 GE8281SRi26 view
GS8281SRi26.02 GS8281SRi26 view
GE8281SRG75.10A80E GE8281SRG75 view
GE8281SRG85.10A80E GE8281SRG85 view
GS8281SRi26.01A061 GS8281SRi26 view
GS8281SRi26.01A601 GS8281SRi26 view
GS8281SRi26.01A602 GS8281SRi26 view
GS8281SRi26.01A603 GS8281SRi26 view
GS8281SRi26.01A604 GS8281SRi26 view
GS8281SRi26.01A651 GS8281SRi26 view
GS8281SRi26.01A652 GS8281SRi26 view
8281SRG75.10 8281SRG75 view
8281SRG85.10 8281SRG85 view
8281SRi26.01 8281SRi26 view
8281SRi16.01 8281SRi16 view
8281SRi17.00 8281SRi17 view
8281SRi26.02 8281SRi26 view
8281SRE10.00 8281SRE10 view
8281SRi26.01A550 8281SRi26 view
8281SRi26.01A580 8281SRi26 view
8281SRi26.02A550 8281SRi26 view
8281SRi26.02A580 8281SRi26 view
8281SRG75.10A500 8281SRG75 view
8281SRG85.10A500 8281SRG85 view
GE8281SRi26.02N970 GE8281SRi26 view
GE8281SRi26.02R970 GE8281SRi26 view
