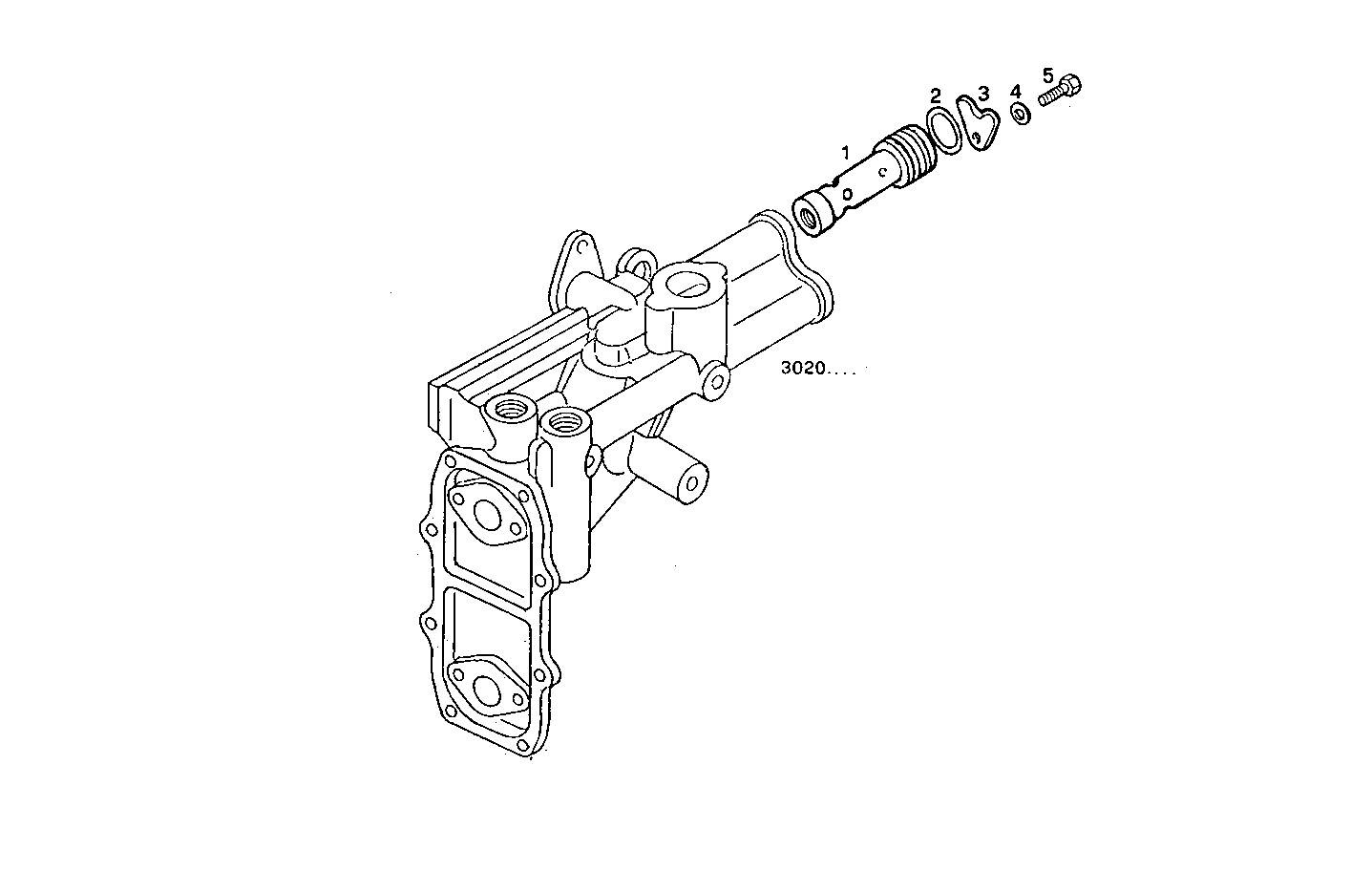

OIL PRESSURE VALVE
Assembly ID: 3030.021
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 98435128 | VALVE | 1 | ||
| 2 | 17288881 | O-RING | 1 | ||
| 3 | 4846397 | CONNECTING PLATE | 1 | ||
| 4 | 17089474 | SPRING WASHER | 1 | ||
| 5 | 16690524 | SCREW | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8361SRi12.00 | 8361SRi12 | view |
| 8361SRE11.00 | 8361SRE11 | view |
| 8361SRE11.00A001 | 8361SRE11 | view |
| 8361SRI12.00A800 | 8361SRi12 | view |
