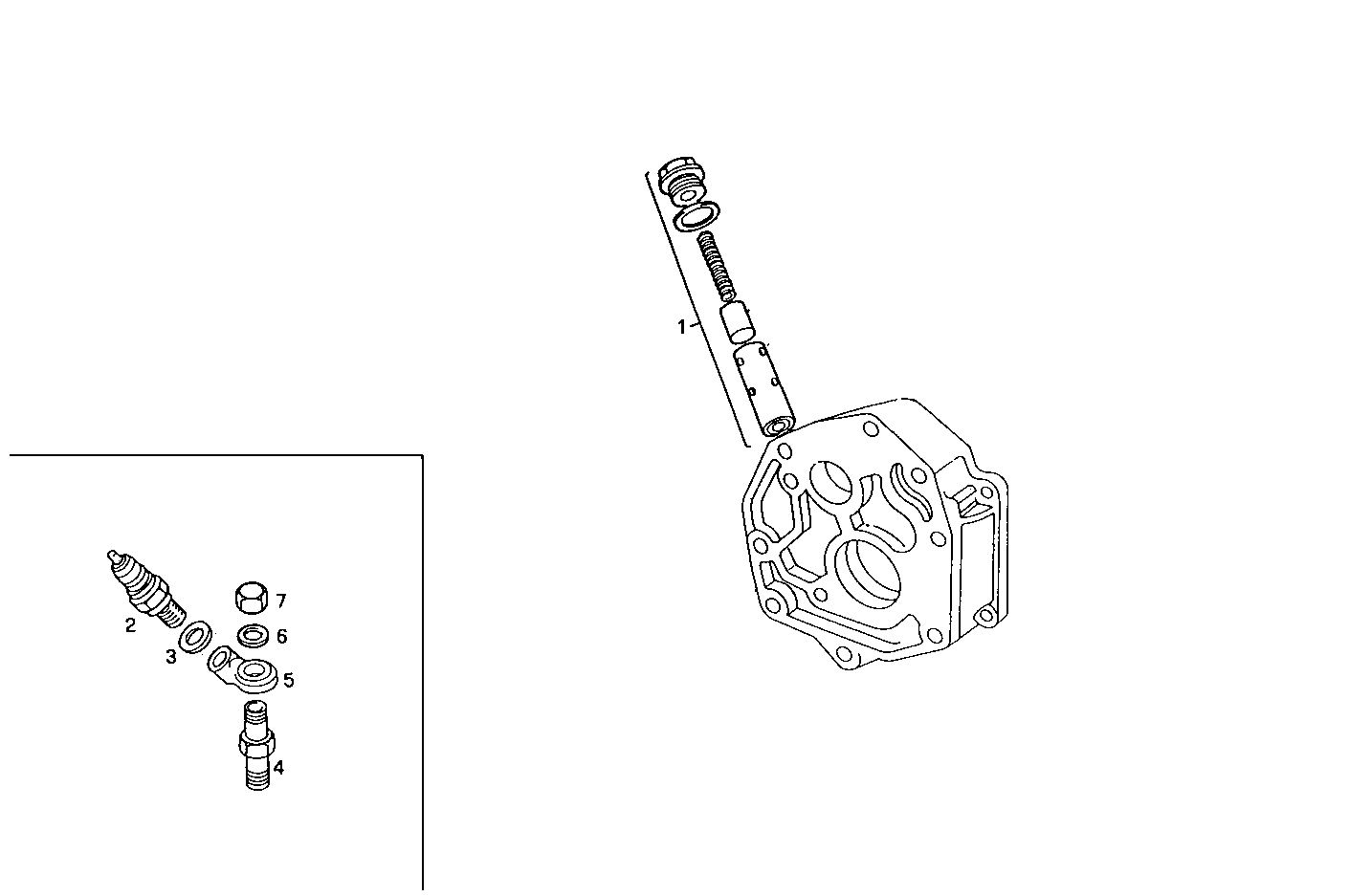

OIL PRESSURE VALVE
Assembly ID: 3030.033
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 99438751 | OIL PUMP VALVE | 1 | ||
| 2 | 98469129 | PRESSURE SWITCH | 1 | ||
| 3 | 10296160 | SEAL GASKET | 1 | ||
| 4 | 7302029 | THREADED UNION | 1 | ||
| 5 | 7300895 | SWIVEL COUPLING | 1 | ||
| 6 | 10280060 | WASHER | 2 | ||
| 7 | 10182811 | PLUG | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8141.67.2000 | 8141.67 | view |
| 8141i67.02A010 | 8141i67 | view |
