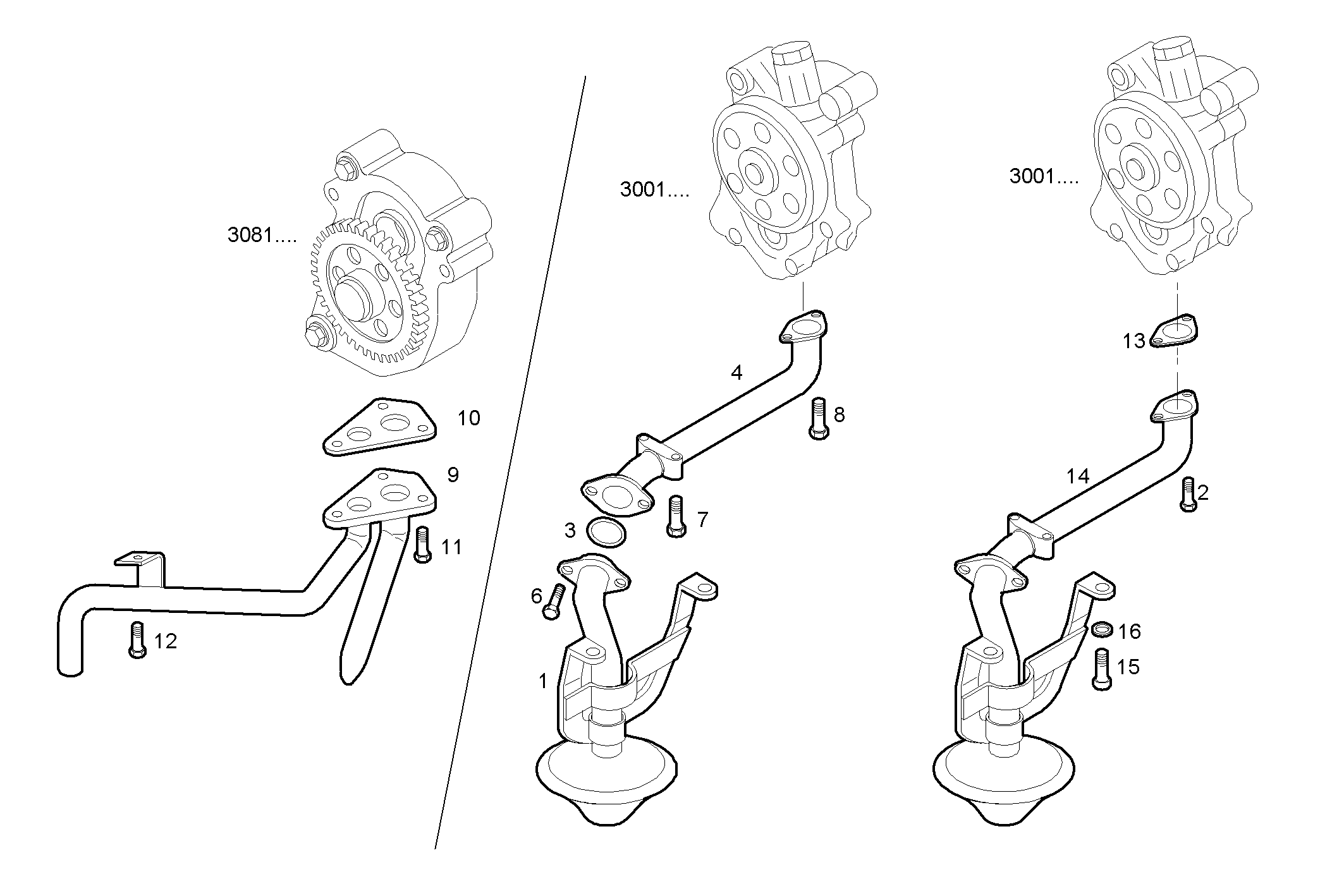

SUCTION STRAINER
Assembly ID: 3050.031
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 99475585 | SUCTION STRAINER | 1 | ||
| 2 | 16592225 | HEXAGON BOLT | 2 | ||
| 3 | 17289481 | O-RING | 1 | ||
| 4 | 99475589 | OIL LINE | 1 | ||
| 6 | 16586225 | HEXAGON BOLT | 2 | ||
| 7 | 16592525 | HEXAGON BOLT | 2 | ||
| 8 | 16673835 | HEXAGON BOLT | 2 | ||
| 9 | 500388917 | CONNECTION PIPE | 1 | ||
| 10 | 500388968 | FLAT ENGINE GASKET | 1 | ||
| 11 | 16673635 | HEXAGON BOLT | 3 | ||
| 12 | 16597925 | HEXAGON BOLT | 1 | ||
| 13 | 500343518 | FLAT ENGINE GASKET | 1 | ||
| 14 | 504128916 | SUCTION STRAINER | 1 | ||
| 15 | 16690424 | CYLIND-HEAD SCREW | 4 | ||
| 16 | 17096824 | WASHER | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3BE0684E*B101 | CURSOR 13 - TIER 2 | view |
| F3BE0684G*E901 | CURSOR 13 - TIER 3 | view |
| F3BE0684H*E902 | CURSOR 13 - TIER 3 | view |
| F3BE0684H*E901 | CURSOR 13 - TIER 3 | view |
| F3CE0684B*E003 | CURSOR 13 TCD - TIER 3 | view |
| F3BE0684Q*E901 | CURSOR 13 - TIER 3 | view |
| F3BE0684R*E901 | CURSOR 13 - TIER 3 | view |
| F3BE0684Q*E905 | CURSOR 13 - TIER 3 | view |
| F3BE0684R*E905 | CURSOR 13 - TIER 3 | view |
| F3CE0684B*E005 | CURSOR 13 TCD - TIER 3 | view |
| F3BE0684Q*E902 | CURSOR 13 - TIER 3 | view |
