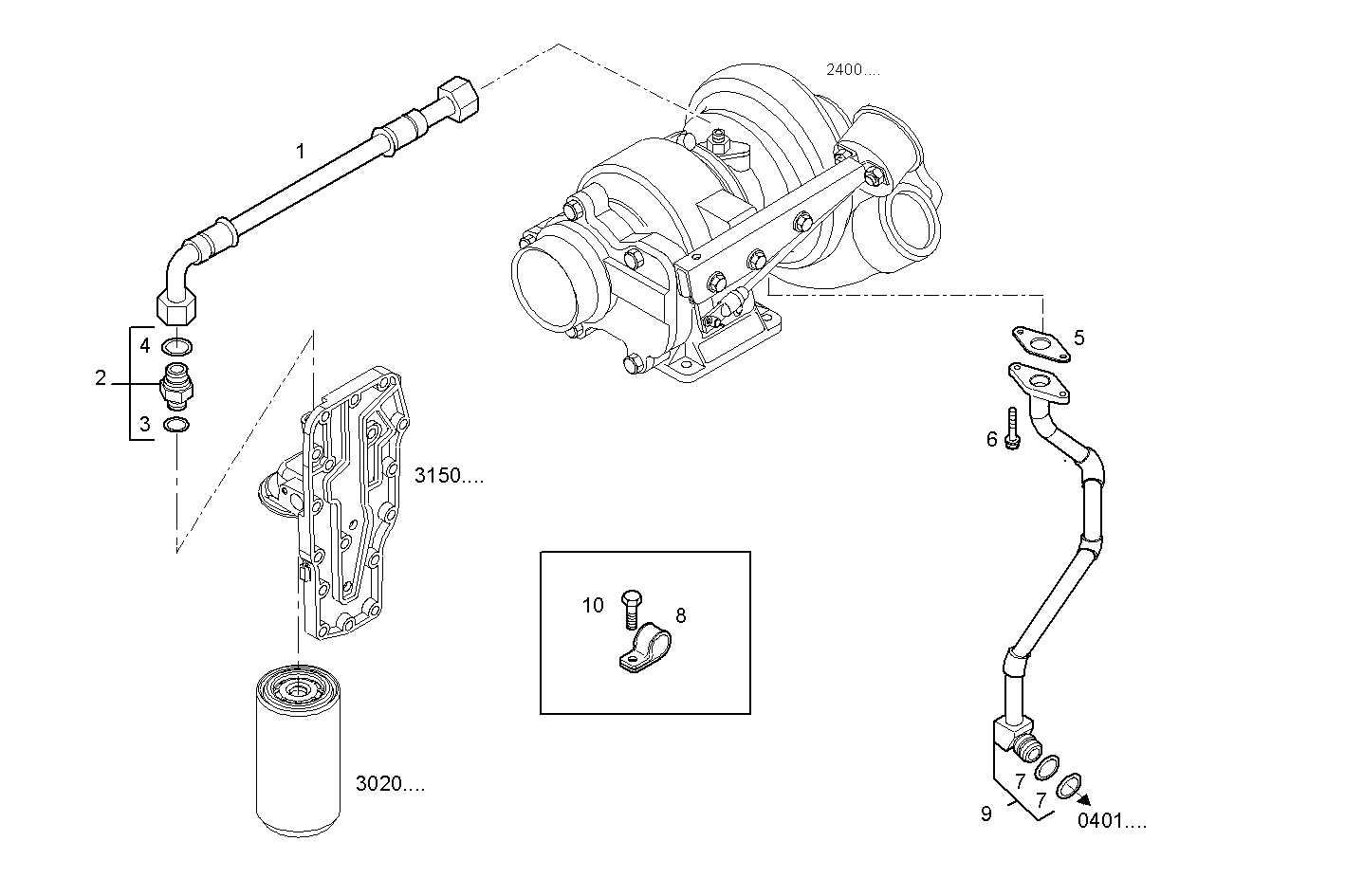

TURBOCHARGER OIL LINES

Assembly ID: 3063.008

TURBOCHARGER OIL LINES

Parts

# Part number Description Note Quantity
1 504084096 OIL LINE 1
2 4895107 THREADED UNION 1
3 4899107 O-RING 1
4 4899108 O-RING 1
5 4891288 FLAT ENGINE GASKET 1
6 4899079 HEXAGON BOLT 2
7 17281881 O-RING 2
8 4896893 CLIP 1
9 504107027 OIL LINE 1
10 16673635 HEXAGON BOLT 1

Applies to engines

Engine Family
F4GE0687A*B600 NEF 6 mechanic. view
N67MNTF41.00 NEF 6 mechanic. view
N67MNTF42.00 NEF 6 mechanic. view
N67MNTF41.10 NEF 6 mechanic. view
N67MNTF42.10 NEF 6 mechanic. view
F4GE0687A*B601 NEF 6 mechanic. view
N67MNTF40.01 NEF 6 mechanic. view
N67MNTF40.01A001 NEF 6 mechanic. - TIER 2 view
N67MNTF40.10 NEF 6 mechanic. view
N67MNTF41.00A001 NEF 6 mechanic. view
N67MNTF42.00A001 NEF 6 mechanic. view
