TURBOCHARGER OIL LINES

Assembly ID: 3063.019

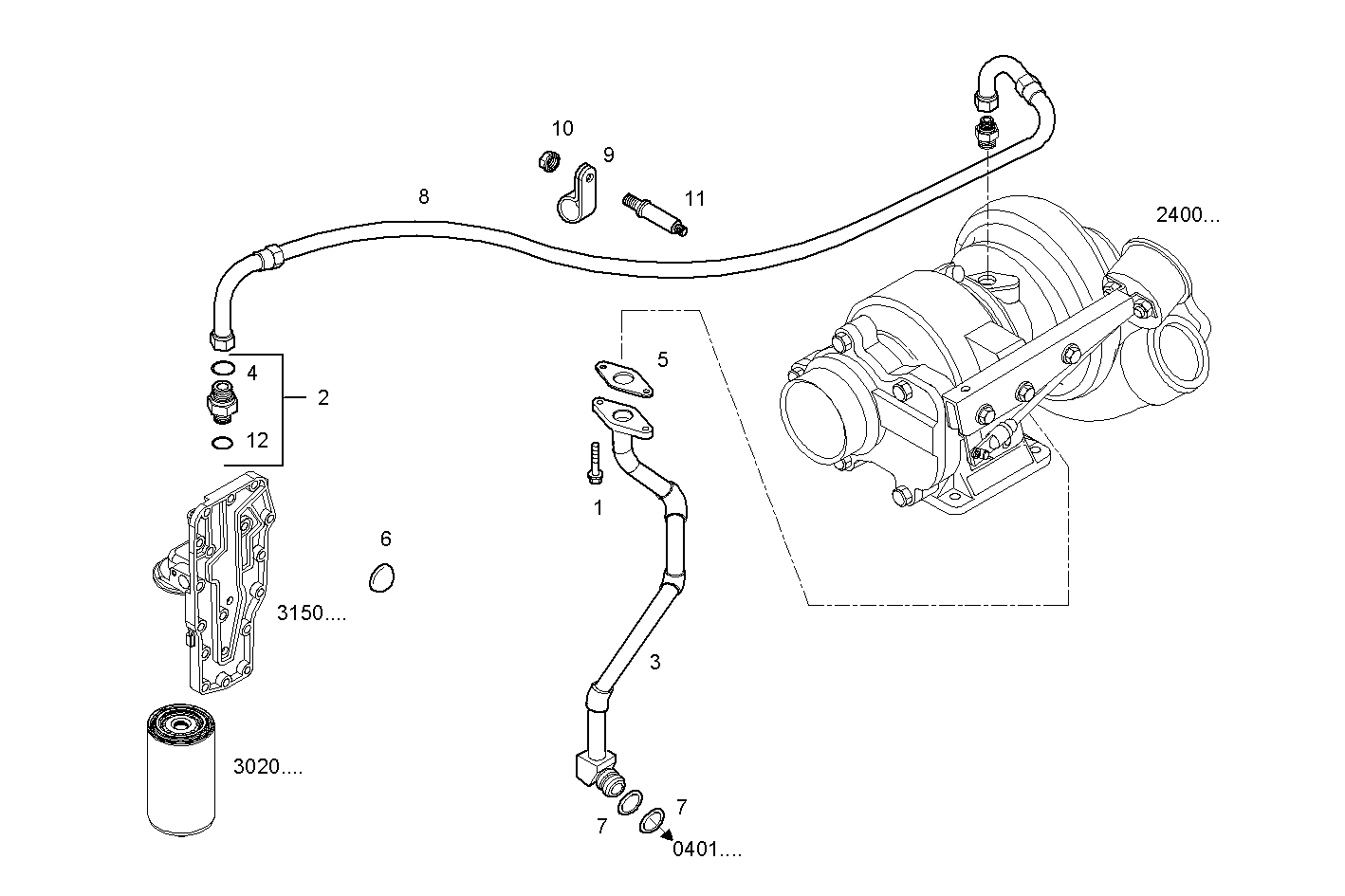

TURBOCHARGER OIL LINES

Parts

# Part number Description Note Quantity
1 4899079 HEXAGON BOLT 2
2 4895107 THREADED UNION 1
3 504079069 OIL LINE 1
4 4899108 O-RING 1
5 4891288 FLAT ENGINE GASKET 1
6 4895089 PLUG 1
7 17281881 O-RING 2
8 4899377 OIL LINE 1
9 4899436 CLIP 1
10 17044735 NUT 1
11 504129243 COLLAR SCREW 1
12 4899107 O-RING 1

Applies to engines

Engine Family
F4AE0684N*D103 NEF 6 electron. - TIER 2 view
N60ENTE24.00A002 NEF 6 electron. - TIER 2 view
F4AE0684P*D102 NEF 6 electron. - TIER 2 view
N60ENTE22.00A001 NEF 6 electron. - TIER 2 view
F4HE9684P*J100 NEF 6 electron. - TIER 3 view
N67ENTX20.00A004 NEF 6 electron. - TIER 3 view
F4HE9684W*J101 NEF 6 electron. - TIER 3 view
N67ENTX24.00A001 NEF 6 electron. - TIER 3 view
