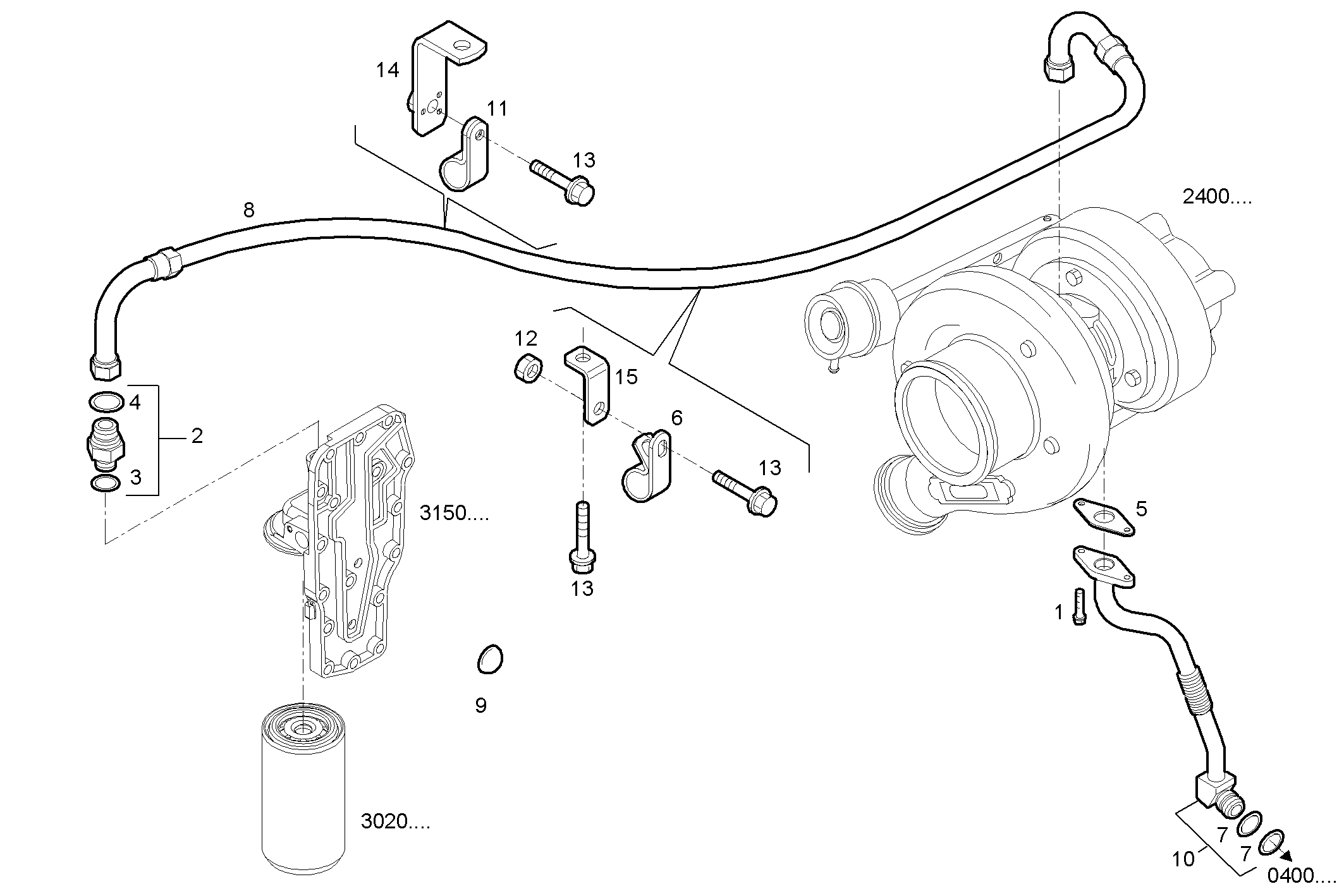

TURBOCHARGER OIL LINES

Assembly ID: 3063.023

TURBOCHARGER OIL LINES

Parts

# Part number Description Note Quantity
1 4899079 HEXAGON BOLT 2
2 4895107 THREADED UNION 1
3 4899107 O-RING 1
4 4899108 O-RING 1
5 4891288 FLAT ENGINE GASKET 1
6 4896893 CLIP 1
7 17281881 O-RING 2
8 504084096 OIL LINE 1
9 4895089 PLUG 1
10 504010562 OIL LINE 1
11 4895579 CLIP 1
12 17044735 NUT 1
13 4899068 HEXAGON BOLT 3
14 99477631 FASTENING BRACKET 1
15 98459285 FASTENING BRACKET 1

Applies to engines

Engine Family
F4AE0684F*D101 NEF 6 electron. - TIER 2 view
F4AE0684J*D NEF 6 electron. - TIER 2 view
F4AE0684H*D101 NEF 6 electron. - TIER 2 view
F4AE0684E*D101 NEF 6 electron. - TIER 2 view
F4AE0684B*D102 NEF 6 electron. - TIER 2 view
F4AE0684G*D102 NEF 6 electron. - TIER 2 view
F4AE0684B*D103 NEF 6 electron. - TIER 2 view
F4HE9687P*J100 NEF 6 electron. - TIER 3 view
F4HE9687A*J100 NEF 6 electron. - TIER 3 view
F4HE9687D*J100 NEF 6 electron. - TIER 3 view
