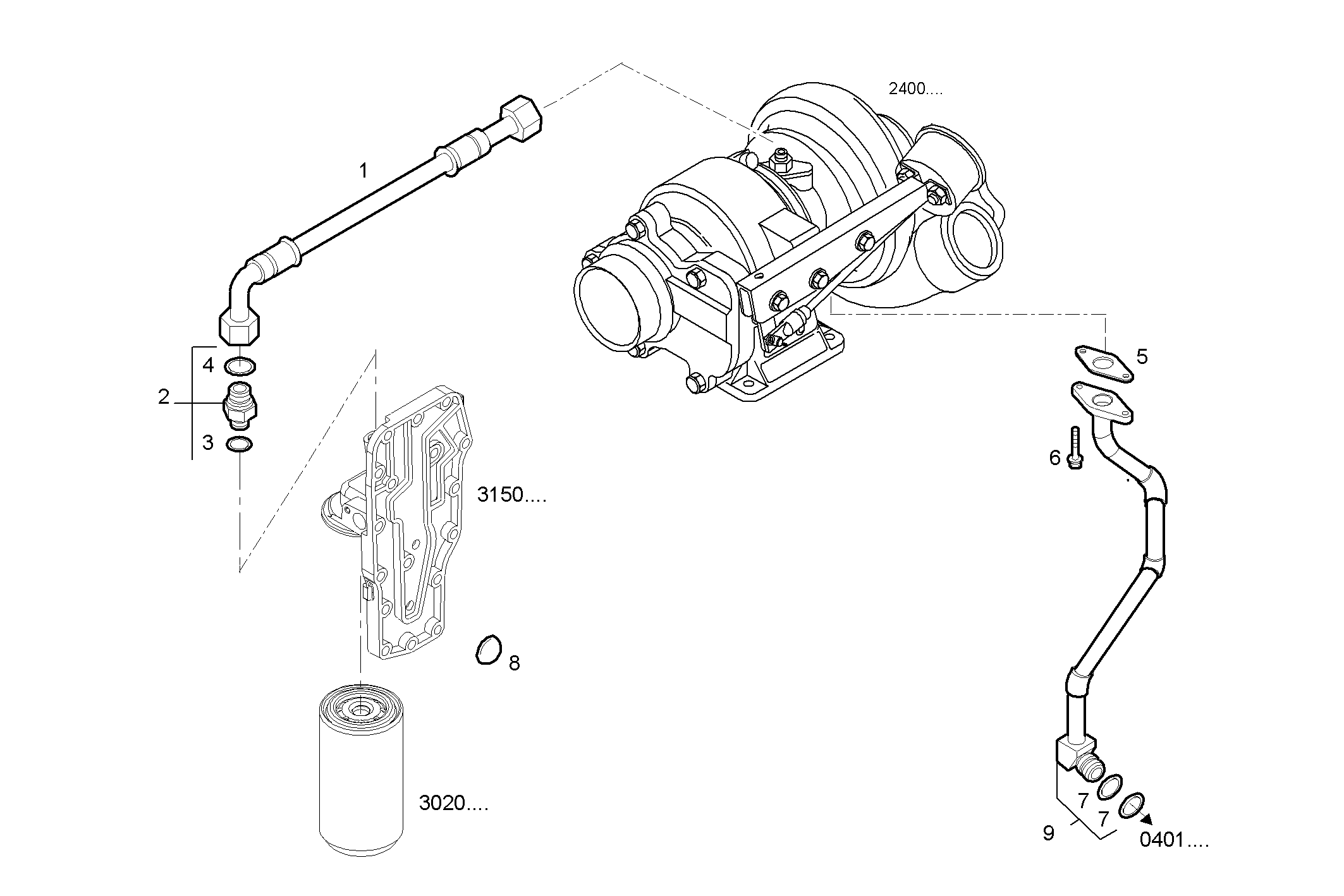

TURBOCHARGER OIL LINES
Assembly ID: 3063.024
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504075228 | OIL LINE | 1 | ||
| 2 | 4895107 | THREADED UNION | 1 | ||
| 3 | 4899107 | O-RING | 1 | ||
| 4 | 4899108 | O-RING | 1 | ||
| 5 | 4891288 | FLAT ENGINE GASKET | 1 | ||
| 6 | 4899079 | HEXAGON BOLT | 2 | ||
| 7 | 17281881 | O-RING | 2 | ||
| 8 | 4895089 | PLUG | 1 | ||
| 9 | 504079880 | OIL LINE | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4AE0682D*C159 | NEF 6 electron. - EURO 3 | view |
| F4AE0682C*C119 | NEF 6 electron. - EURO 3 | view |
| F4AE3682F*P102 | NEF 6 electron. - EURO 4 | view |
| F4AE3681B*P107 | NEF 6 electron. - EURO 4 | view |
| N60ENT426.00A003 | NEF 6 electron. - EURO 4 | view |
| F4AE3681A*R100 | NEF 6 electron. - EURO 4 | view |
| N60ENT429.00A001 | NEF 6 electron. - EURO 4 | view |
| F4AE3681B*R107 | NEF 6 electron. - EURO 4 | view |
