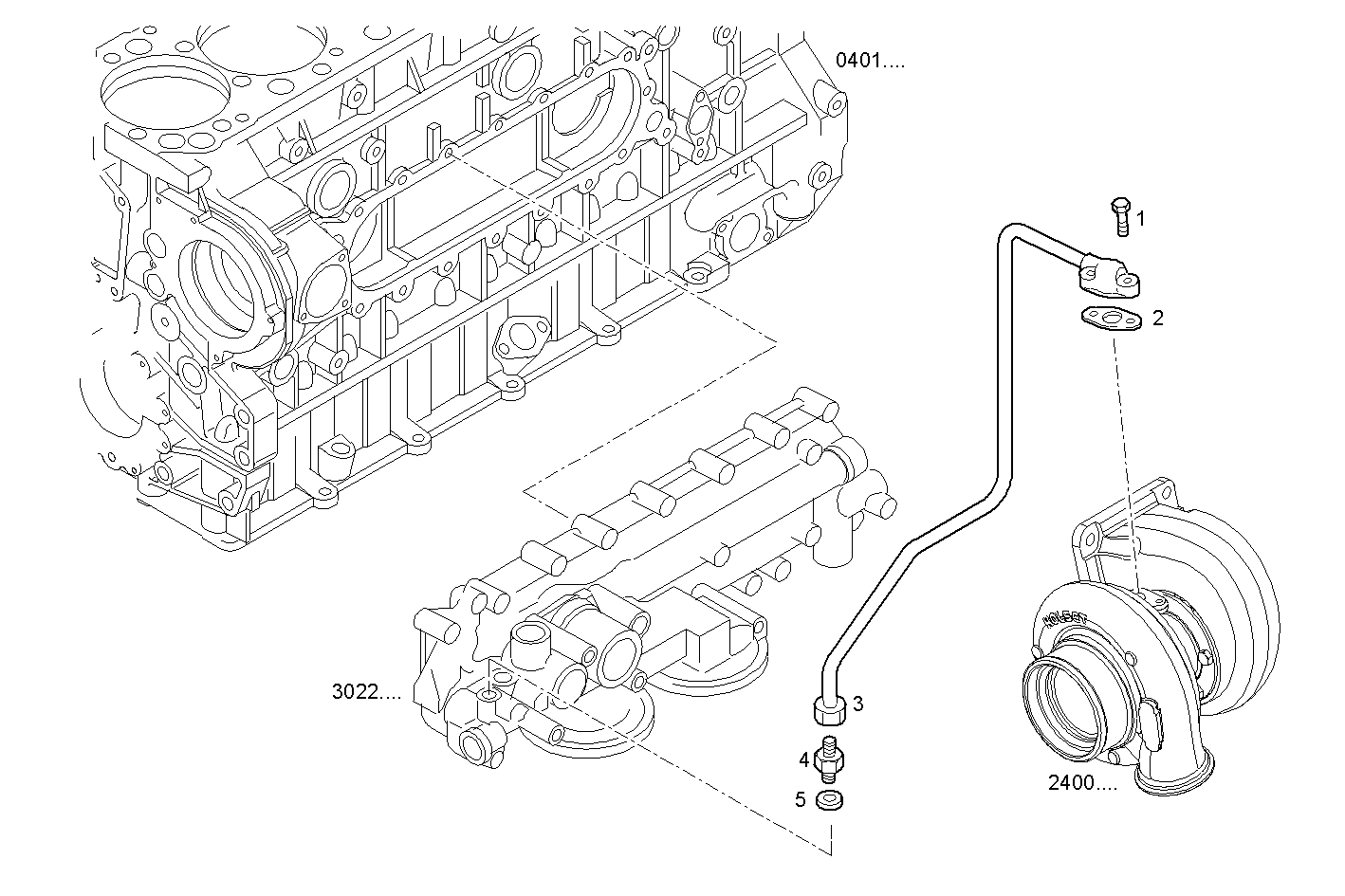

OIL DELIVERY LINE
Assembly ID: 3064.005
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 16586625 | HEXAGON BOLT | 2 | ||
| 2 | 61318303 | GASKET | 1 | ||
| 3 | 504066924 | OIL LINE | 1 | ||
| 4 | 504081274 | THREADED UNION | 1 | ||
| 5 | 99489019 | WASHER | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3AE0687A*B301 | CURSOR 10 - TIER 2 | view |
| C10ENTE20.00 | CURSOR 10 - TIER 2 | view |
| C10ENTD20.00 | CURSOR 10 - TIER 2 | view |
| F3AE0684J*B901 | CURSOR 10 - TIER 2 | view |
| F3AE0684J*B902 | CURSOR 10 - TIER 2 | view |
| F3AE0684M*B903 | CURSOR 10 - TIER 2 | view |
| F3AE0684P*E904 | CURSOR 10 - TIER 3 | view |
| C10ENTD20.00A800 | CURSOR 10 - TIER 2 | view |
| F3AE0684P*E905 | CURSOR 10 - TIER 3 | view |
| F3AE0684P*E906 | CURSOR 10 - TIER 3 | view |
| F3AE0684L*E906 | CURSOR 10 - TIER 3 | view |
| F3AE9687A*E001 | CURSOR 10 - TIER 3 | view |
| C10ENTX20.00 | CURSOR 10 - TIER 3 | view |
| C10ENTX20.00A800 | CURSOR 10 - TIER 3 | view |
| C10ENTX20.00A801 | CURSOR 10 - TIER 3 | view |
| F3AE9687B*E001 | CURSOR 10 - TIER 3 | view |
| F3AE9687C*E001 | CURSOR 10 - TIER 3 | view |
| C10ENTX20.00A802 | CURSOR 10 - TIER 3 | view |
| F3AE0684K*E904 | CURSOR 10 - TIER 3 | view |
| F3AE0687A*B302 | CURSOR 10 - TIER 2 | view |
| C10ENTD20.20 | CURSOR 10 - TIER 2 | view |
