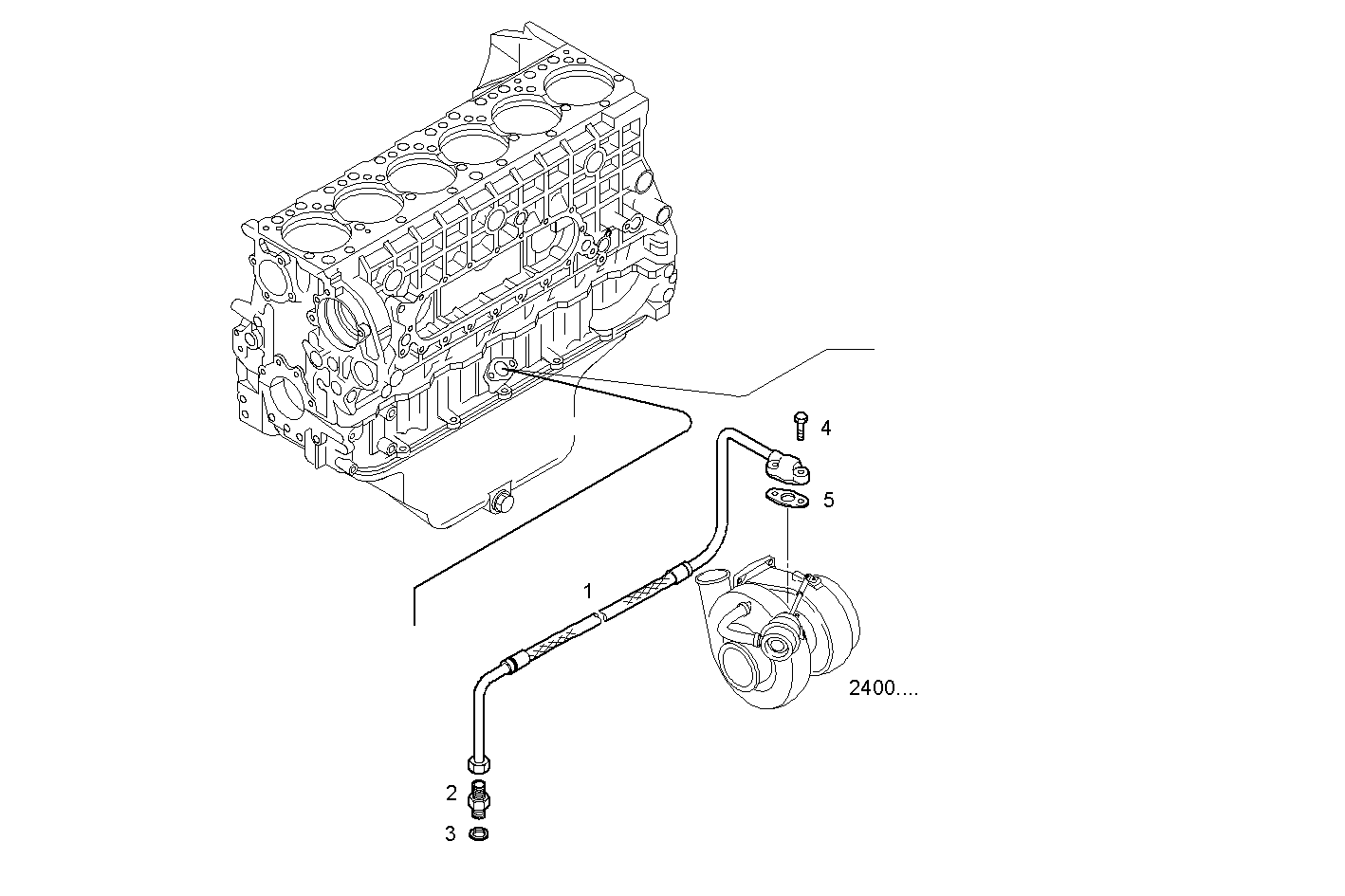

OIL DELIVERY LINE
Assembly ID: 3064.015
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504194929 | OIL LINE | 1 | ||
| 2 | 16500314 | THREADED UNION | 1 | ||
| 3 | 99489019 | WASHER | 1 | ||
| 4 | 16586625 | HEXAGON BOLT | 2 | ||
| 5 | 504052088 | FLAT ENGINE GASKET | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3BE9685A*E001 | CURSOR 13 - TIER 3 | view |
| C13ENTX60.00 | CURSOR 13 - TIER 3 | view |
| C13ENTX61.00 | CURSOR 13 - TIER 3 | view |
| C13ENTX62.00 | CURSOR 13 - TIER 3 | view |
| CURSOR13TE3X.R991 | CURSOR 13 - TIER 3 | view |
| CURSOR13TE3X.A001 | CURSOR 13 - TIER 3 | view |
| CURSOR13TE3X.A008 | CURSOR 13 - TIER 3 | view |
| CURSOR13TE3X.A011 | CURSOR 13 - TIER 3 | view |
