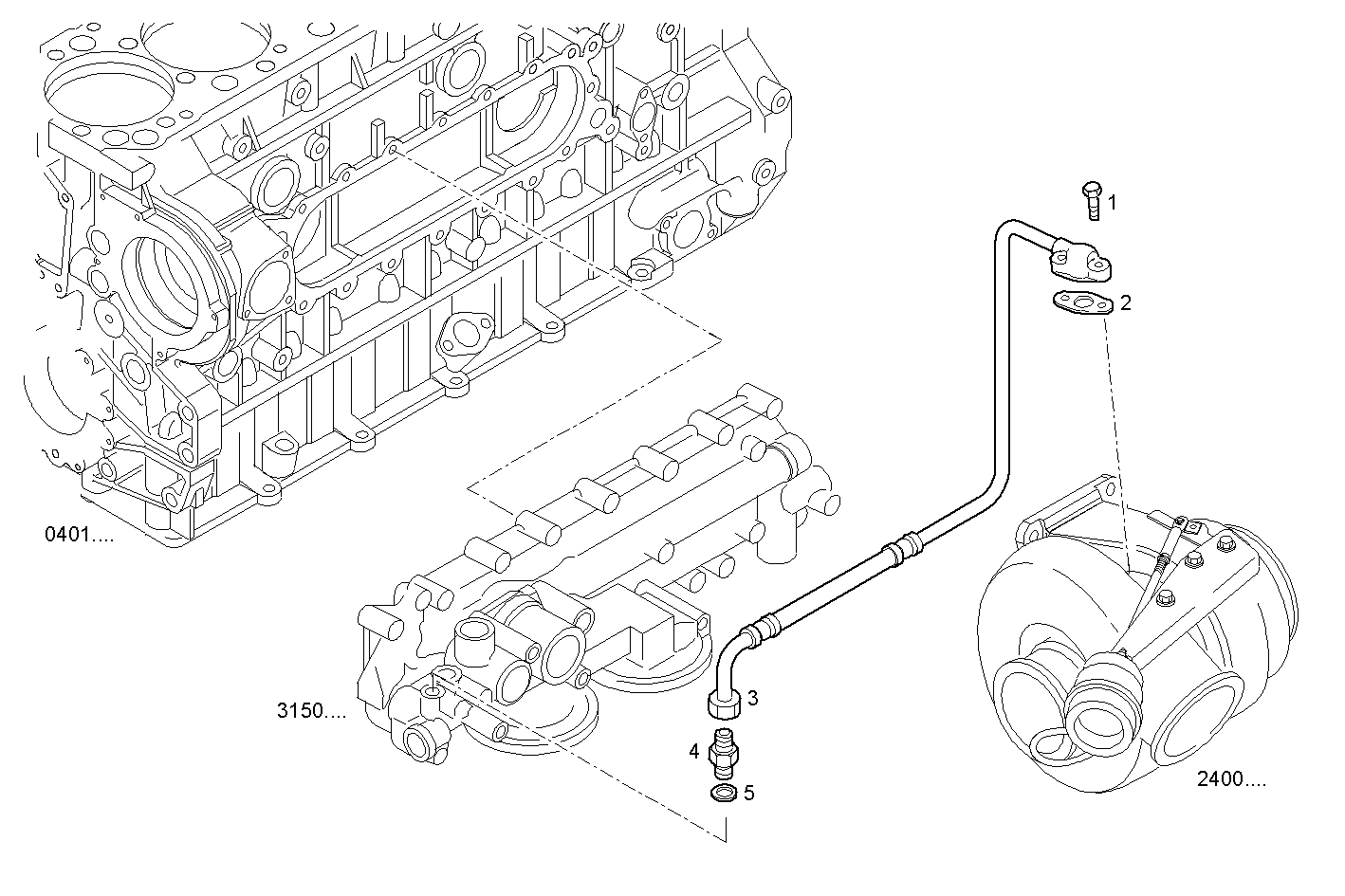

OIL DELIVERY LINE
Assembly ID: 3064.019
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 16586625 | HEXAGON BOLT | 2 | ||
| 2 | 61318303 | GASKET | 1 | ||
| 3 | 504215039 | OIL LINE | 1 | ||
| 4 | 504081274 | THREADED UNION | 1 | ||
| 5 | 99489019 | WASHER | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3AE0684N*E907 | CURSOR 10 - TIER 3 | view |
