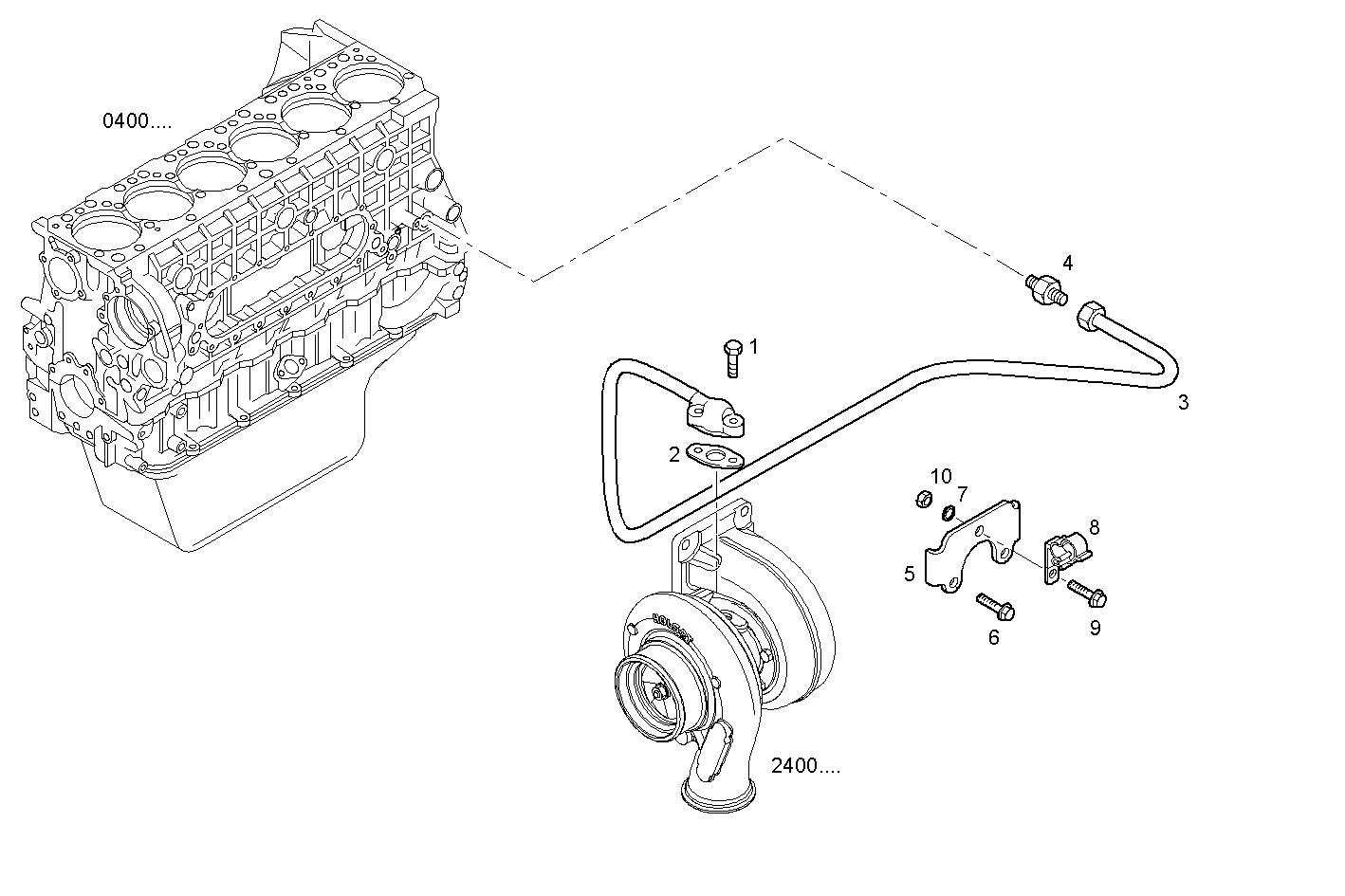

OIL DELIVERY LINE

Assembly ID: 3064.022

OIL DELIVERY LINE

Parts

# Part number Description Note Quantity
1 16586625 HEXAGON BOLT 2
2 61318303 GASKET 1
3 504215637 OIL LINE 1
4 504081274 THREADED UNION 1
5 504213767 RETAINER 1
6 16691424 HEXAGON BOLT 2
7 16666716 WASHER 1
8 99453771 RETAINER 1
9 16673635 HEXAGON BOLT 1
10 17037925 HEXAGON NUT 1

Applies to engines

Engine Family
F2CE9685A*E001 CURSOR 9 - 2002/88/CE - TIER 3 view
C87ENTX60.00 CURSOR 9 - 2002/88/CE - TIER 3 view
CURSOR87TE1D.R991 CURSOR 9 - 2002/88/CE - TIER 3 view
CURSOR87TE1D.A001 CURSOR 9 - 2002/88/CE - TIER 3 view
CURSOR87TE1D.A002 CURSOR 9 - 2002/88/CE - TIER 3 view
GECURSOR270ED.R990 GECURSOR 9 - 2002/88/CE TIER 3 view
CURSOR87TE1D.S550 CURSOR 9 - 2002/88/CE - TIER 3 view
CURSOR87TE1D.A559 CURSOR 9 - 2002/88/CE - TIER 3 view
GECURSOR250ED.R990 GECURSOR 9 - TIER 3 view
GECURSOR250ED.A71M GECURSOR 9 - TIER 3 view
GECURSOR250ED.A551 GECURSOR 9 - TIER 3 view
CURSOR87TE1D.A008 CURSOR 9 - 2002/88/CE - TIER 3 view
