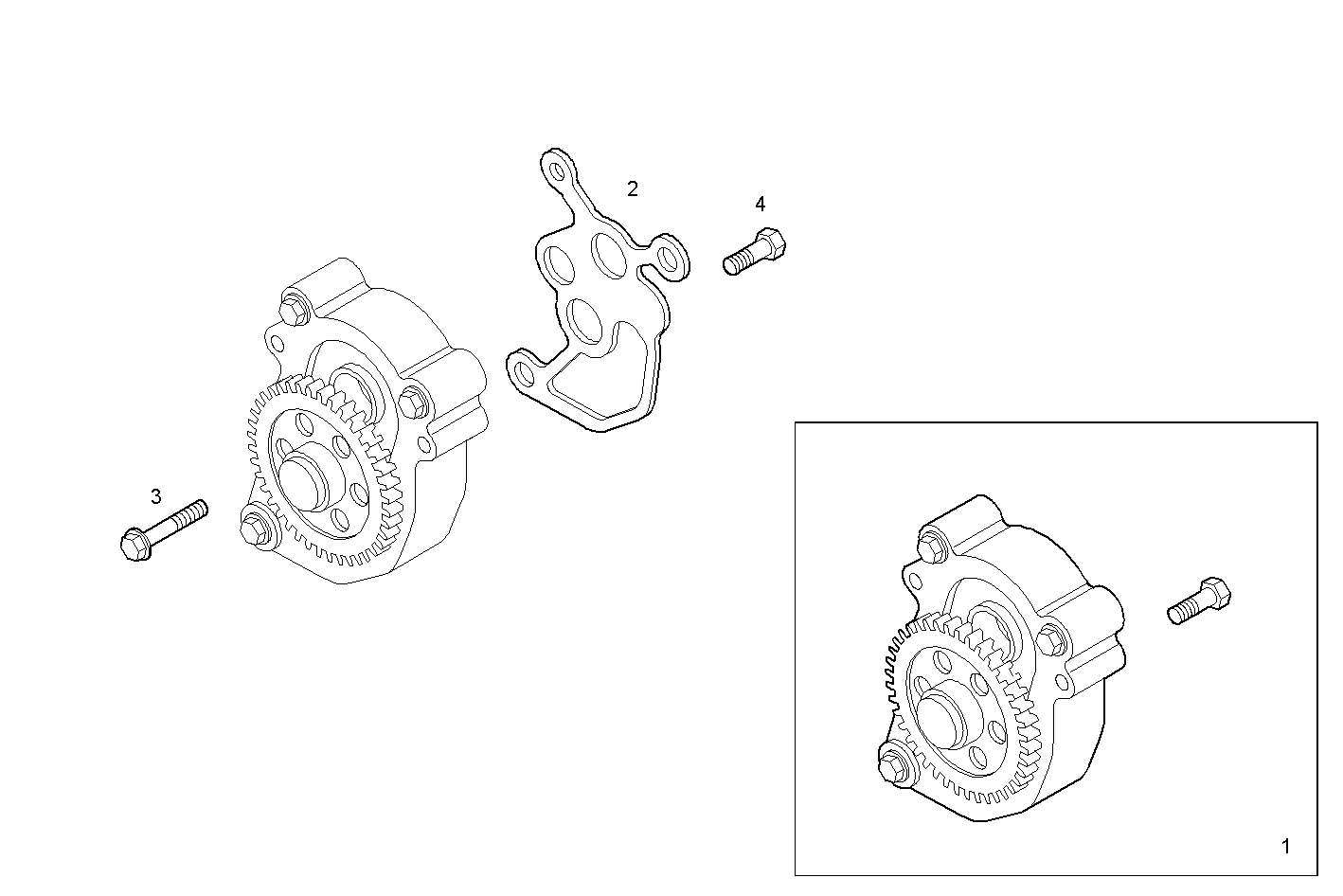

AUXILIARY OIL PUMP
Assembly ID: 3081.000
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504155933 | LUBE OIL PUMP | 1 | ||
| 2 | 500387958 | FLAT ENGINE GASKET | 1 | ||
| 3 | 16592425 | HEXAGON BOLT | 2 | ||
| 4 | 16586725 | HEXAGON BOLT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3BE0684E*B101 | CURSOR 13 - TIER 2 | view |
| F3BE0684G*E901 | CURSOR 13 - TIER 3 | view |
| F3BE0684H*E902 | CURSOR 13 - TIER 3 | view |
| F3BE0684H*E901 | CURSOR 13 - TIER 3 | view |
| F3CE0684B*E003 | CURSOR 13 TCD - TIER 3 | view |
| F3BE0684Q*E901 | CURSOR 13 - TIER 3 | view |
| F3BE0684R*E901 | CURSOR 13 - TIER 3 | view |
| F3BE0684Q*E905 | CURSOR 13 - TIER 3 | view |
| F3BE0684R*E905 | CURSOR 13 - TIER 3 | view |
| F3CE0684B*E005 | CURSOR 13 TCD - TIER 3 | view |
| F3BE0684Q*E902 | CURSOR 13 - TIER 3 | view |
