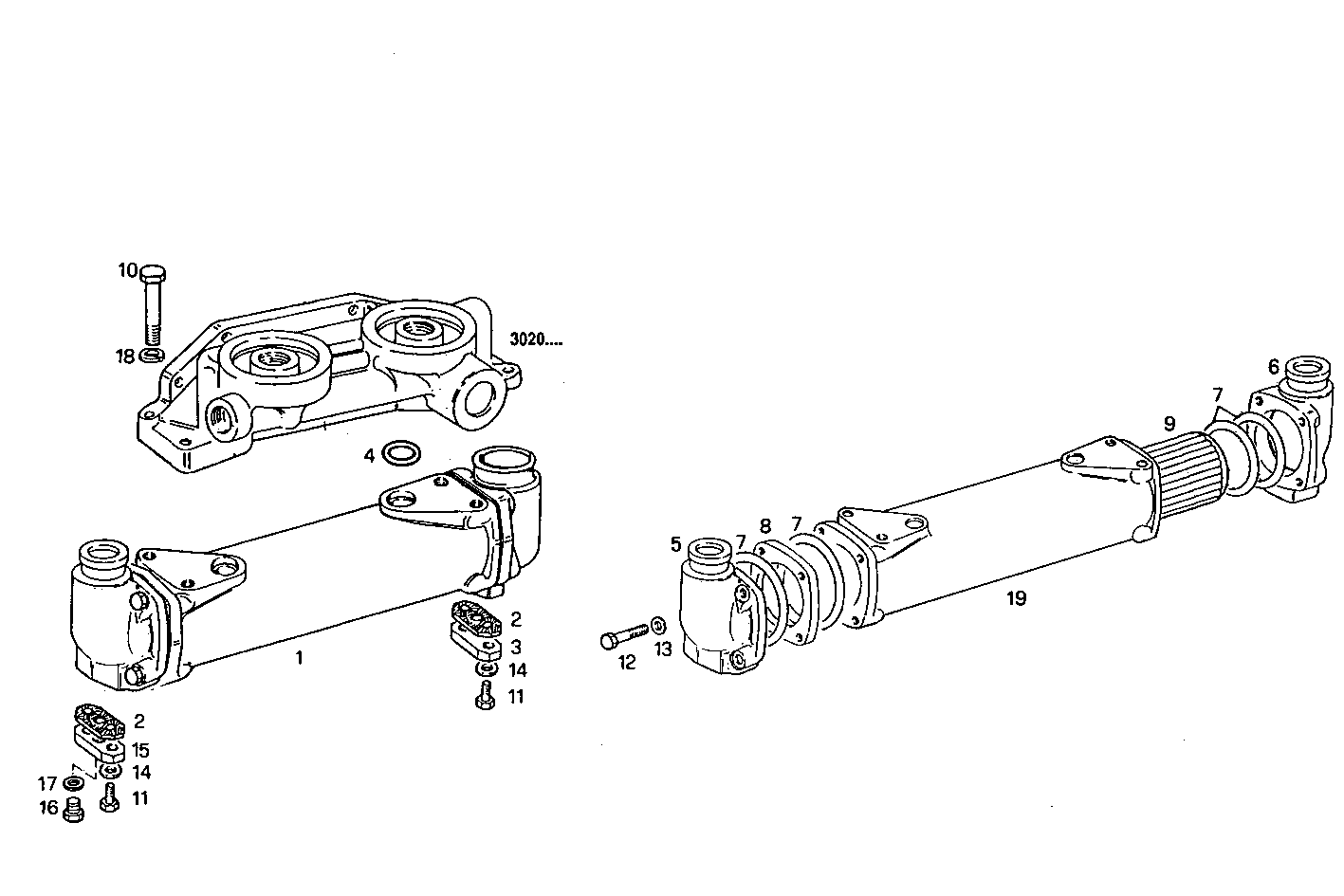

OIL - WATER HEAT EXCHANGER

Assembly ID: 3100.025

OIL - WATER HEAT EXCHANGER

Parts

# Part number Description Note Quantity
1 4803814 HEAT EXCHANGER 1
2 4863948 FLAT ENGINE GASKET 2
3 593763 FLANGE 1
4 17282581 O-RING 2
5 4837667 HEAT EXCHANG.COVER 1
6 4837669 HEAT EXCHANG.COVER 1
7 4837666 O-RING 4
8 4837668 SPACING BAR 1
9 7984209 OIL COOLER 1
10 11307024 SCREW 4
11 16605624 HEXAGON BOLT 4
12 16625734 HEXAGON BOLT 8
13 17089474 SPRING WASHER 12
14 17089574 WASHER 4
15 4872744 COVER 1
16 10300711 LOCK PLUG 1
17 10257060 SEAL GASKET 1
18 17090274 WASHER 4
19 8108242 HEAT EXANGER BODY 1

Applies to engines

Engine Family
GE8210M22.10A64S GE8210M22 view
GE8210SRi26.01A50L GE8210SRi26 view
GE8210SRi26.01A50S GE8210SRi26 view
GE8210SRi26.01A51L GE8210SRi26 view
GE8210SRi26.01A51S GE8210SRi26 view
GE8210SRi26.01A52S GE8210SRi26 view
GE8210SRi26.01A70L GE8210SRi26 view
GE8210SRi26.01A70S GE8210SRi26 view
GE8210SRi26.01A71L GE8210SRi26 view
GE8210SRi26.02A955 GE8210SRi26 view
GE8210SRi27.00A955 GE8210SRi27 view
GS8210SRi26.02 GS8210SRi26 view
GS8210SRi27.00 GS8210SRi27 view
GE8210G75.10A70M GE8210G75 view
GE8210G75.10A70S GE8210G75 view
GE8210G85.00A70M GE8210G85 view
GE8210G85.00A70S GE8210G85 view
GE8210SRG75.10A70E GE8210SRG75 view
GE8210SRG75.10A70M GE8210SRG75 view
GE8210SRG75.10A70S GE8210SRG75 view
GE8210SRG85.10A70E GE8210SRG85 view
GE8210SRG85.10A70M GE8210SRG85 view
GE8210SRG85.10A70S GE8210SRG85 view
GE8210SRi27.01A955 GE8210SRi27 view
GS8210SRi26.02A601 GS8210SRi26 view
GS8210SRi26.02A602 GS8210SRi26 view
GS8210SRi26.02A651 GS8210SRi26 view
GS8210SRi27.00A601 GS8210SRi27 view
8210SRG75.10 8210SRG75 view
8210SRG85.10 8210SRG85 view
8210G75.10 8210G75 view
8210G85.00 8210G85 view
8210SRi26.00 8210SRi26 view
8210SRi26.01 8210SRi26 view
8210i03.00 8210i03 view
8210SRi12.01 8210SRi12 view
8210SRi26.02 8210SRi26 view
8210SRi27.00 8210SRi27 view
8210SRi26.03 8210SRi26 view
8210SRi27.01 8210SRi27 view
8210SRi40.00 8210SRi40 view
8210M22.10 8210M22 view
8210M22.30 8210M22 view
8210SM26.12 8210SM26 view
8210SRM36.12 8210SRM36 view
8210SRM36.32 8210SRM36 view
8210M22.30A003 8210M22 view
8210M22.30A001 8210M22 view
PU8210i03.00A103 PU8210i03 view
8210i03.00A500 8210i03 view
8210i03.00A520 8210i03 view
8210i03.00A550 8210i03 view
8210i03.00A580 8210i03 view
8210SRi26.02A550 8210SRi26 view
8210SRi26.02A580 8210SRi26 view
8210SRi27.00A550 8210SRi27 view
8210SRi27.00A580 8210SRi27 view
8210SRi26.00A550 8210SRi26 view
8210SRi26.00A580 8210SRi26 view
8210SRi26.01A550 8210SRi26 view
8210SRi26.01A580 8210SRi26 view
8210SRi26.03A550 8210SRi26 view
8210SRi26.03A580 8210SRi26 view
8210SRi27.01A550 8210SRi27 view
8210SRi27.01A580 8210SRi27 view
8210SRi26.03A602 8210SRi26 view
8210SRi27.01A603 8210SRi27 view
8210G75.10A500 8210G75 view
8210G85.00A500 8210G85 view
8210SRG75.10A500 8210SRG75 view
8210SRG85.10A500 8210SRG85 view
GE8210SRi26.03R970 GE8210SRi26 view
GE8210SRi27.01N970 GE8210SRi27 view
GE8210SRi27.01R970 GE8210SRi27 view
PU8210I03.00A106 PU8210i03 view
PU8210I03.00A102 PU8210i03 view
PU8210I03.00A100 PU8210i03 view
GE8210SRi26.03A71M GE8210SRi26 view
