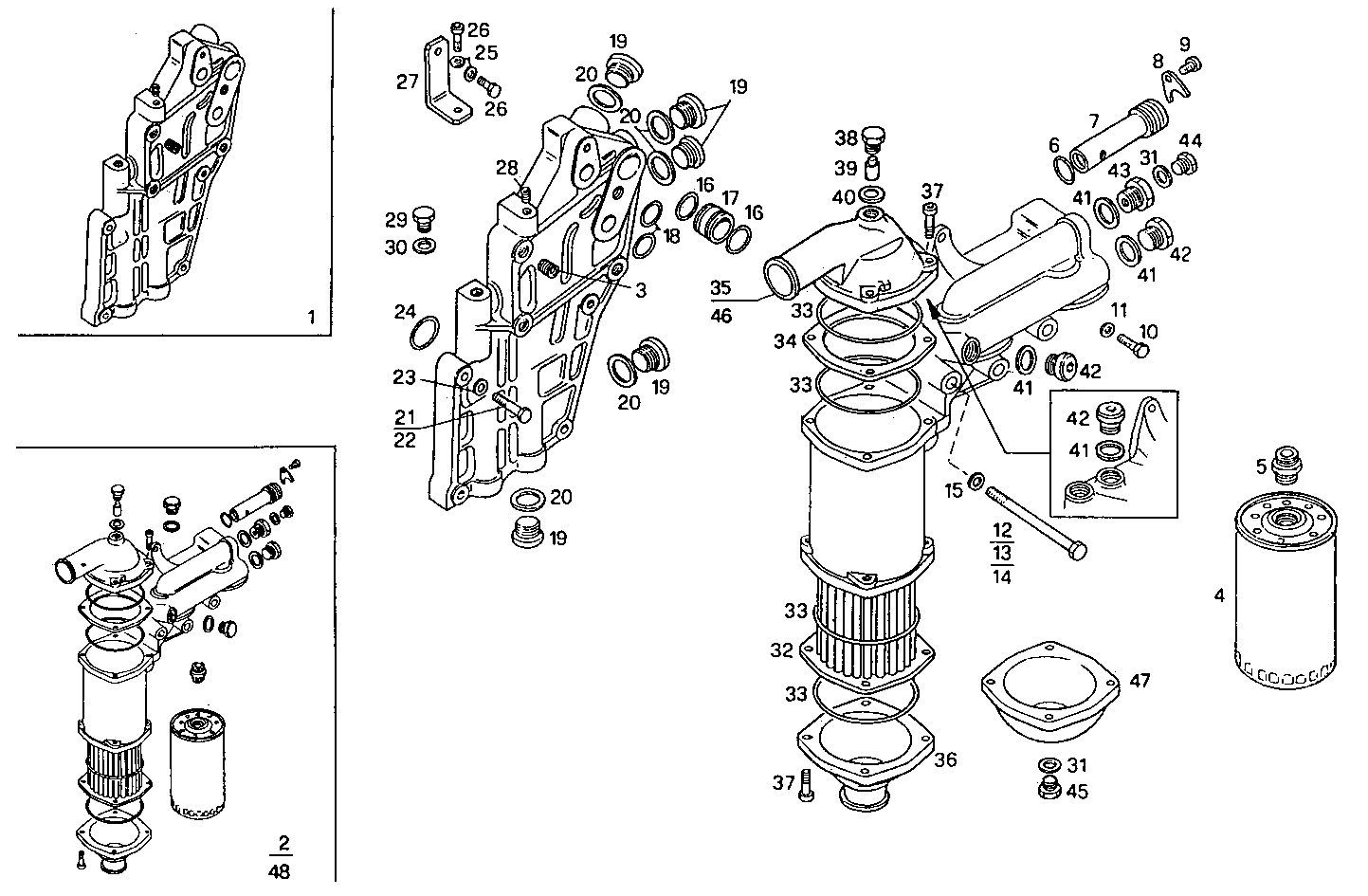

OIL - WATER HEAT EXCHANGER

Assembly ID: 3100.058

OIL - WATER HEAT EXCHANGER

Parts

# Part number Description Note Quantity
1 8017402 SPACING BAR 1
2 8017246 OIL/WATER HEAT EXCHANGER 1
3 17873671 THREADED INSERT 4
4 1907584 OIL FILTER CARTRIDGE 2
5 4741301 THREADED UNION 2
6 17288881 O-RING 1
7 98435128 VALVE 1
8 4846397 CONNECTING PLATE 1
9 16990524 SCREW 1
10 16605624 HEXAGON BOLT 1
11 17094914 WASHER 1
12 15542121 HEXAGON BOLT 2
13 15541721 HEXAGON BOLT 1
14 15541221 HEXAGON BOLT 1
15 17095304 WASHER 4
16 17278981 O-RING 2
17 4853307 CENTERING BUSH 1
18 17282581 O-RING 2
19 16993511 LOCK PLUG 6
20 10296260 SEAL GASKET 6
21 11343821 HEXAGON BOLT 3
22 11234721 HEXAGON BOLT 1
23 17095104 WASHER 4
24 17289281 O-RING 4
25 17089474 SPRING WASHER 2
26 16605524 HEXAGON BOLT 2
27 8017335 RETAINER 1
28 17873271 THREADED INSERT 2
29 16992440 THREADED PLUG 1
30 4858609 WASHER 1
31 4858608 SEAL GASKET 2
32 8017399 TUBE STACK 1
33 99431653 O-RING 4
34 8017862 SPACING BAR 1
35 8017243 COVER 1
36 8017244 COVER 1
37 16690724 CYLIND-HEAD SCREW 8
38 4917793 PLUG 1
39 8105277 SACRIFICAL ANODE 1
40 4858610 WASHER 1
41 98429281 SEAL GASKET 6
42 16994040 PLUG 5
43 8005151 PIPE SOCKET 1
44 16992340 THREADED PLUG 1
45 10263460 WASHER 1
46 8020029 COVER 1
47 8017606 HEAT EXCHANG.COVER 1
48 8020092 OIL/WATER HEAT EXCHANGER 1

Applies to engines

Engine Family
8460M15.12 8460M15 view
