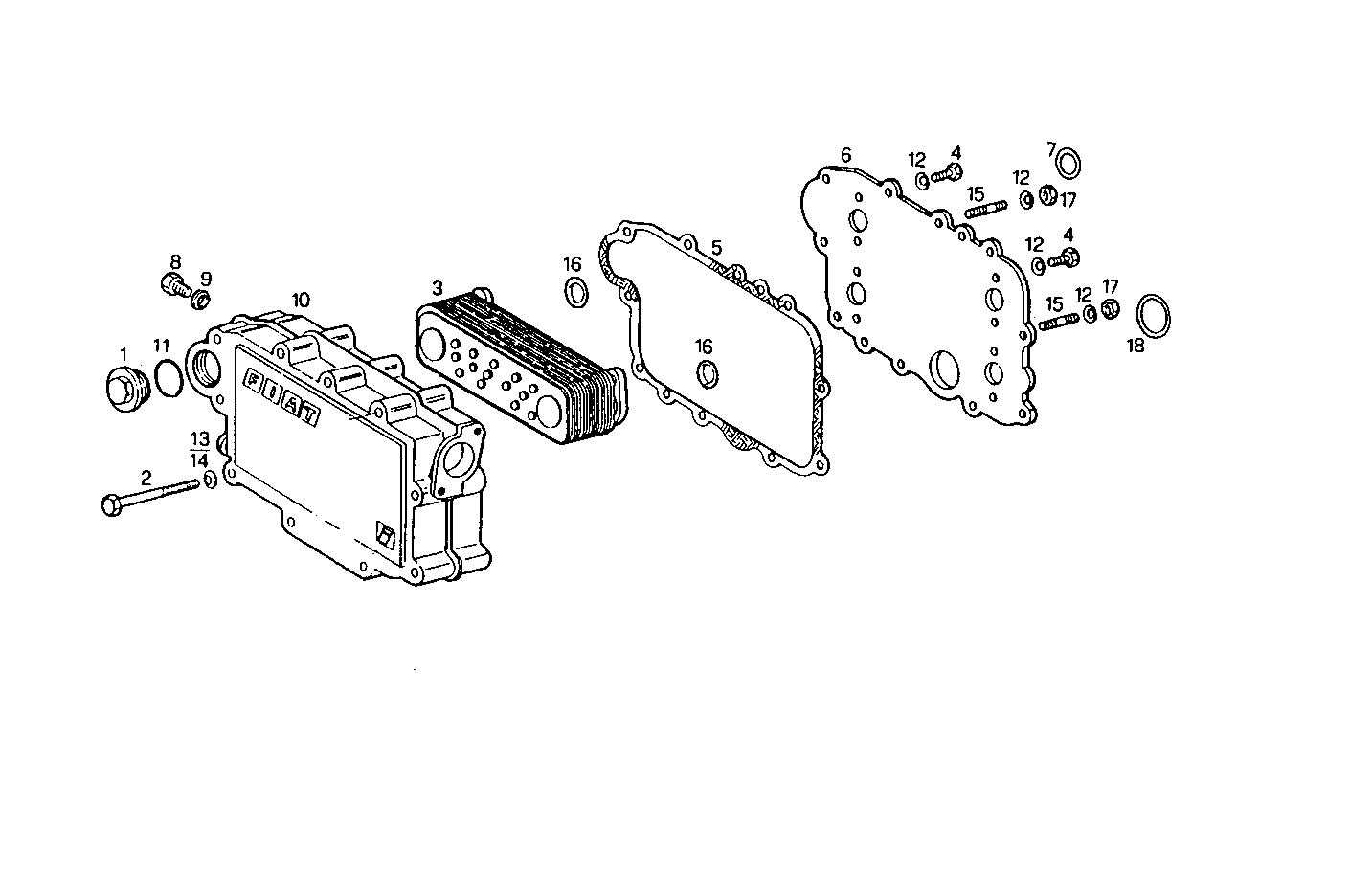

| 1 |
4651357
|
THREADED PLUG
|
|
1
|
|
| 2 |
16045421
|
HEXAGON BOLT
|
|
10
|
|
| 3 |
98415302
|
OIL COOLER
|
|
2
|
|
| 4 |
16043221
|
HEXAGON BOLT
|
|
8
|
|
| 5 |
4863522
|
FLAT ENGINE GASKET
|
|
1
|
|
| 6 |
4718688
|
HEAT EXCHANG.COVER
|
|
1
|
|
| 7 |
17282781
|
O-RING
|
|
4
|
|
|
98465110 |
O-RING |
|
4 |
|
| 8 |
4753563
|
PLUG
|
|
1
|
|
| 9 |
4712006
|
SEAL GASKET
|
|
1
|
|
| 10 |
4807761
|
HEAT EXANGER BODY
|
|
1
|
|
| 11 |
10265460
|
SEAL GASKET
|
|
1
|
|
| 12 |
11198071
|
SPRING WASHER
|
|
10
|
|
| 13 |
12646721
|
WASHER
|
|
8
|
|
| 14 |
17089474
|
SPRING WASHER
|
|
2
|
|
| 15 |
13543121
|
STUD
|
|
2
|
|
| 16 |
17283581
|
O-RING
|
|
4
|
|
| 17 |
17037931
|
HEXAGON NUT
|
|
2
|
|
| 18 |
17283981
|
O-RING
|
|
1
|
|
