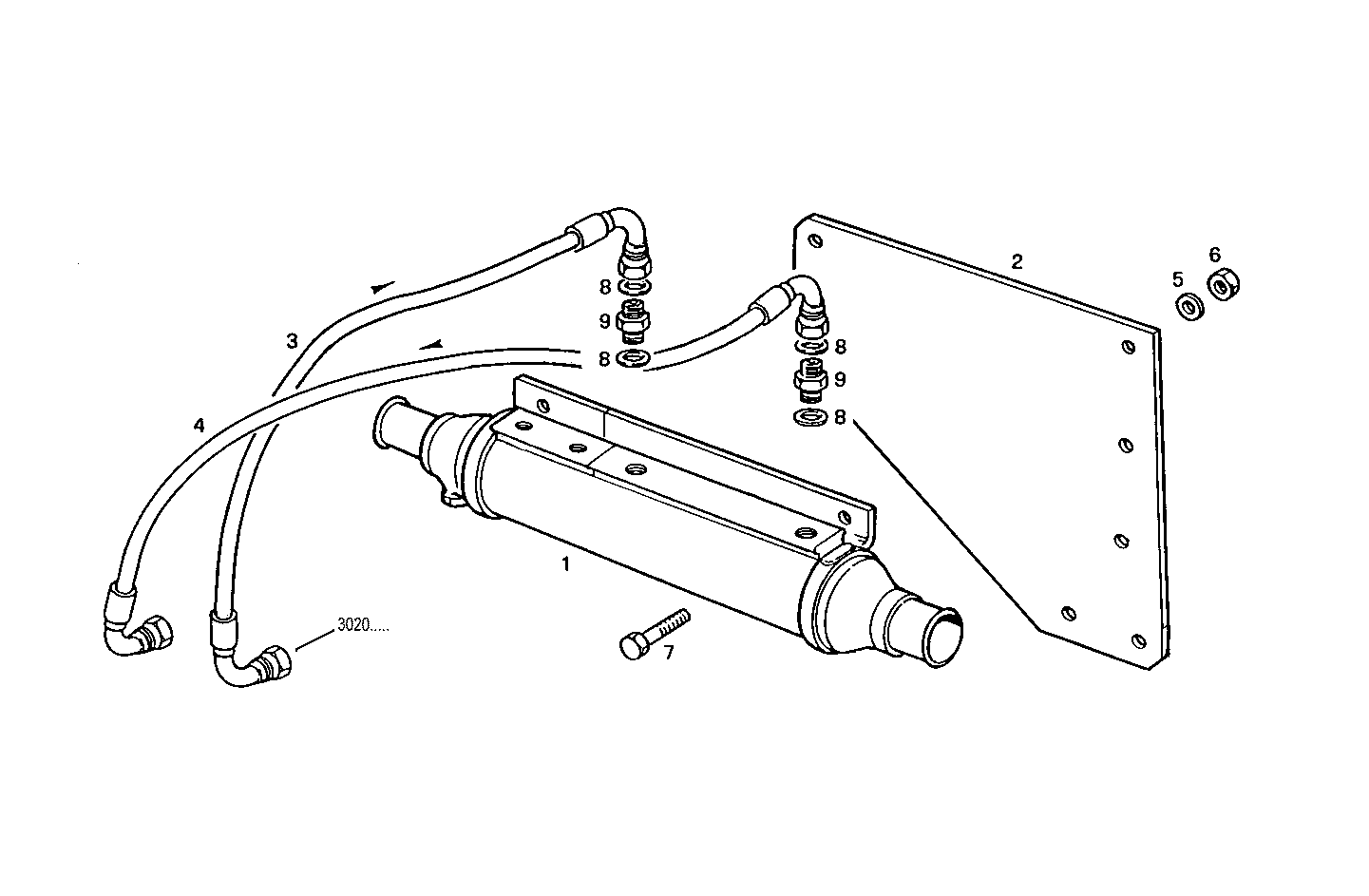

OIL - WATER HEAT EXCHANGER
Assembly ID: 3100.092
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8030670 | OIL/WATER HEAT EXCHANGER | 1 | ||
| 2 | 8030835 | SUPPORT | 1 | ||
| 3 | 4935490 | OIL LINE | 1 | ||
| 4 | 4935779 | HOSE | 1 | ||
| 5 | 17089474 | SPRING WASHER | 4 | ||
| 6 | 17037931 | HEXAGON NUT | 4 | ||
| 7 | 16605624 | HEXAGON BOLT | 4 | ||
| 8 | 98429280 | SEAL GASKET | 4 | ||
| 9 | 8101073 | PIPE SOCKET | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8140SRM15.11 | 8140SRM15 | view |
