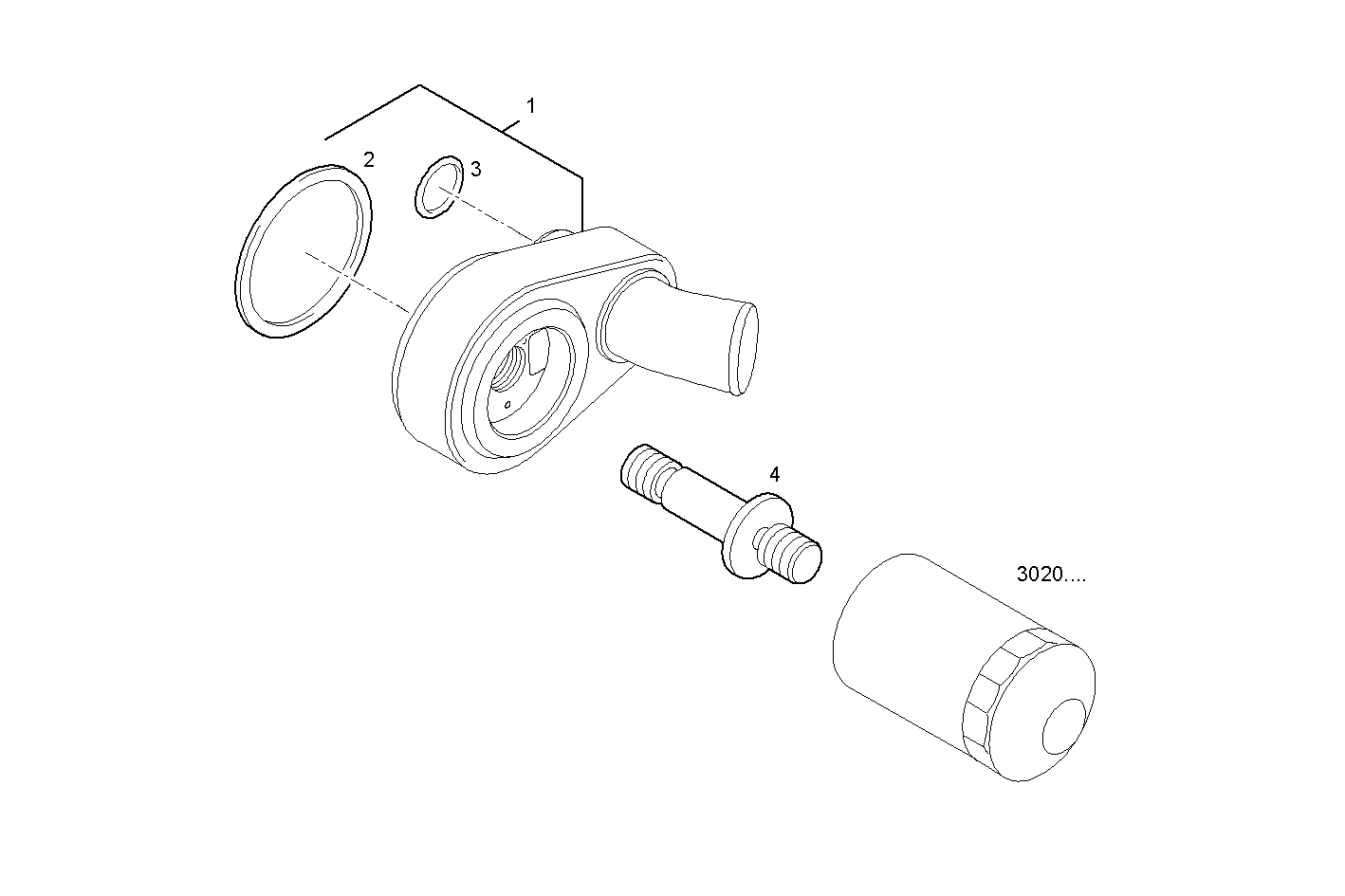

OIL - WATER HEAT EXCHANGER
Assembly ID: 3100.140
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 500376693 | HEAT EXCHANGER | 1 | ||
| 2 | 504065447 | RUBBER RING | 1 | ||
| 3 | 504065448 | O-RING | 1 | ||
| 4 | 500387283 | THREADED UNION | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F1AE0481A*A002 - C | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481B*A002 - C | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A004 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A006 - C | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A008 - C | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A005 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A006 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A007 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A005 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A007 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A009 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A010 | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481A*A002 - D | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481B*A002 - D | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A006 - D | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A008 - D | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481L*A001 | SOFIM HPI 2.3L - TIER 2 | view |
| S23ENSC24.20A001 | SOFIM HPI 2.3L - TIER 2 | view |
| F1AE0481G*A001 | SOFIM HPI 2.3L - EURO 4 | view |
| F1AE0481B*C001 | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481G*A003 | SOFIM HPI 2.3L - EURO 4 | view |
| S23ENS424.00A001 | SOFIM HPI 2.3L - EURO 4 | view |
| S23ENS424.00A002 | SOFIM HPI 2.3L - EURO 4 | view |
| F1AE0481G*A009 | SOFIM HPI 2.3L - EURO 4 | view |
| S23ENS424.20A001 | SOFIM HPI 2.3L - EURO 4 | view |
| S23ENS424.20A002 | SOFIM HPI 2.3L - EURO 4 | view |
| S23ENS424.20A003 | SOFIM HPI 2.3L - EURO 4 | view |
| S23ENS424.20A004 | SOFIM HPI 2.3L - EURO 4 | view |
| S23ENS424.20A008 | SOFIM HPI 2.3L - EURO 4 | view |
| F1AE0481G*A007 | SOFIM HPI 2.3L - EURO 4 | view |
| S23ENS424.30A004 | SOFIM HPI 2.3L - EURO 4 | view |
| F1AE0481F*A101 | SOFIM HPI 2.3L - EURO 4 | view |
