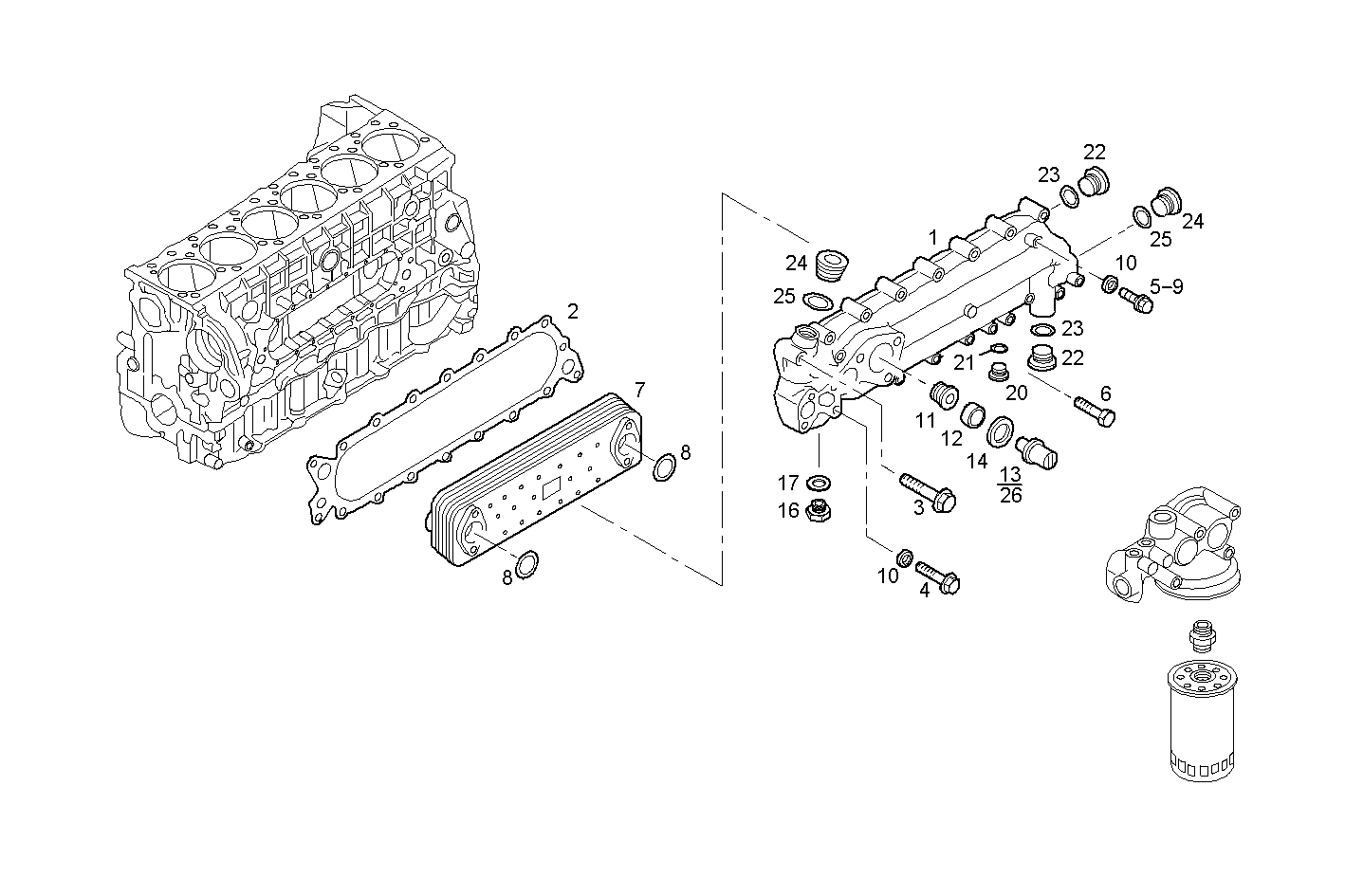

| 1 |
504140957
|
HEAT EXANGER BODY
|
|
1
|
|
| 2 |
504045796
|
FLAT ENGINE GASKET
|
|
1
|
|
| 3 |
16586725
|
HEXAGON BOLT
|
|
14
|
|
| 4 |
16586925
|
HEXAGON BOLT
|
|
1
|
|
| 5 |
16598224
|
HEXAGON BOLT
|
|
2
|
|
| 6 |
16588624
|
HEXAGON BOLT
|
|
2
|
|
| 7 |
500301692
|
OIL COOLER
|
|
1
|
|
|
5801389775 |
OIL COOLER |
|
1 |
|
| 8 |
17283581
|
O-RING
|
|
2
|
|
| 9 |
16586625
|
HEXAGON BOLT
|
|
3
|
|
| 10 |
99489014
|
SEAL GASKET
|
|
4
|
|
|
5801560867 |
SEAL GASKET |
|
4 |
|
| 11 |
99433799
|
THREADED PLUG
|
|
1
|
|
| 12 |
99433798
|
SPACING BAR
|
|
1
|
|
| 13 |
98498322
|
VALVE
|
|
1
|
|
| 14 |
98494952
|
GASKET
|
|
1
|
|
| 16 |
10300611
|
LOCK PLUG
|
|
1
|
|
|
16992315 |
LOCK PLUG |
|
1 |
|
| 17 |
99489018
|
SEAL GASKET
|
|
1
|
|
| 20 |
16992415
|
THREADED PLUG
|
|
1
|
|
| 21 |
99489019
|
WASHER
|
|
1
|
|
|
5801560870 |
WASHER |
|
1 |
|
| 22 |
16993711
|
THREADED PLUG
|
|
2
|
|
| 23 |
99469380
|
SEAL GASKET
|
|
2
|
|
|
5801560861 |
SEAL GASKET |
|
2 |
|
| 24 |
16993511
|
LOCK PLUG
|
|
1
|
|
| 25 |
99432291
|
SEAL GASKET
|
|
1
|
|
|
5801560863 |
SEAL GASKET |
|
1 |
|
| 26 |
504117511
|
VALVE
|
|
1
|
|
