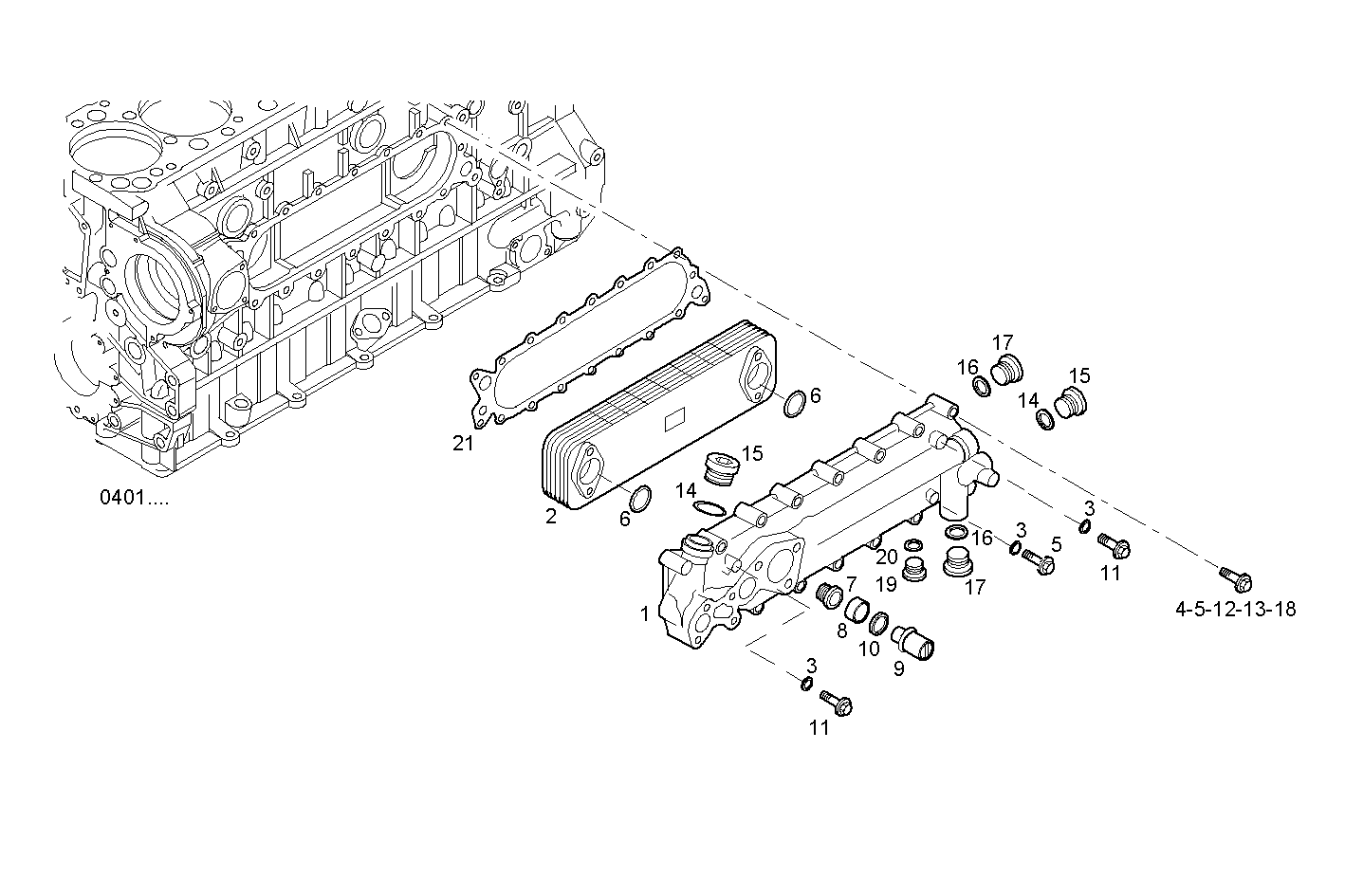

OIL - WATER HEAT EXCHANGER

Assembly ID: 3150.009

OIL - WATER HEAT EXCHANGER

Parts

# Part number Description Note Quantity
1 504106451 HEAT EXANGER BODY 1
2 98498467 OIL COOLER 1
3 98474303 WASHER 4
4 16673735 HEXAGON BOLT 3
5 16586925 HEXAGON BOLT 2
6 17283581 O-RING 2
7 99433799 THREADED PLUG 1
8 99433798 SPACING BAR 1
9 98498322 VALVE 1
10 98494952 GASKET 1
11 16586625 HEXAGON BOLT 3
12 16598224 HEXAGON BOLT 2
13 16586725 HEXAGON BOLT 11
14 99432291 SEAL GASKET 2
15 16993511 LOCK PLUG 2
16 99469380 SEAL GASKET 2
17 16993711 THREADED PLUG 2
18 504064192 HEXAGON BOLT 2
19 16992415 THREADED PLUG 1
20 99489019 WASHER 1
21 504045796 FLAT ENGINE GASKET 1
