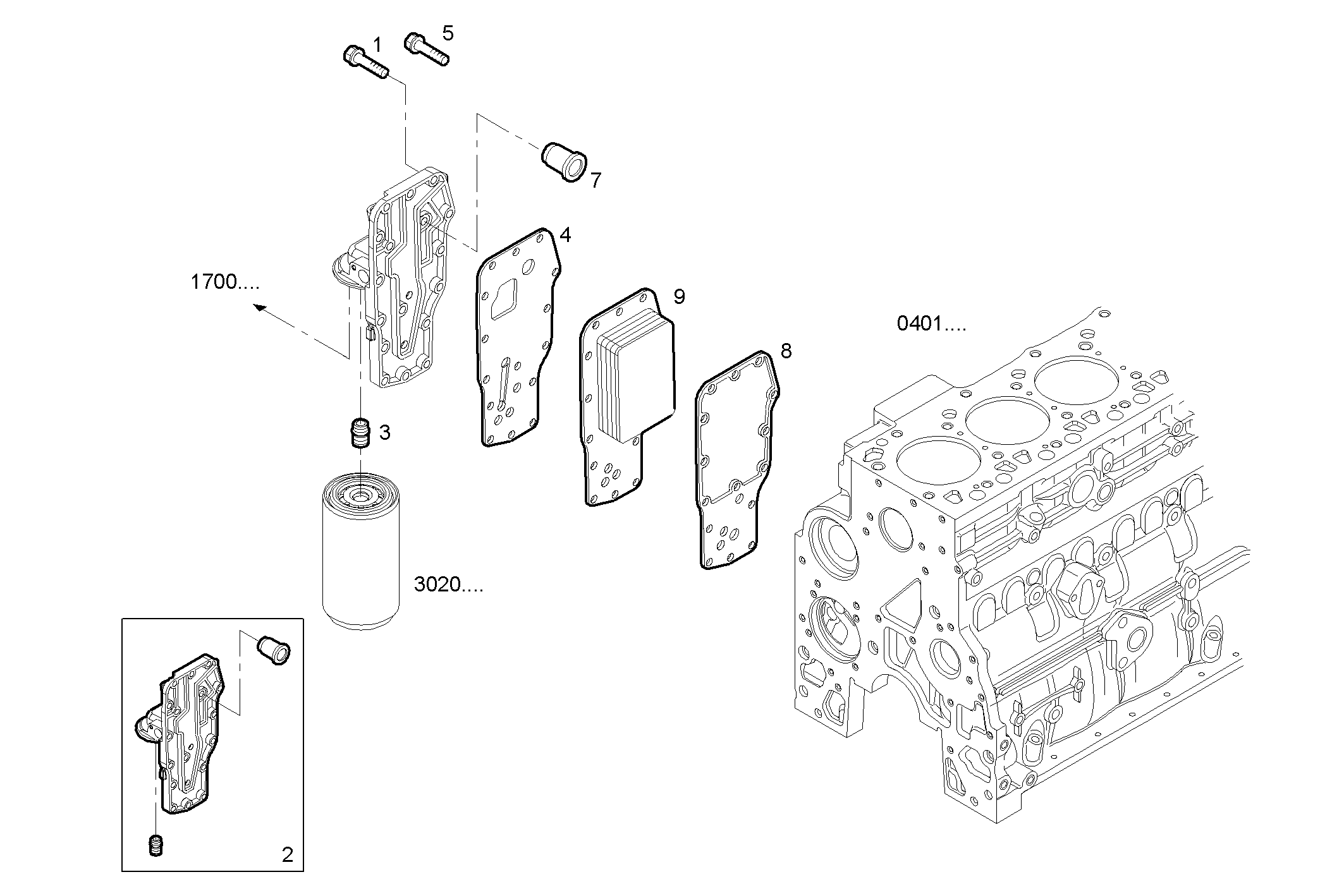

OIL - WATER HEAT EXCHANGER
Assembly ID: 3150.021
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4899019 | HEXAGON BOLT | 13 | ||
| 2 | 2830675 | OIL FILTER SUPPORT | 1 | ||
| 3 | 4893391 | THREADED UNION | 1 | ||
| 4 | 2831317 | FLAT ENGINE GASKET | 1 | ||
| 5 | 16598325 | HEXAGON BOLT | 2 | ||
| 7 | 4896410 | VALVE | 1 | ||
| 8 | 2830559 | FLAT ENGINE GASKET | 1 | ||
| 9 | 504047629 | OIL COOLER | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4CE9684K*J604 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684L*J602 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684N*J600 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684L*J601 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684P*J600 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684J*J604 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684H*J602 | NEF 6 mechanic. - TIER 3 | view |
