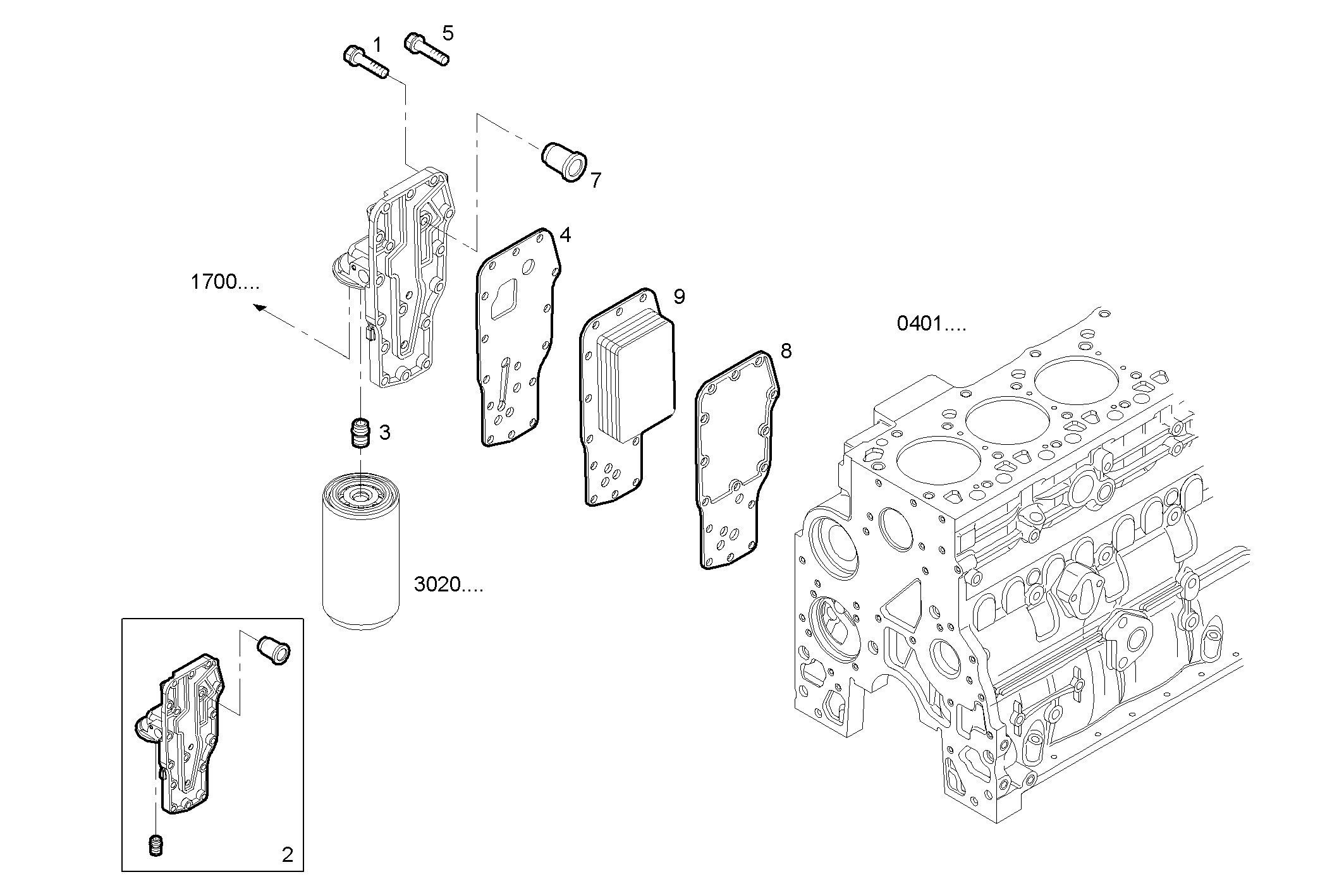

OIL - WATER HEAT EXCHANGER
Assembly ID: 3150.022
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4899019 | HEXAGON BOLT | 13 | ||
| 2 | 2830674 | OIL FILTER SUPPORT | 1 | ||
| 3 | 4893391 | THREADED UNION | 1 | ||
| 4 | 2831317 | FLAT ENGINE GASKET | 1 | ||
| 5 | 16598325 | HEXAGON BOLT | 2 | ||
| 7 | 4896410 | VALVE | 1 | ||
| 8 | 2830559 | FLAT ENGINE GASKET | 1 | ||
| 9 | 504047616 | OIL COOLER | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4CE0454A*D604 | NEF 4 mechanic. - TIER 2 | view |
| N45MRSD00.50A001 | NEF 4 mechanic. - TIER 2 | view |
| F4CE0454A*D606 | NEF 4 mechanic. - TIER 2 | view |
| F4CE0454C*D607 | NEF 4 mechanic. - TIER 2 | view |
| F4CE0454A*D607 | NEF 4 mechanic. - TIER 2 | view |
| F4CE0454C*D612 | NEF 4 mechanic. - TIER 3 | view |
| F4CE9454C*J601 | NEF 4 mechanic. - TIER 3 | view |
| F4CE9484M*J605 | NEF 4 mechanic. - TIER 3 | view |
| F4CE9484F*J600 | NEF 4 mechanic. - TIER 3 | view |
