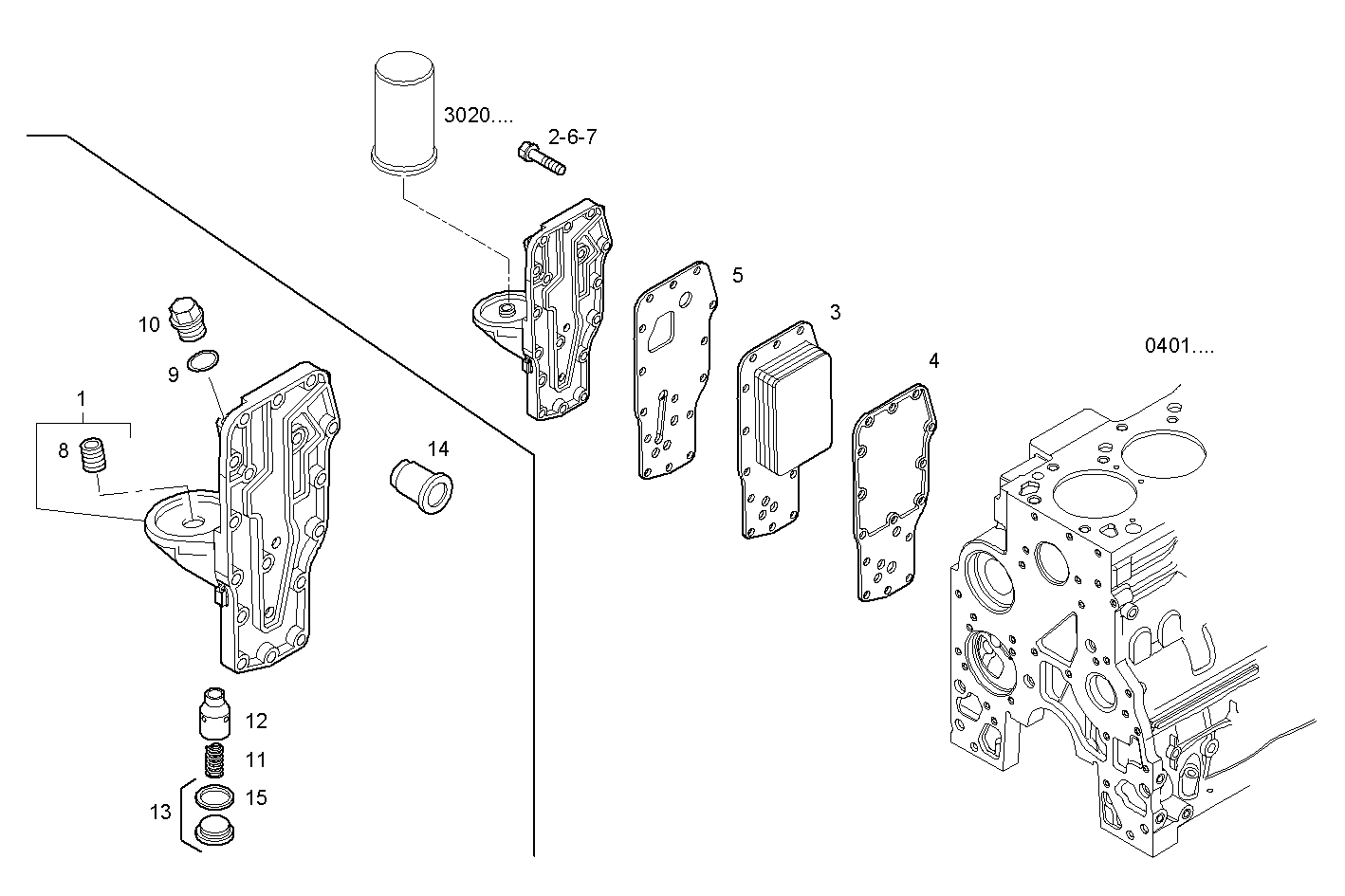

OIL - WATER HEAT EXCHANGER
Assembly ID: 3150.023
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504132320 | HEAT EXANGER BODY | 1 | ||
| 2 | 4899019 | HEXAGON BOLT | 10 | ||
| 3 | 4896819 | OIL COOLER | 1 | ||
| 4 | 2830559 | FLAT ENGINE GASKET | 1 | ||
| 5 | 2831317 | FLAT ENGINE GASKET | 1 | ||
| 6 | 4899041 | HEXAGON BOLT | 3 | ||
| 7 | 16598325 | HEXAGON BOLT | 2 | ||
| 8 | 4893391 | THREADED UNION | 1 | ||
| 9 | 4858607 | WASHER | 2 | ||
| 10 | 16992211 | THREADED PLUG | 2 | ||
| 11 | 4895045 | VALVE SPRING | 1 | ||
| 12 | 4896404 | VALVE HOUSING | 1 | ||
| 13 | 504096409 | THREADED PLUG | 1 | ||
| 14 | 4896410 | VALVE | 1 | ||
| 15 | 17916280 | O-RING | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4GE0606A*E601 | NEF 6 mechanic. | view |
| N67MNAM15.02 | NEF 6 mechanic. | view |
| N67MNAM15.32 | NEF 6 mechanic. | view |
| F4GE0686A*E600 | NEF 6 mechanic. | view |
| N67MNTM28.12 | NEF 6 mechanic. | view |
| GMNEF60M.L50E | GMNEF 6 mechanic. | view |
| GMNEF60M.A501 | GMNEF 6 mechanic. | view |
| GMNEF60M.A510 | GMNEF 6 mechanic. | view |
| GMNEF60M.A511 | GMNEF 6 mechanic. | view |
