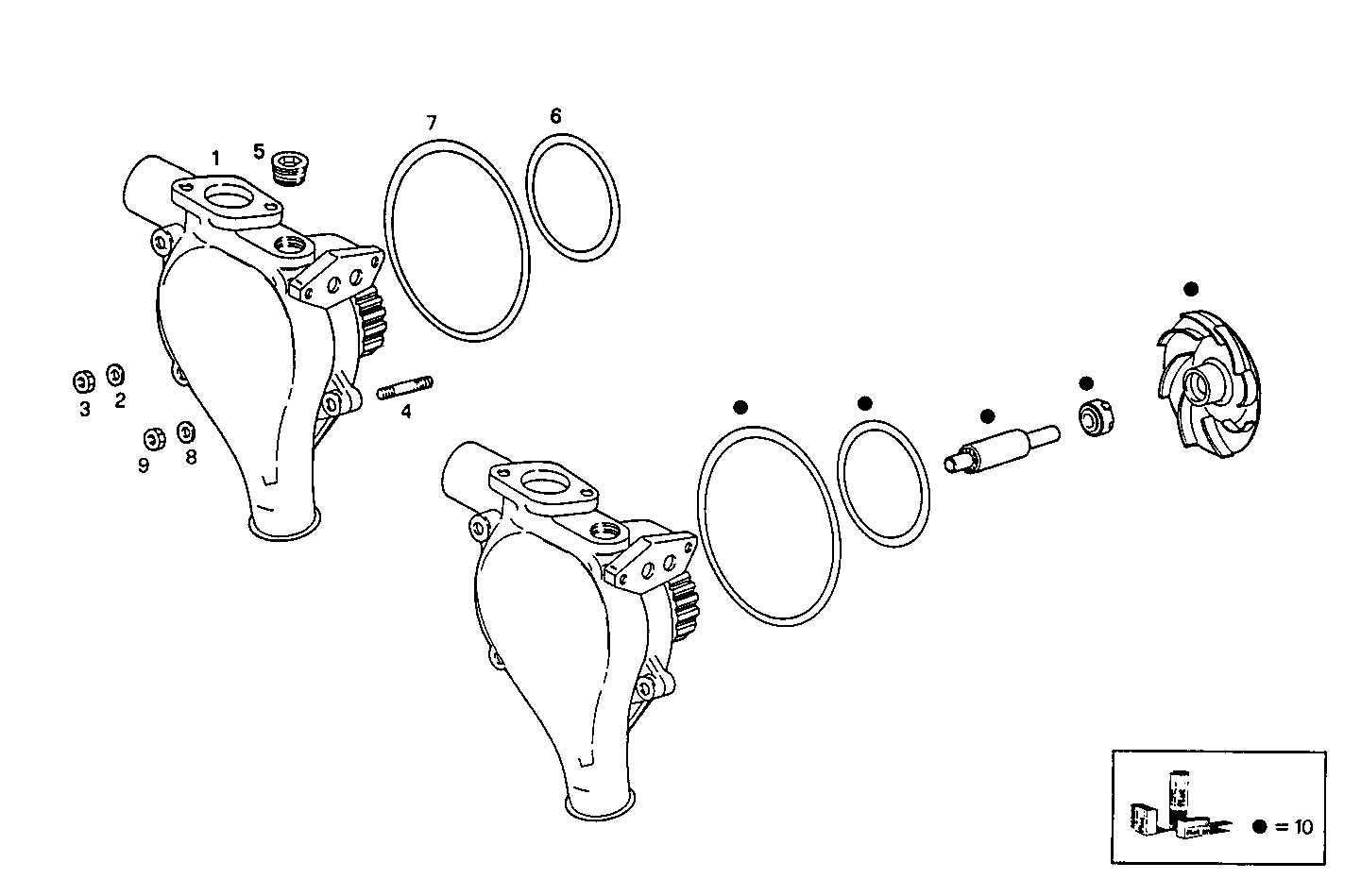

WATER PUMP
Assembly ID: 3200.028
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 99458099 | WATER PUMP | 1 | ||
| 2 | 17090174 | SPRING WASHER | 3 | ||
| 3 | 17038221 | HEXAGON NUT | 3 | ||
| 4 | 13516824 | STUD | 3 | ||
| 5 | 61582396 | THREADED PLUG | 1 | ||
| 6 | 17285281 | O-RING | 1 | ||
| 7 | 98461200 | O-RING | 1 | ||
| 8 | 17089474 | SPRING WASHER | 3 | ||
| 9 | 17037931 | HEXAGON NUT | 3 | ||
| 10 | 42530033 | WATER PUMP | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| GE8210SRi27.00A955 | GE8210SRi27 | view |
| GS8210SRi27.00 | GS8210SRi27 | view |
| GE8210G85.00A70M | GE8210G85 | view |
| GE8210G85.00A70S | GE8210G85 | view |
| GE8210SRG85.10A70E | GE8210SRG85 | view |
| GE8210SRG85.10A70M | GE8210SRG85 | view |
| GE8210SRG85.10A70S | GE8210SRG85 | view |
| GE8210SRi27.01A955 | GE8210SRi27 | view |
| GS8210SRi27.00A601 | GS8210SRi27 | view |
| 8210SRG85.10 | 8210SRG85 | view |
| 8210G85.00 | 8210G85 | view |
| 8210SRi12.01 | 8210SRi12 | view |
| 8210SRi27.00 | 8210SRi27 | view |
| 8210SRi27.01 | 8210SRi27 | view |
| 8210SM26.12 | 8210SM26 | view |
| 8210SRM36.12 | 8210SRM36 | view |
| 8210SRM38.10 | 8210SRM38 | view |
| 8210SRi27.00A550 | 8210SRi27 | view |
| 8210SRi27.00A580 | 8210SRi27 | view |
| 8210SRi27.01A550 | 8210SRi27 | view |
| 8210SRi27.01A580 | 8210SRi27 | view |
| 8210G85.00A500 | 8210G85 | view |
| 8210SRG85.10A500 | 8210SRG85 | view |
| GE8210SRi27.01N970 | GE8210SRi27 | view |
| GE8210SRi27.01R970 | GE8210SRi27 | view |
