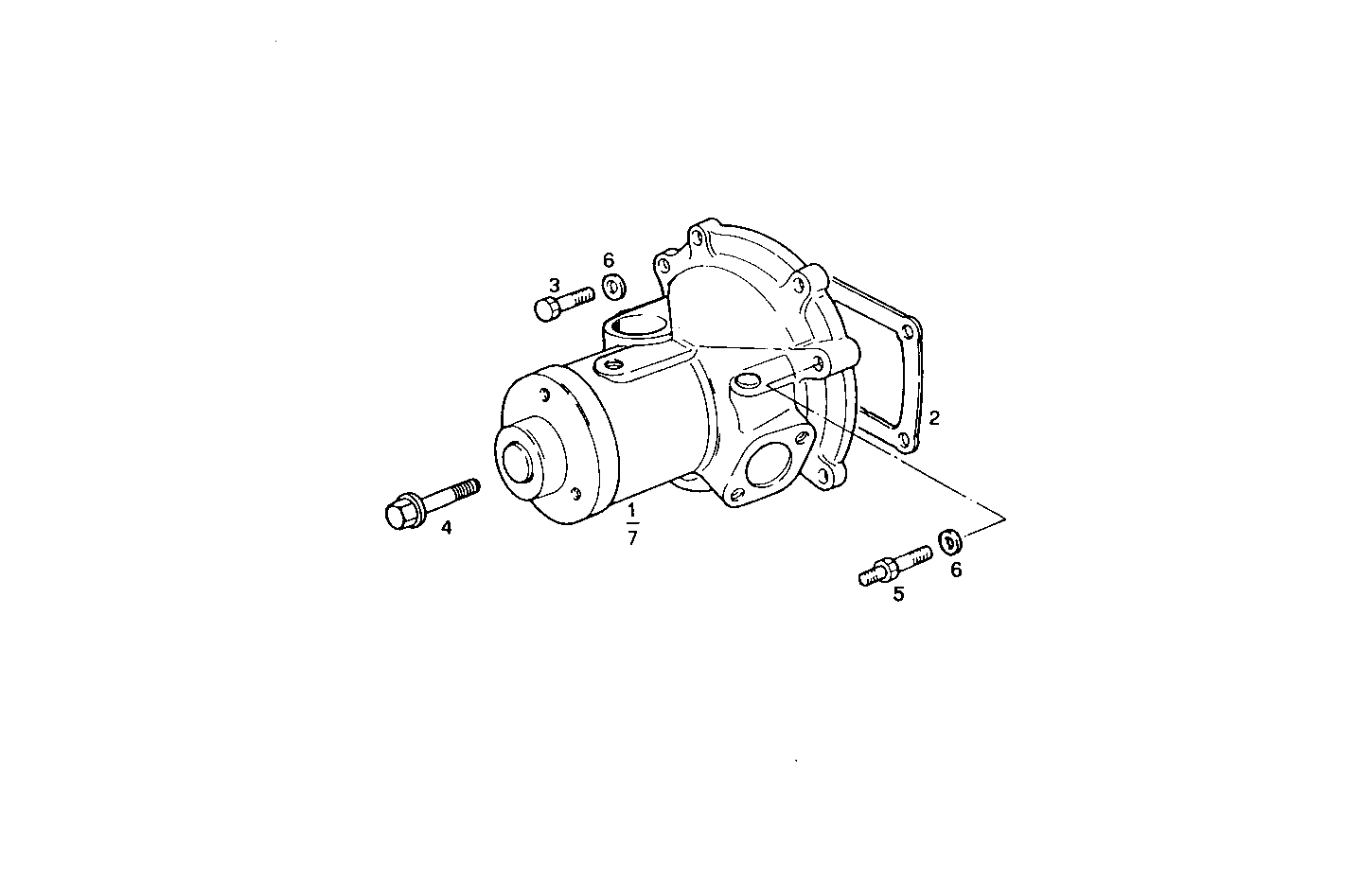

WATER PUMP
Assembly ID: 3200.038
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4813370 | WATER PUMP | 1 | ||
| 2 | 98400776 | FLAT ENGINE GASKET | 1 | ||
| 3 | 15888721 | HEXAGON BOLT | 2 | ||
| 4 | 16288624 | HEXAGON BOLT | 1 | ||
| 5 | 4792238 | STUD | 1 | ||
| 6 | 17090174 | SPRING WASHER | 3 | ||
| 7 | 98497117 | WATER PUMP | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8041C05.06A018 | 8041C05 | view |
| 8041C05.06A019 | 8041C05 | view |
| 8041C05.05 | 8041C05 | view |
| 8041C05.06 | 8041C05 | view |
| 8061SRM25.10 | 8061SRM25 | view |
| 8061SRM30.10 | 8061SRM30 | view |
| 8061SM20.30 | 8061SM20 | view |
| 8041M09.01 | 8041M09 | view |
| 8041M09.40 | 8041M09 | view |
| 8061SM20.12 | 8061SM20 | view |
| 8061SM20.32 | 8061SM20 | view |
| 8061SM20.42 | 8061SM20 | view |
| 8061SRM25.12 | 8061SRM25 | view |
| 8061SRM25.42 | 8061SRM25 | view |
| 8061SRM33.10 | 8061SRM33 | view |
| 8061SRM33.40 | 8061SRM33 | view |
| 8041M09.42 | 8041M09 | view |
| 8041M09.02 | 8041M09 | view |
| 8061SM16.11 | 8061SM16 | view |
| 8061SRM25.13 | 8061SRM25 | view |
| 8061SRM25.33 | 8061SRM25 | view |
| 8061SRM33.12 | 8061SRM33 | view |
| 8061SRM33.42 | 8061SRM33 | view |
