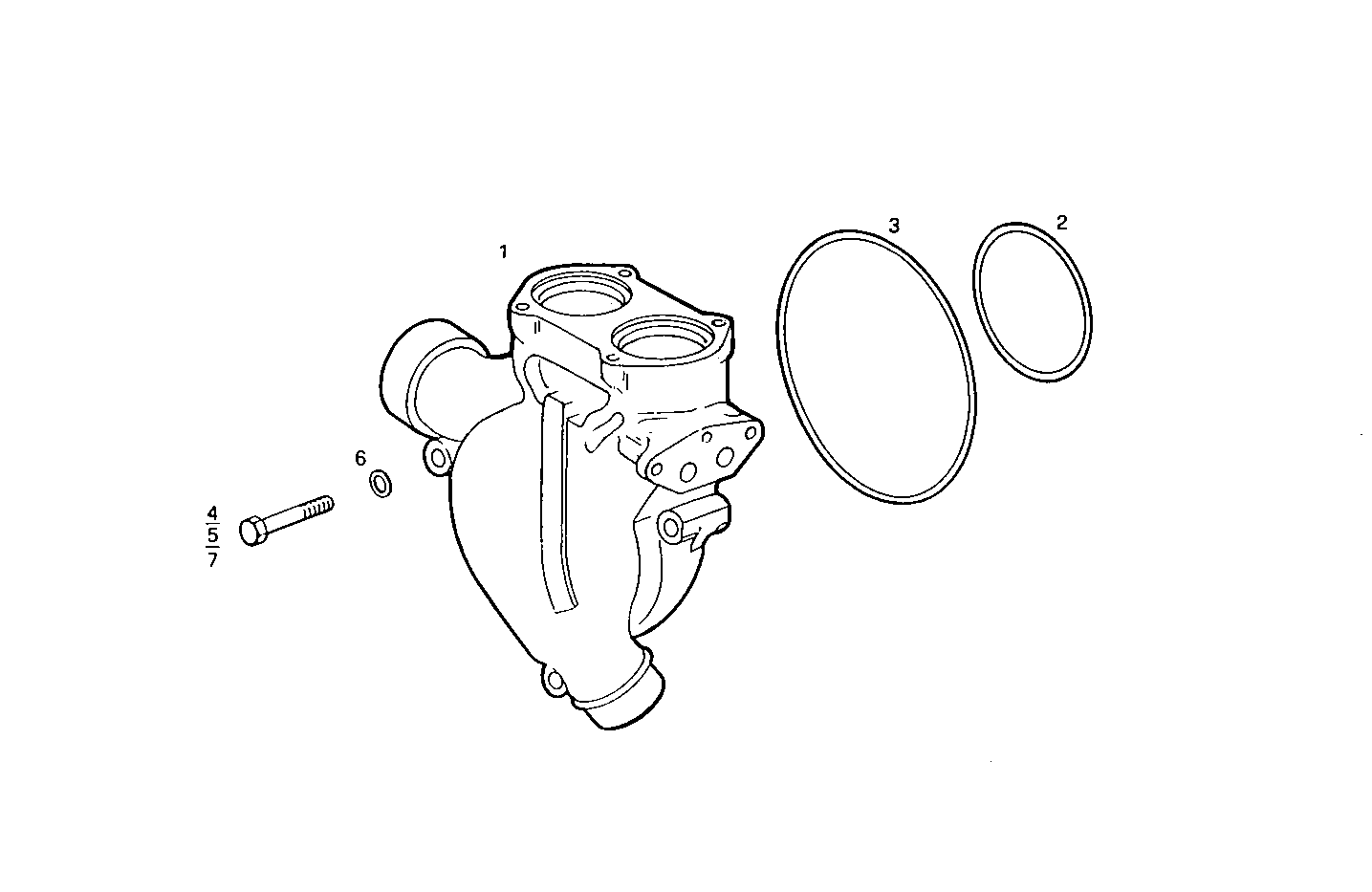

WATER PUMP
Assembly ID: 3200.048
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 61321400 | WATER PUMP | 1 | ||
| 2 | 17285281 | O-RING | 1 | ||
| 3 | 98461200 | O-RING | 1 | ||
| 4 | 11343824 | HEXAGON BOLT | 1 | ||
| 5 | 15971324 | SCREW | 1 | ||
| 6 | 11198374 | SPRING WASHER | 3 | ||
| 7 | 15972224 | HEXAGON BOLT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8460SRi10.00 | 8460SRi10 | view |
| 8460SRi11.00 | 8460SRi11 | view |
| 8460SRi11.00A004 | 8460SRi11 | view |
| 8460SRi10.00A016 | 8460SRi10 | view |
| 8460SRE10.00 | 8460SRE10 | view |
| 8460SRE12.00 | 8460SRE12 | view |
| 8460SRi10.00A020 | 8460SRi10 | view |
| 8460SRE10.00A003 | 8460SRE10 | view |
