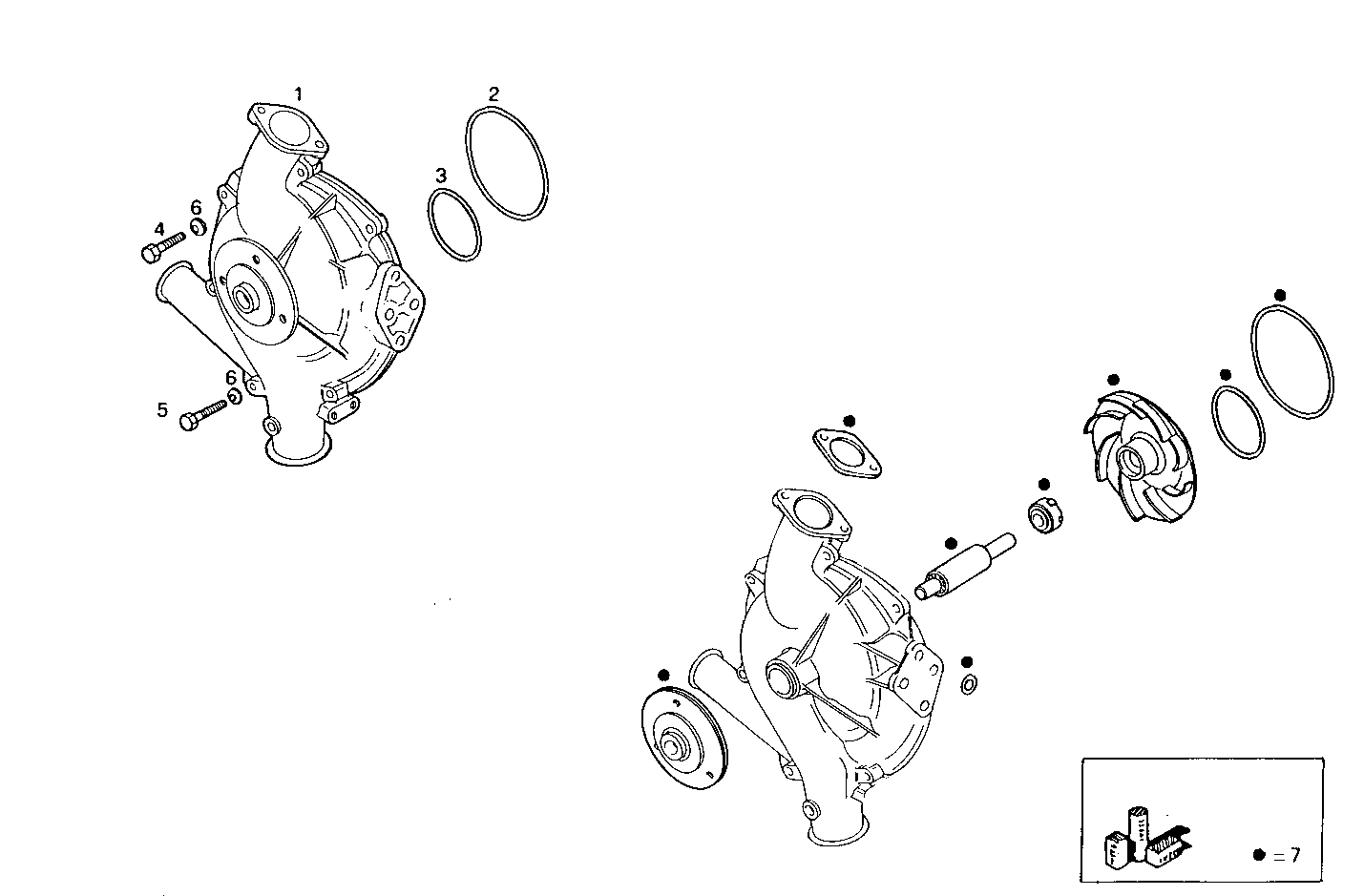

WATER PUMP
Assembly ID: 3200.076
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4812406 | WATER PUMP | 1 | ||
| 2 | 14467181 | O-RING | 1 | ||
| 3 | 14459181 | O-RING | 1 | ||
| 4 | 11343721 | HEXAGON BOLT | 1 | ||
| 5 | 15971921 | HEXAGON BOLT | 3 | ||
| 6 | 17090274 | WASHER | 4 | ||
| 7 | 1904768 | KIT-WATER PUMP | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8280SRC21.00 | 8280SRC21 | view |
| 8280SRC21.10 | 8280SRC21 | view |
| 8280SRC20.00 | 8280SRC20 | view |
