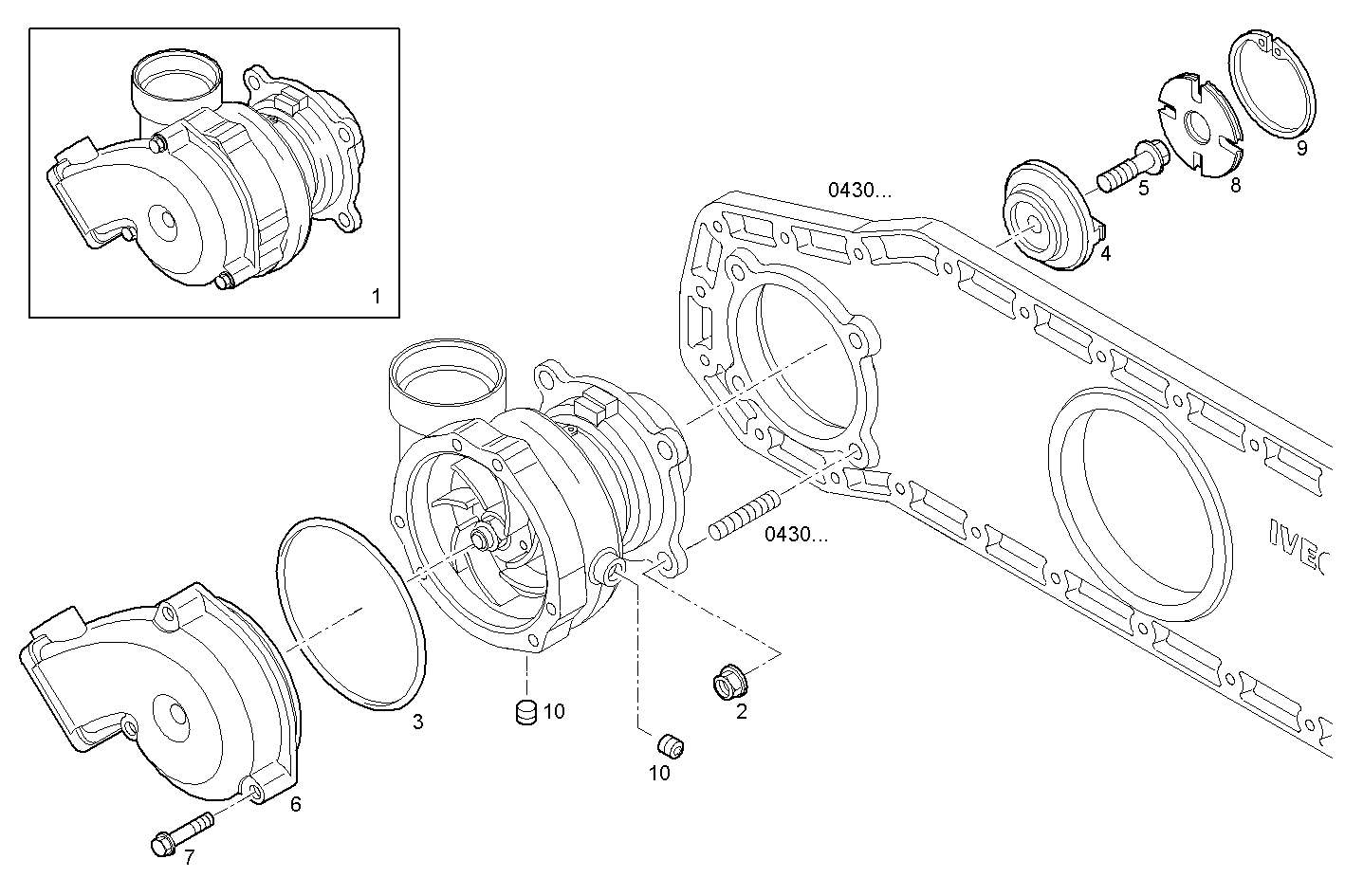

WATER PUMP
Assembly ID: 3200.116
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504217262 | WATER PUMP | 1 | ||
| 2 | 17965835 | HEXAGON NUT | 4 | ||
| 3 | 17292781 | O-RING | 1 | ||
| 4 | 504103434 | FLANGE | 1 | ||
| 5 | 504103480 | SCREW | 1 | ||
| 6 | 4782578 | COVER | 1 | ||
| 7 | 16587724 | HEXAGON BOLT | 3 | ||
| 8 | 504043231 | FLANGE | 1 | ||
| 9 | 504061484 | SPRING LOCKWASHER | 1 | ||
| 10 | 16997211 | LOCK PLUG | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| FVQE2883X*A200 | VECTOR 8 | view |
| PPVZ2883X*Q400 | POWER PACK | view |
| PPVZ2883X*Q440 | POWER PACK | view |
