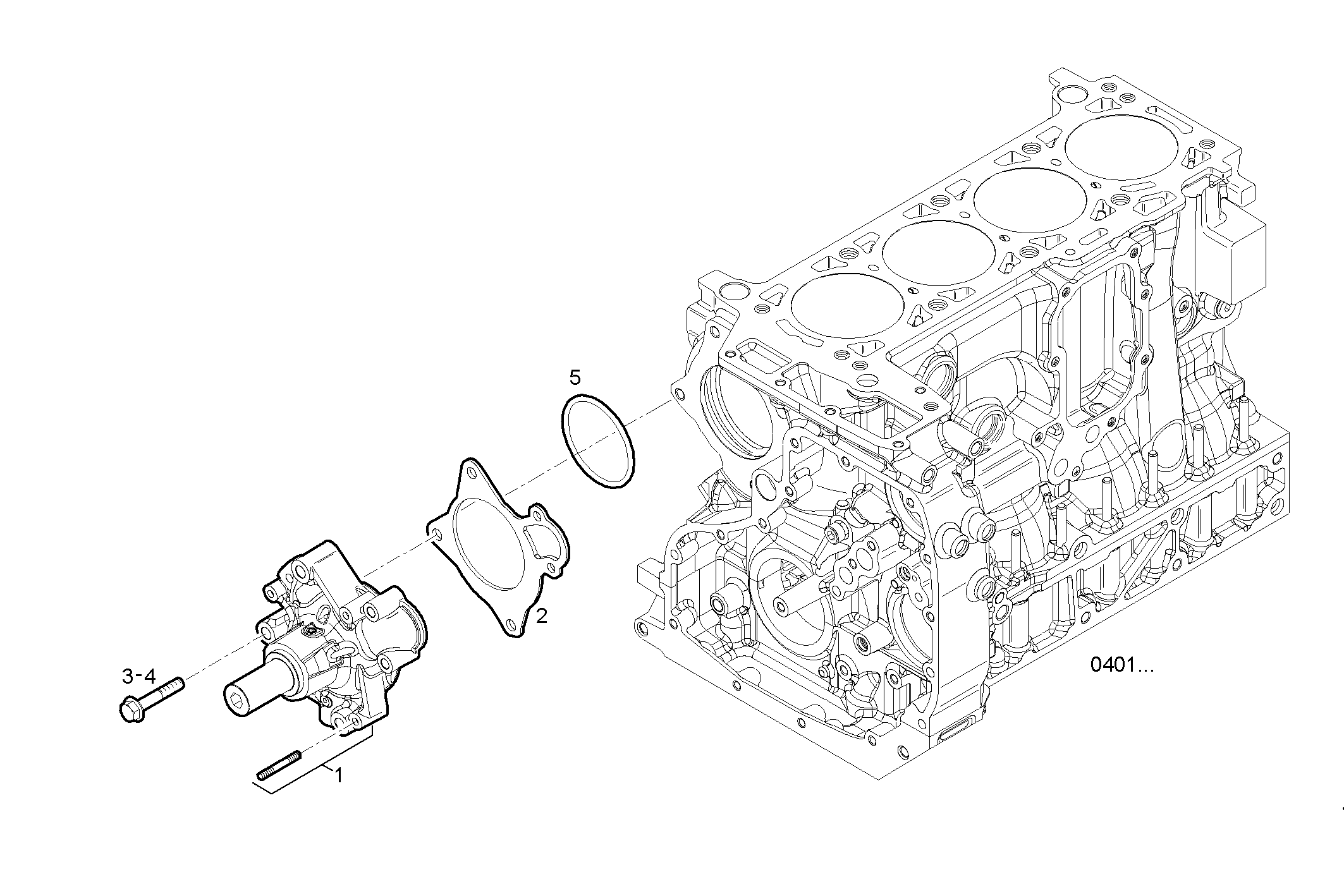

WATER PUMP
Assembly ID: 3201.004
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504113544 | WATER PUMP | 1 | ||
| 2 | 504080013 | FLAT ENGINE GASKET | 1 | ||
| 3 | 16587724 | HEXAGON BOLT | 3 | ||
| 4 | 16586825 | HEXAGON BOLT | 2 | ||
| 5 | 17285681 | O-RING | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F1CE0481B*A001 | SOFIM HPI 3.0L - EURO 3 | view |
| F1CE0481F*A001 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.10P002 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0441A*A003 | SOFIM HPI 3.0L CNG | view |
| F1CE0481F*C503 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENTG20.00A002 | SOFIM HPI 3.0L CNG | view |
| F1CE0481F*C001 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.30A001 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0481H*C003 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT425.10A001 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.91L003 | SOFIM HPI 3.0L - EURO 4 | view |
