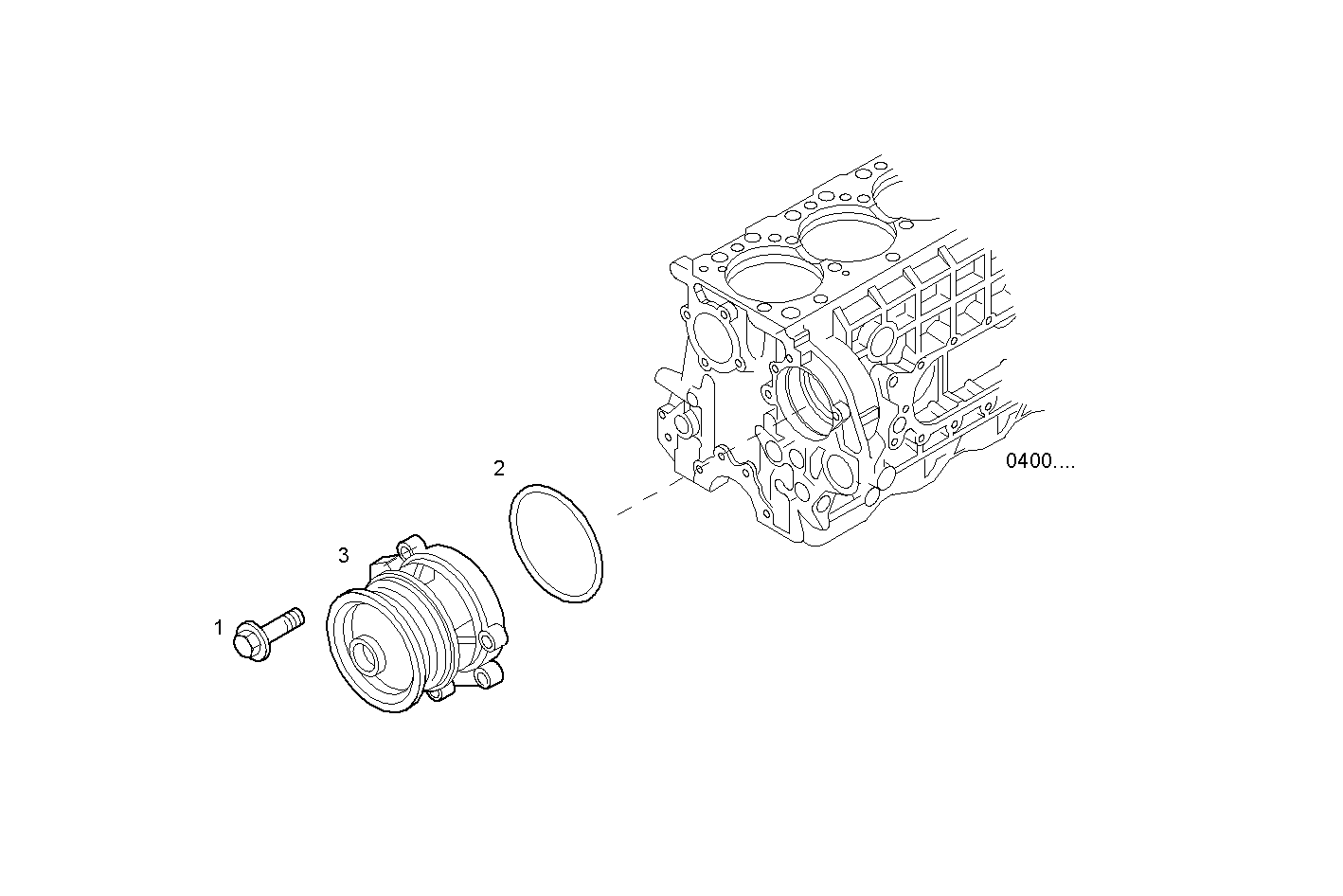

WATER PUMP
Assembly ID: 3201.010
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 16586325 | HEXAGON BOLT | 4 | ||
| 2 | 17292081 | O-RING | 1 | ||
| 3 | 504102491 | WATER PUMP | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3BE0684G*E901 | CURSOR 13 - TIER 3 | view |
| F3BE0684H*E902 | CURSOR 13 - TIER 3 | view |
| F3AE0684P*E904 | CURSOR 10 - TIER 3 | view |
| F3BE0684H*E901 | CURSOR 13 - TIER 3 | view |
| F3CE0684B*E003 | CURSOR 13 TCD - TIER 3 | view |
| F3BE0684Q*E901 | CURSOR 13 - TIER 3 | view |
| F3BE0684R*E901 | CURSOR 13 - TIER 3 | view |
| F3BE0684Q*E905 | CURSOR 13 - TIER 3 | view |
| F3BE0684R*E905 | CURSOR 13 - TIER 3 | view |
| F3AE0684K*E904 | CURSOR 10 - TIER 3 | view |
| F3CE0684B*E005 | CURSOR 13 TCD - TIER 3 | view |
| F3BE0684Q*E902 | CURSOR 13 - TIER 3 | view |
