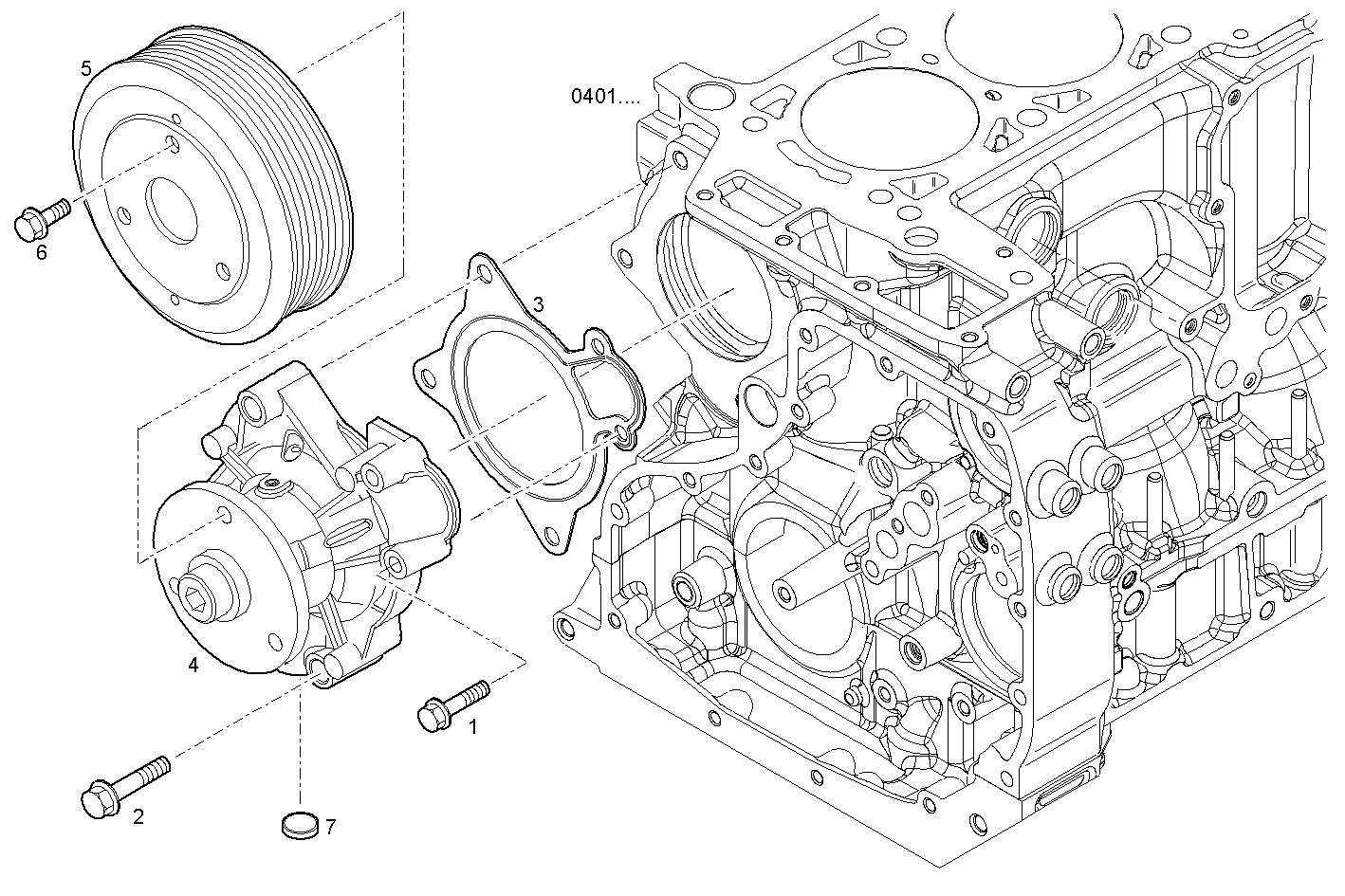

WATER PUMP
Assembly ID: 3201.026
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 16586825 | HEXAGON BOLT | 2 | ||
| 2 | 16587724 | HEXAGON BOLT | 3 | ||
| 3 | 504080013 | FLAT ENGINE GASKET | 1 | ||
| 4 | 504320901 | WATER PUMP | 1 | ||
| 5 | 504371381 | WATER PUMP PULLEY | 1 | ||
| 6 | 16586225 | HEXAGON BOLT | 3 | ||
| 7 | 16988301 | LOCK PLUG | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F1CE3481F*D003 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481F*D002 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481F*D001 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481F*D013 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481F*D012 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481F*D011 | SOFIM HPI 3.0L - EURO 5 | view |
