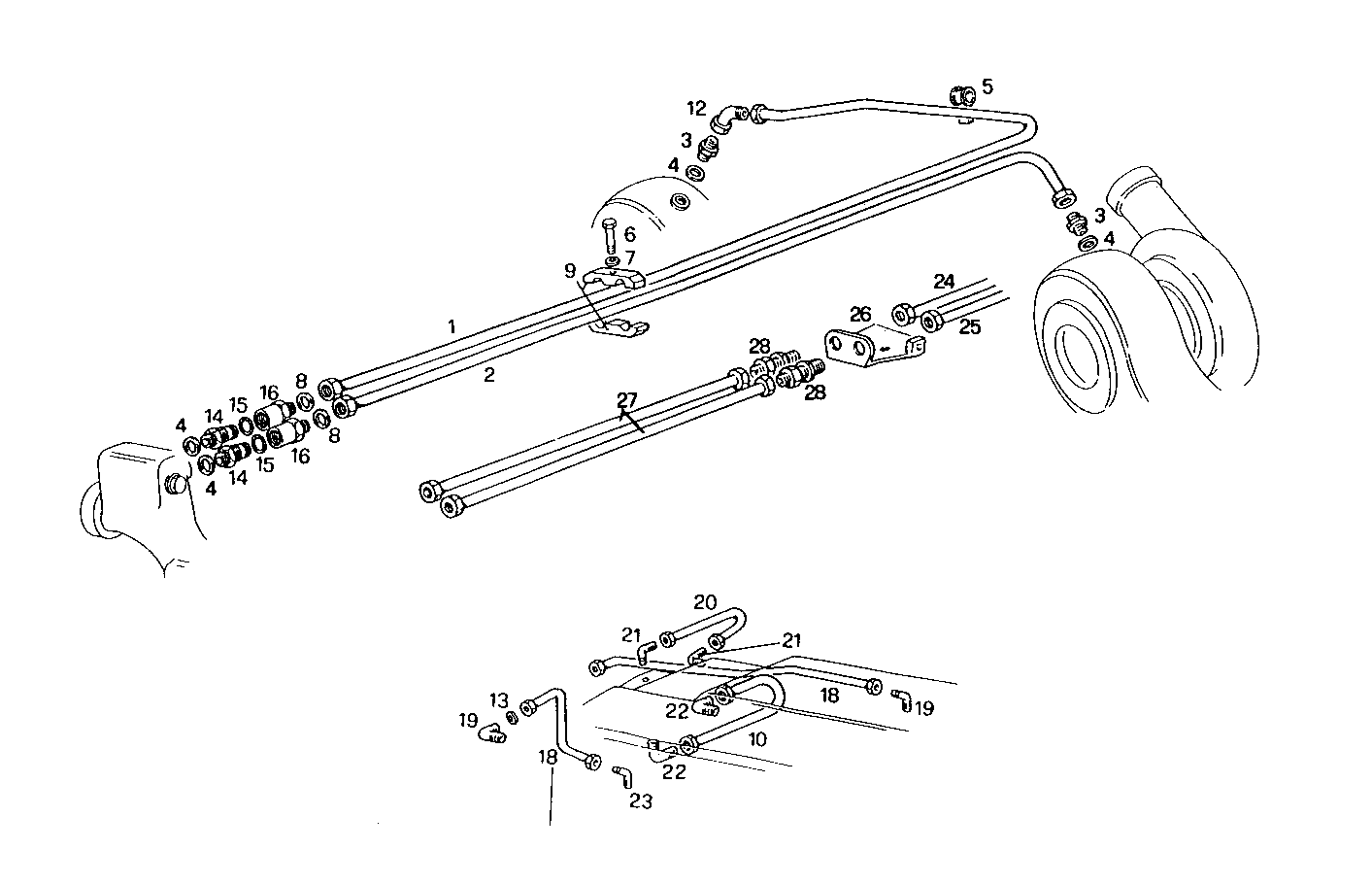

WATER LINES

Parts

#	Part number	Description	Quantity
1	8008218	WATER PIPE	1
2	8008217	WATER PIPE	1
3	8110943	PIPE SOCKET	2
4	98429282	SEAL GASKET	4
5	8111710	CLIP	2
6	16605624	HEXAGON BOLT	1
	16605635	HEXAGON BOLT	1
7	17089474	SPRING WASHER	1
8	8024652	O-RING	4
9	8008215	CLAMP	2
10	8110664	WATER PIPE	1
12	16526514	ELBOW COUPLING	1
13	8024645	O-RING	2
14	8007520	PIPE SOCKET	2
15	17282181	O-RING	2
16	8007521	PIPE SOCKET	2
18	8112009	WATER PIPE	1
19	8112120	PIPE SOCKET	1
20	8111315	WATER PIPE	1
21	8111313	PIPE SOCKET	2
22	8113790	PIPE SOCKET	1
23	8112247	PIPE SOCKET	1
	FPT8112247	PIPE SOCKET	1
24	8111252	WATER PIPE	1
25	8111251	WATER PIPE	1
26	8111256	RETAINER	1
27	8111253	WATER PIPE	2
28	8111255	PIPE SOCKET	2
