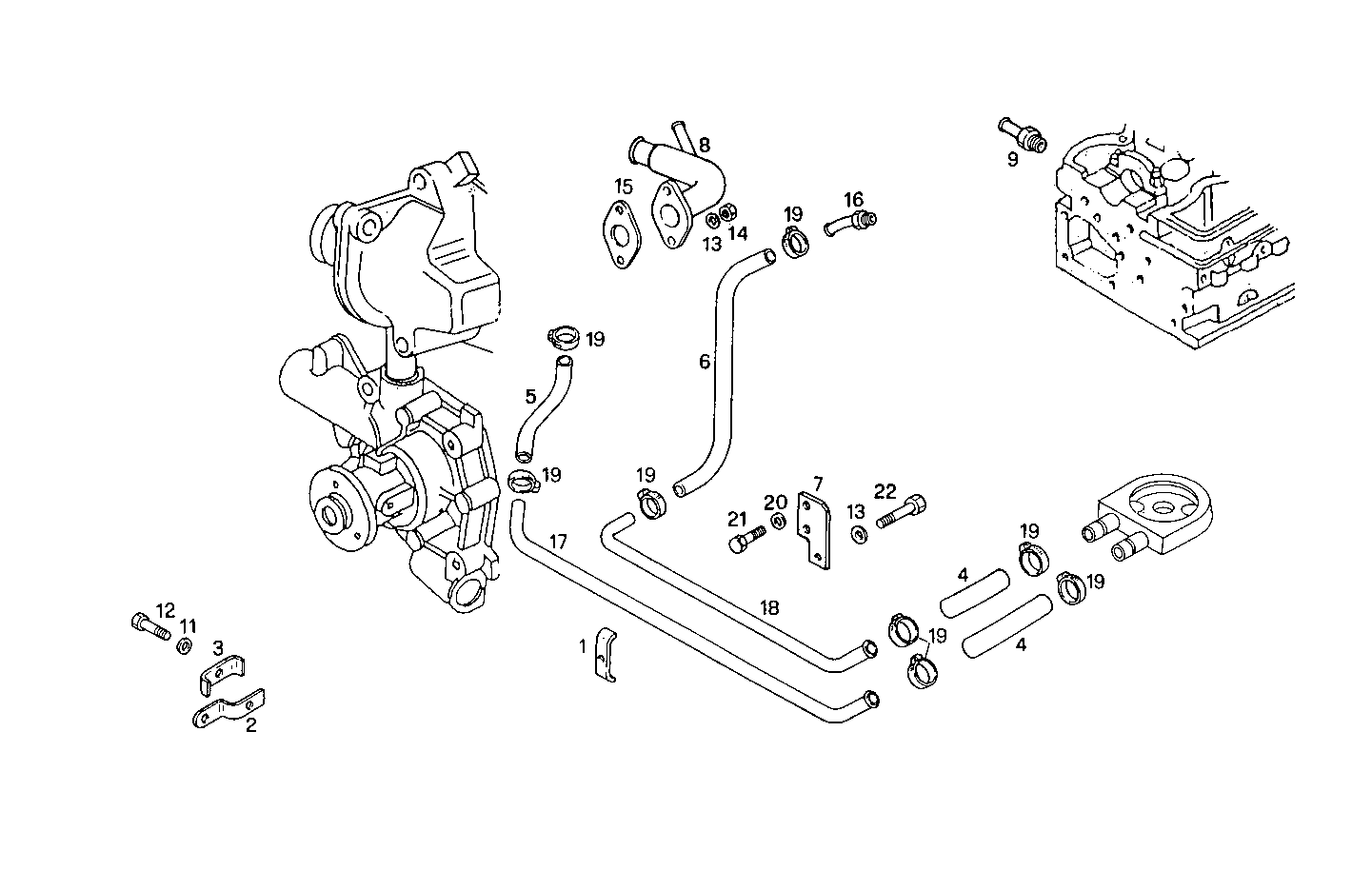

| 1 |
4852221
|
RETAINER
|
|
1
|
|
| 2 |
4852220
|
RETAINER
|
|
1
|
|
| 3 |
4852223
|
RETAINER
|
|
1
|
|
| 4 |
4852224
|
WATER HOSE
|
|
2
|
|
| 5 |
4852225
|
WATER HOSE
|
|
1
|
|
| 6 |
98495097
|
WATER HOSE
|
|
1
|
|
| 7 |
4852219
|
RETAINER
|
|
2
|
|
| 8 |
98443322
|
WATER PIPE
|
|
1
|
|
| 9 |
4861321
|
THREADED UNION
|
|
1
|
|
| 11 |
11194774
|
WASHER
|
|
1
|
|
| 12 |
10902721
|
HEXAGON BOLT
|
|
1
|
|
| 13 |
17089474
|
SPRING WASHER
|
|
4
|
|
| 14 |
17037931
|
HEXAGON NUT
|
|
2
|
|
| 15 |
98430478
|
FLAT ENGINE GASKET
|
|
1
|
|
| 16 |
98433822
|
CONNECTION PIPE
|
|
1
|
|
| 17 |
99482735
|
WATER PIPE
|
|
1
|
|
| 18 |
98434054
|
WATER PIPE
|
|
1
|
|
| 19 |
98463347
|
CLIP
|
|
8
|
|
|
18088392 |
CLIP |
|
8 |
|
| 20 |
11198574
|
WASHER
|
|
2
|
|
|
17090074 |
WASHER |
|
2 |
|
| 21 |
15004021
|
HEXAGON BOLT
|
|
2
|
|
| 22 |
16605824
|
HEXAGON BOLT
|
|
1
|
|
