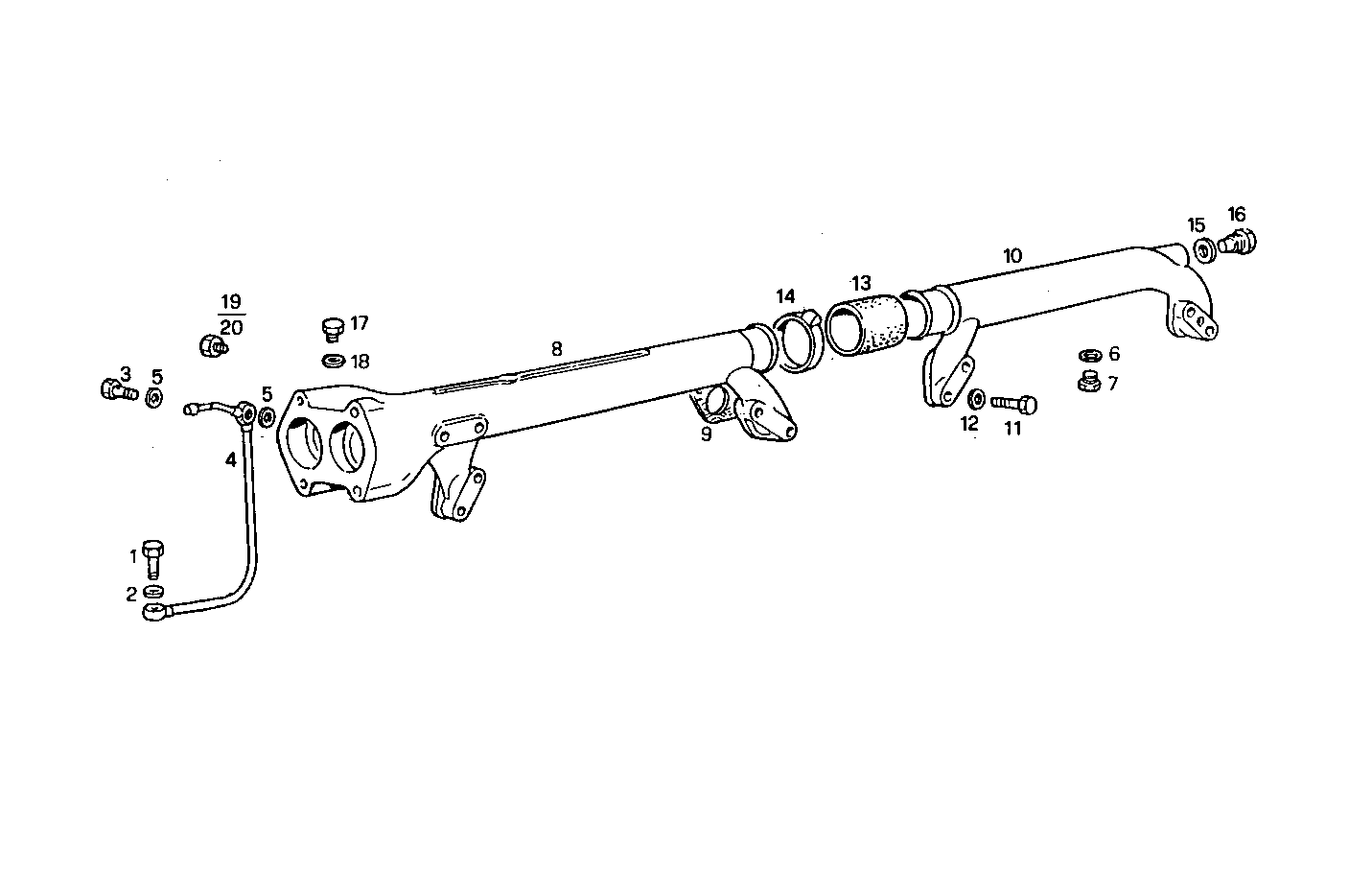

WATER LINES

Assembly ID: 3210.096-01

WATER LINES

Parts

# Part number Description Note Quantity
1 4864080 SCREW CONNECTOR 1
2 98474305 WASHER 2
3 4864082 BANJO BOLT 1
4 8007949 WATER PIPE 1
5 98474306 WASHER 2
6 98429280 SEAL GASKET 1
7 10304911 THREADED PLUG 1
8 98427299 WATER MANIFOLD 1
9 4852097 FLAT ENGINE GASKET 4
10 4616590 WATER MANIFOLD 1
11 15888734 HEXAGON BOLT 8
12 17095114 WASHER 8
13 98421377 RUBBER SLEEVE 1
14 17764992 CLIP 2
15 10260360 SEAL GASKET 1
16 4871068 PLUG 1
17 16992311 LOCK PLUG 1
18 4858608 SEAL GASKET 1
19 16997311 PLUG 1
20 16997411 THREADED PLUG 1

Applies to engines

Engine Family
GE8210SRi26.02A955 GE8210SRi26 view
GE8210SRi27.00A955 GE8210SRi27 view
GS8210SRi26.02 GS8210SRi26 view
GS8210SRi27.00 GS8210SRi27 view
GE8210SRi27.01A955 GE8210SRi27 view
GS8210SRi26.02A601 GS8210SRi26 view
GS8210SRi26.02A602 GS8210SRi26 view
GS8210SRi26.02A651 GS8210SRi26 view
GS8210SRi27.00A601 GS8210SRi27 view
8210SRi26.02 8210SRi26 view
8210SRi27.00 8210SRi27 view
8210SRi26.03 8210SRi26 view
8210SRi27.01 8210SRi27 view
8210SRi26.02A550 8210SRi26 view
8210SRi26.02A580 8210SRi26 view
8210SRi27.00A550 8210SRi27 view
8210SRi27.00A580 8210SRi27 view
8210SRi26.03A550 8210SRi26 view
8210SRi26.03A580 8210SRi26 view
8210SRi27.01A550 8210SRi27 view
8210SRi27.01A580 8210SRi27 view
8210SRi26.03A602 8210SRi26 view
8210SRi27.01A603 8210SRi27 view
GE8210SRi26.03R970 GE8210SRi26 view
GE8210SRi27.01N970 GE8210SRi27 view
GE8210SRi27.01R970 GE8210SRi27 view
GE8210SRi26.03A71M GE8210SRi26 view
